Labware accessories
epMotion
® 5070
English (EN)
52
8.1.6.2 Setting the Reservoir Rack module to vessel height

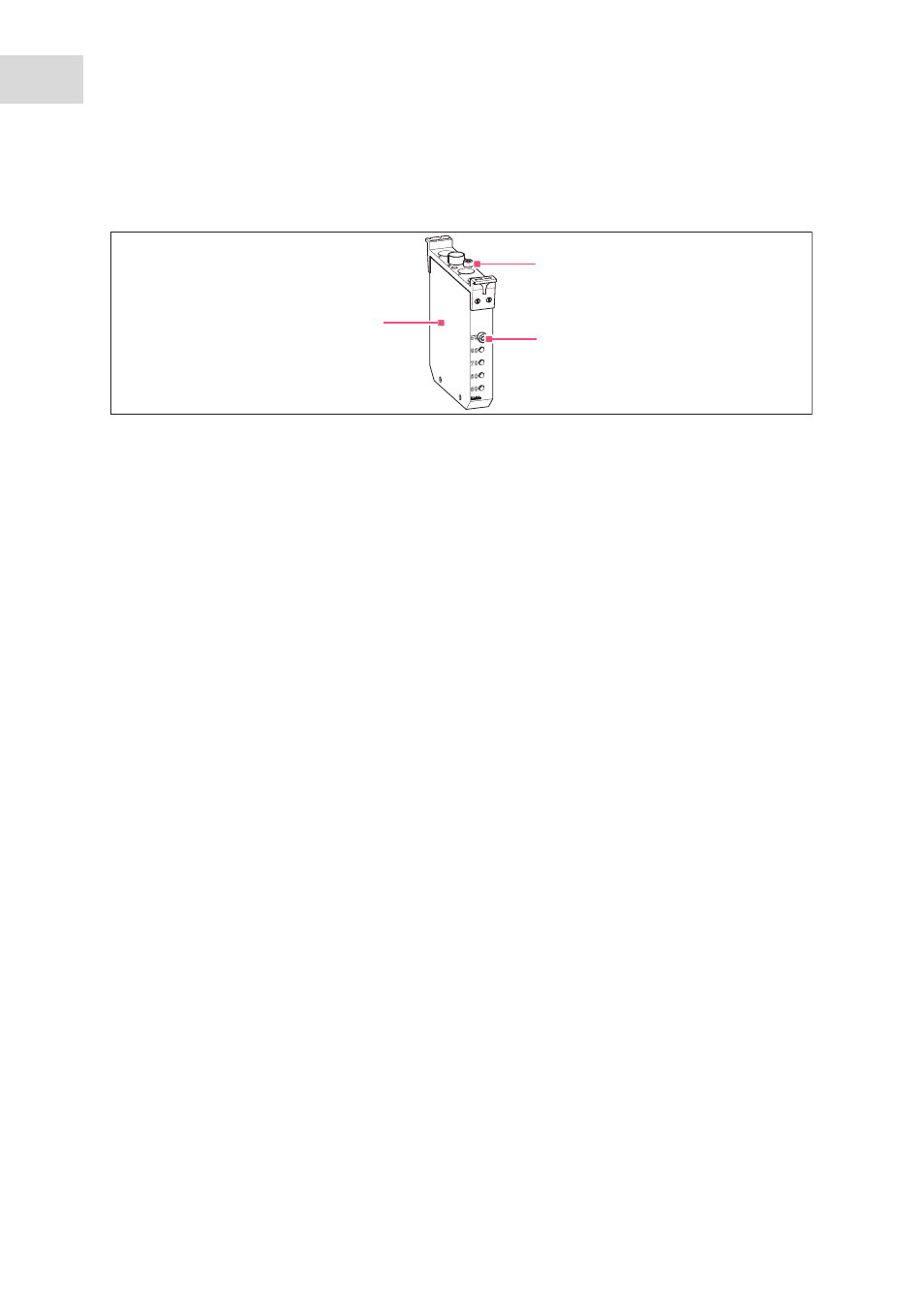

Abb. 8-9: Setting the Reservoir Rack module to vessel height
Fig. 8-9: Setting the Reservoir Rack module to vessel height
The Reservoir Rack modules have bores 12 mm, 16 mm and 17 mm in diameter at the front and rear. The
bores are mounted at 50 mm, 60 mm, 70 mm, 80 mm and 90 mm. Use the 2 positioning screws to position
the vessels at these heights.
 Screw the 2 positioning screws into the bores at the required height.
1 Positioning screw
In storage position
2 Positioning screw
At 50 mm height setting
3 Reservoir Rack module
2
1
3
