Product description
epMotion
® 5070
English (EN)
14
2.1.2 epMotion 5070f

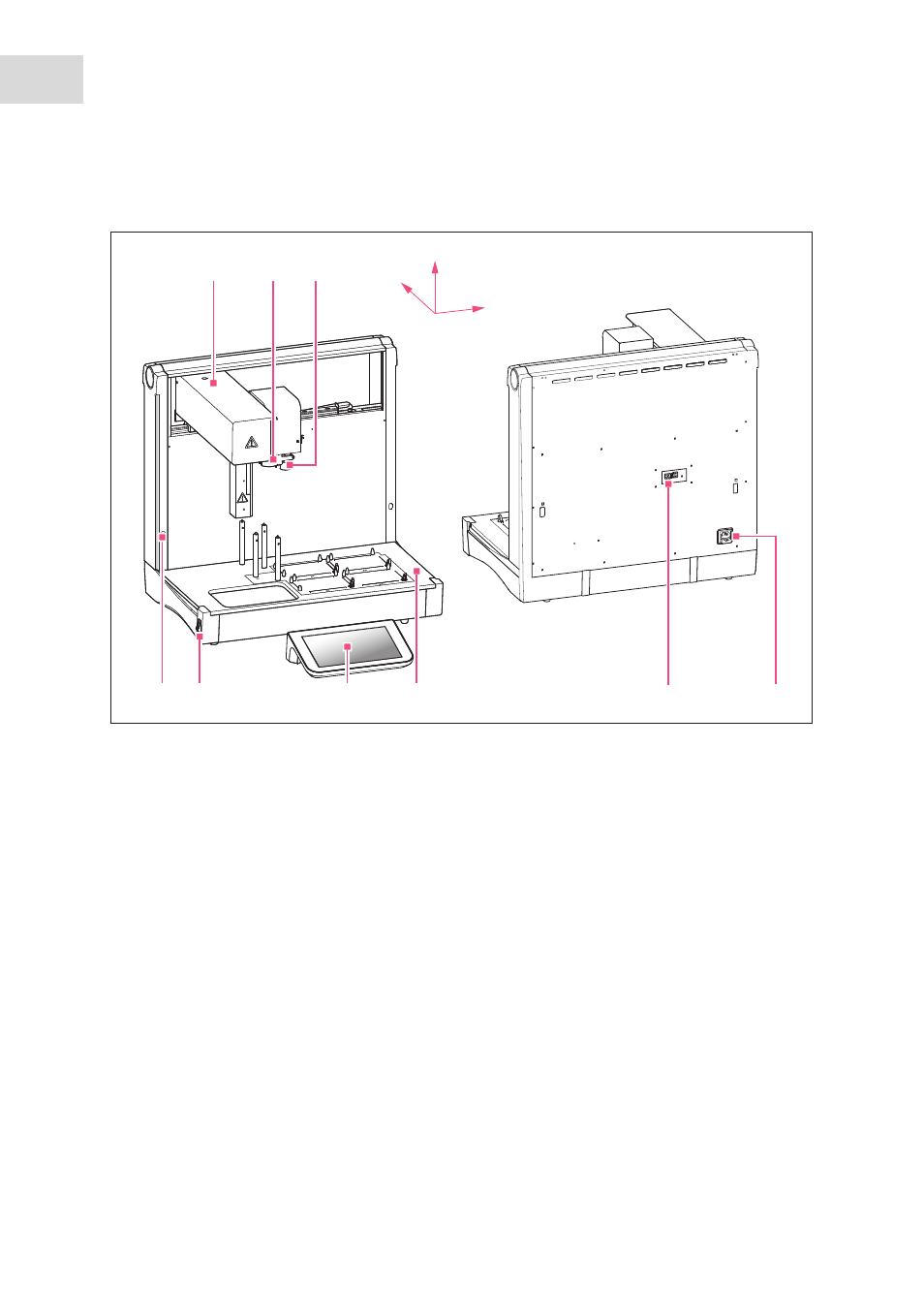

Abb. 2-2: Main illustration epMotion 5070f
Fig. 2-2: Main illustration epMotion 5070f
1 Carrier
The carrier moves in X-direction, Y-direction and
Z-direction.
2 Tool holder
Holds dispensing tools.
3 Optical sensor
Detects levels, tips and labware.
4 Mains power connection
5 Interfaces
6 Worktable
Work surface for tools and labware.
7 EasyCon
Control panel used to control the epMotion.
8 Mains power switch
9 Light barrier
The light reflectors are located on the inside of
the front screen of the Cleanbench.
x
y
z
epMotion 5070
4 6 7 8
1 2 3
5 9
