ADVANCE ADAPTERS INC. P/N: 715571
P.O. Box 247, 4320 Aerotech Center Way New Item: (8/02)
Paso Robles, CA 93447 PAGE 1 OF 5
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 03-17-11
SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components will
void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly recommend
that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We recommend that a
service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally available at automotive
dealerships and parts stores.
KIT CONSITS OF:
No: Qty Part No. Description
1. 1 * 715575 HIGH LOW PIVOT BLOCK
2. 1 715576 T/C HIGH LOW SHIFTER LEVER
3. 1 * 715577 2WD/4WD PIVOT BLOCK
4. 1 715579 PIVOT SHAFT
5. 2 715580 3/8"-24 BALL JOINT (High/Low linkage)
6. 1 715581 5/16"-24 BALL JOINT (Mode shift handle)
7. 1 715582 5/16"-24 MALE HEIM JOINT
8. 2 715583 SHIFT KNOB
9. 1 715585 TRANSFER CASE MODE SHAFT
10. 1 * 715586A HIGH/LOW SHIFT HANDLE (Must be welded to 715575)
11. 1 * 715586A MODE SHIFT HANDLE (Must be welded to 715577)
12. 1 * 715588 MODE SHIFT LINK (Must be welded to 715577)
13. 1 715589 CLEVIS PIN
14. 1 715590 COTTER PIN
15. 4 ** 715591 (FJ4404) PIVOT BUSHING
16. 1 723101 5/16"-18 NUT (Pivot pin)
17. 1 723103 5/16" LOCK WASHER
18. 1 723122 5/16" FLAT WASHER (Pivot pin)
19. 2 723131 5/16"-24 JAM NUT (Mode link)
20. 2 723719 3/8"-24 JAM NUT(High/Low link)
21. 1 723769 3/8"-24 SET SCREW (High/Low shift lever)
22. 1 723771 3/8"-24 x 9" ALL THREAD (High/Low link)
23. 1 302060 TWIN STICK BOOT
24. 1 302063 BOOT RING
25. 2 303121 1/2"-13 JAM NUT (Shift Knobs)
* ITEMS MUST BE WELDED BEFORE INSTALLING
** ITEMS MUST BE INSTALLED AFTER WELDING
**715591 IS A PRESS FIT INTO THE PIVOT BLOCK
NOTES:
This assembly will require the installation of a new mode
shaft into the transfer case. Refer to the exploded assembly
view on the following pages for part identification and part
assembly.
This kit is a universal type kit that requires the handles
to be bent and welded to fit your vehicle.
APPLICATIONS:
1) GM V8 with a SM420 or SM465
transmission and a Rock Box.
2) GM V8 with a SM420 or SM465
transmission and our T/C adapter.
3) GM V8 with the stock 4 speed
transmission.
TOYOTA L/C TRANSFER CASE TWIN STICK

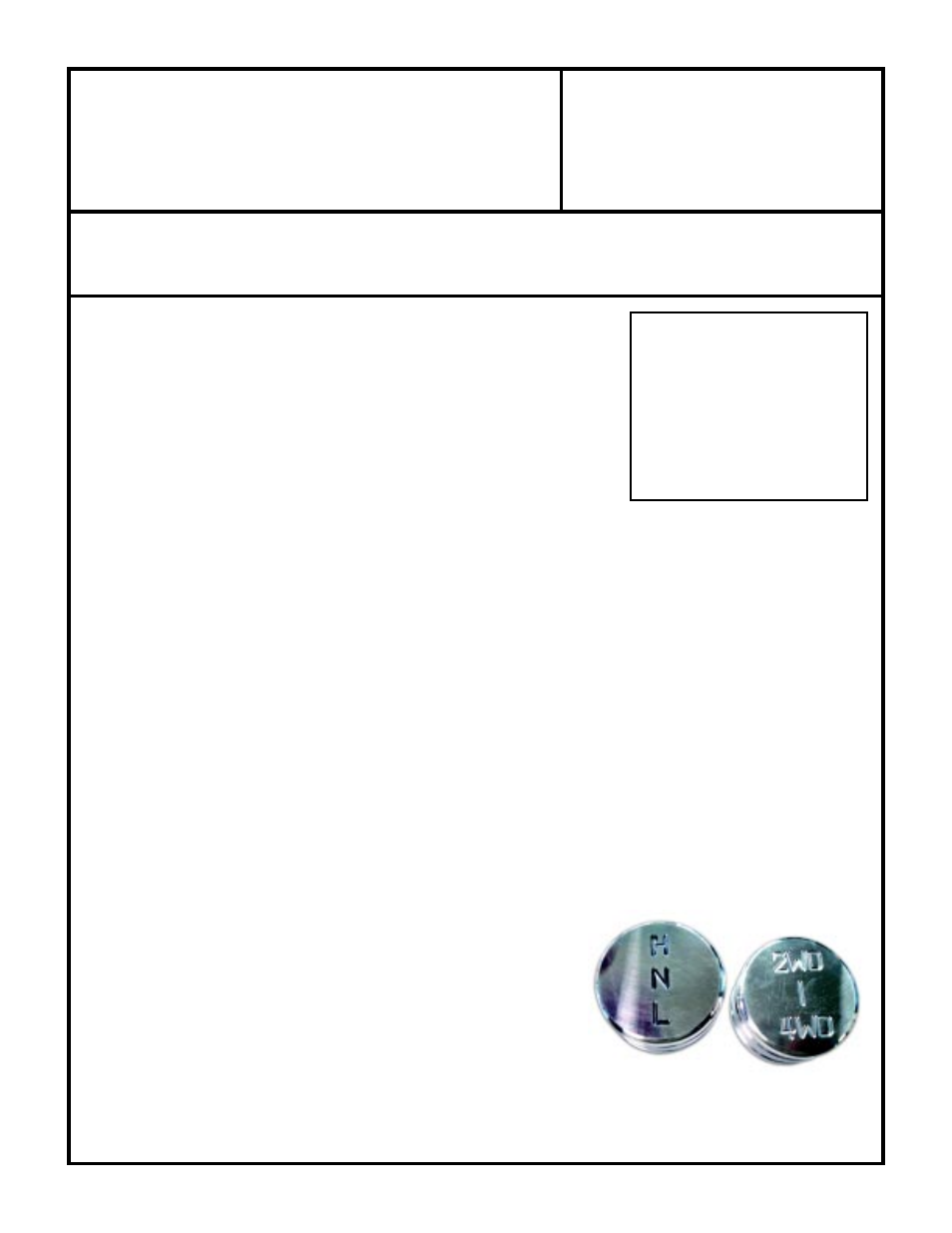

We do offer aluminum shifter knobs
for the Toyota twin stick kits. These
knobs are sold separately under
Part No. 715584 at a price of $42.95
