Snorkel ATB50 CE - Manual (Page 75)

8. For machines equipped with optional LPG
fuel, close the valve on the LPG tank
(completely turned clockwise).
A
DANGER
Transporting a loose ATB 42/50 can cause
Death or Serious Injury.
DO NOT attach tie downs to the steering tie
rods. The tie rods are not strong enough to
safely hold an ATB 42/50.

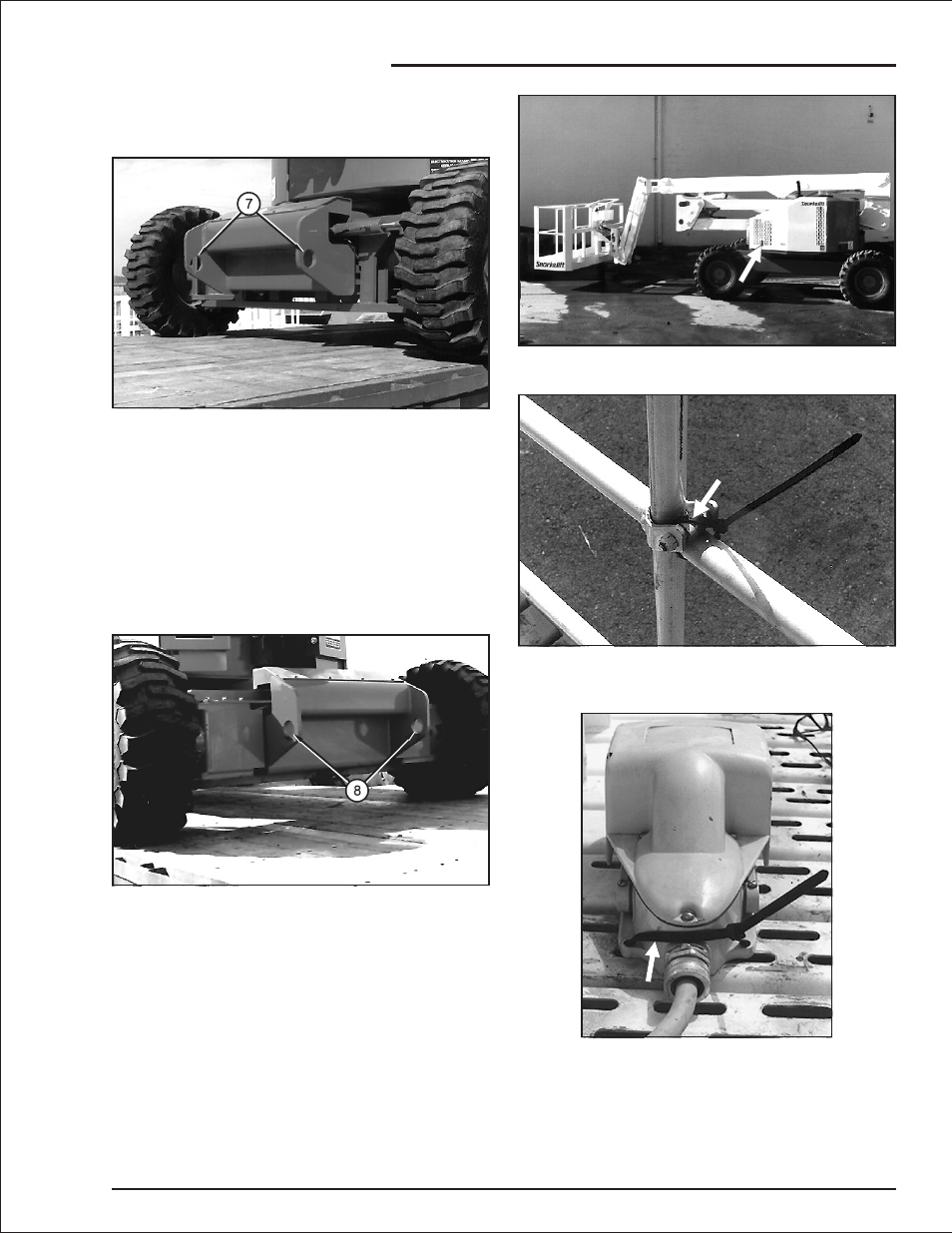

9. Attach chains to the front lifting tie down lugs
(7) on the ATB 42/50 chassis.
10. Attach chains to the rear lifting tie down lugs
(8) on the ATB 42/50 chassis.
NOTE
Chocks may be removed at this time, though it is
a good idea to leave them in place.
11. Lock the cowling doors closed.
12. Use wire ties, as shown, to keep the platform
gravity gate from bouncing around.
13. Use wire ties, as shown, to keep the platform
foot switch from bouncing around.
NOTE
Reverse the above procedure after transporting.
ATB 42/50 – 0161987EE page 10 - 3
10. Stowing and Transporting
