s
LPG (Liquefied Petroleum Gas)

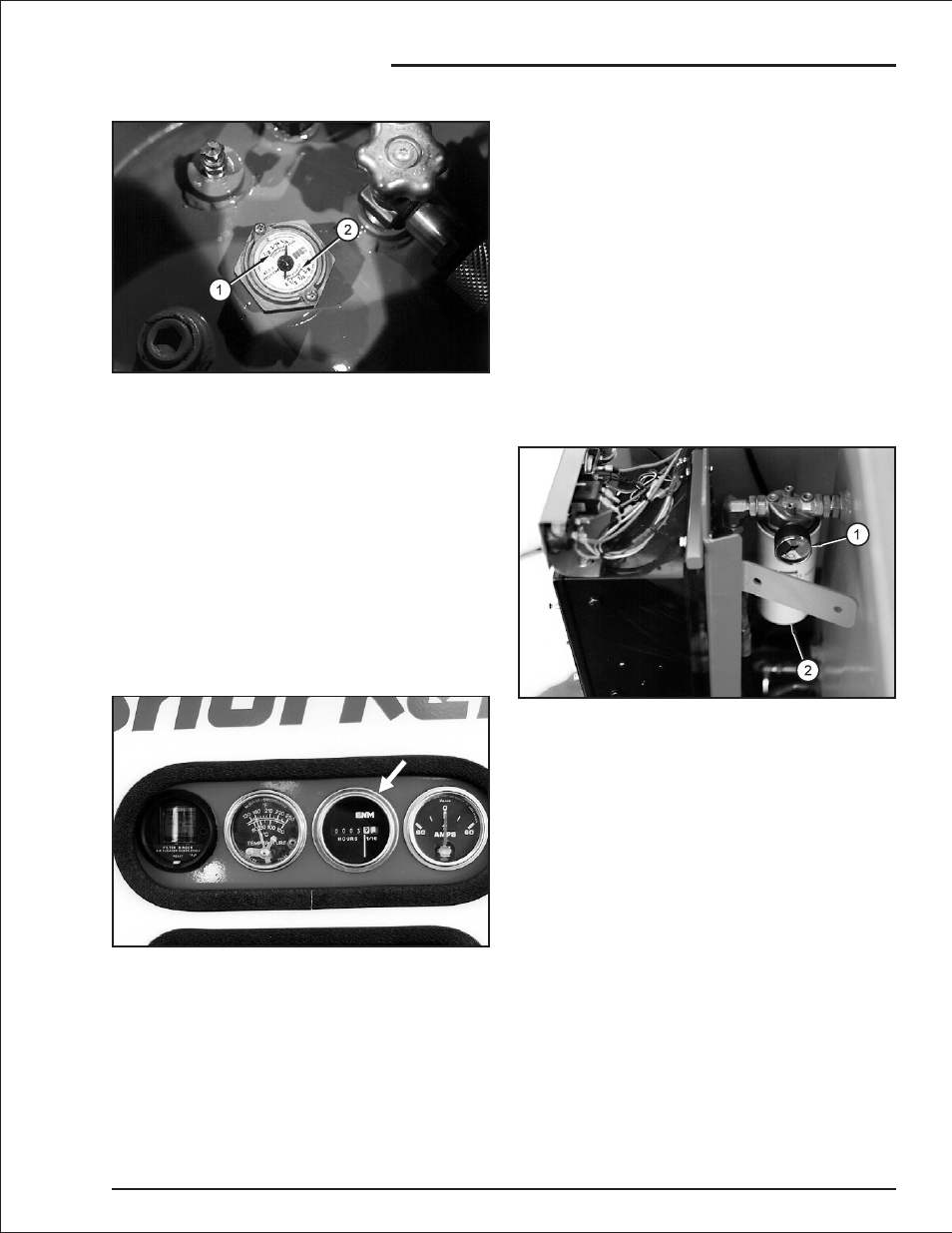

Optional LPG tanks have two fuel gauges (1) and
(2) on top. One measures correctly when the tank
is standing on end (vertical), the other measures
correctly when the tank is laying down
(horizontal).
Both read in fractions-of-a-full-tank. Standard
ATB 42/50 tanks are mounted vertically,
therefore, you should read the vertical scale (1).
NOTE
Optional second LPG tanks are mounted
horizontally. Read the horizontal gauge on them.
s
Hour Meter
The hour meter gauge is basically an electric
clock. It accumulates time when:
Battery Switch . . . . . . . . . . . . . . . . . . . . . . . ON
Platform/Ground Selector . . . . . . . . . GROUND
Emergency Stop
(at ground control box) . . . . . Pulled Out (ON)
Master Key Switch . . . . . . . . . . . . . . . . . . . . ON
The hour meter also accumulates time when:
Battery Switch . . . . . . . . . . . . . . . . . . . . . . . ON
Platform/Ground Selector . . . . . . . . PLATFORM
Emergency Stop
(at ground control box) . . . . . Pulled Out (ON)
Emergency Stop
(at platform control box) . . . . Pulled Out (ON)
Master Key Switch . . . . . . . . . . . . . . . . . . . . ON
Anti-Restart Switch . . . . . . . . . . . . . . . . . . . . ON
NOTE
The hour meter gauge cannot be reset. use it
to tell when it is time to perform the periodic
maintenance listed in the Maintenance and
Repair Parts Manual.
s
Hydraulic Oil Filter
The hydraulic oil filter gauge (1) is located above
the hydraulic oil filter (2). The gauge measures
pressure into the filter. As the filter clogs, the
pressure goes up.
A
CAUTION
The hydraulic oil filter gauge should only be
read by qualified trained maintenance
personnel. An accurate reading requires very
special conditions and should not be
attempted by operators.
ATB 42/50 – 0161987EE page 4 - 3
4. Gauges
