Operator Horn
Press the operator horn to see that it works.
s
Motion Warning Alarm
Listen for the motion warning alarm (if the ATB
42/50 has that option) as you drive forward and
backward. Listen for the start up alarm when the
Anti-Restart Switch is first turned ON.
s

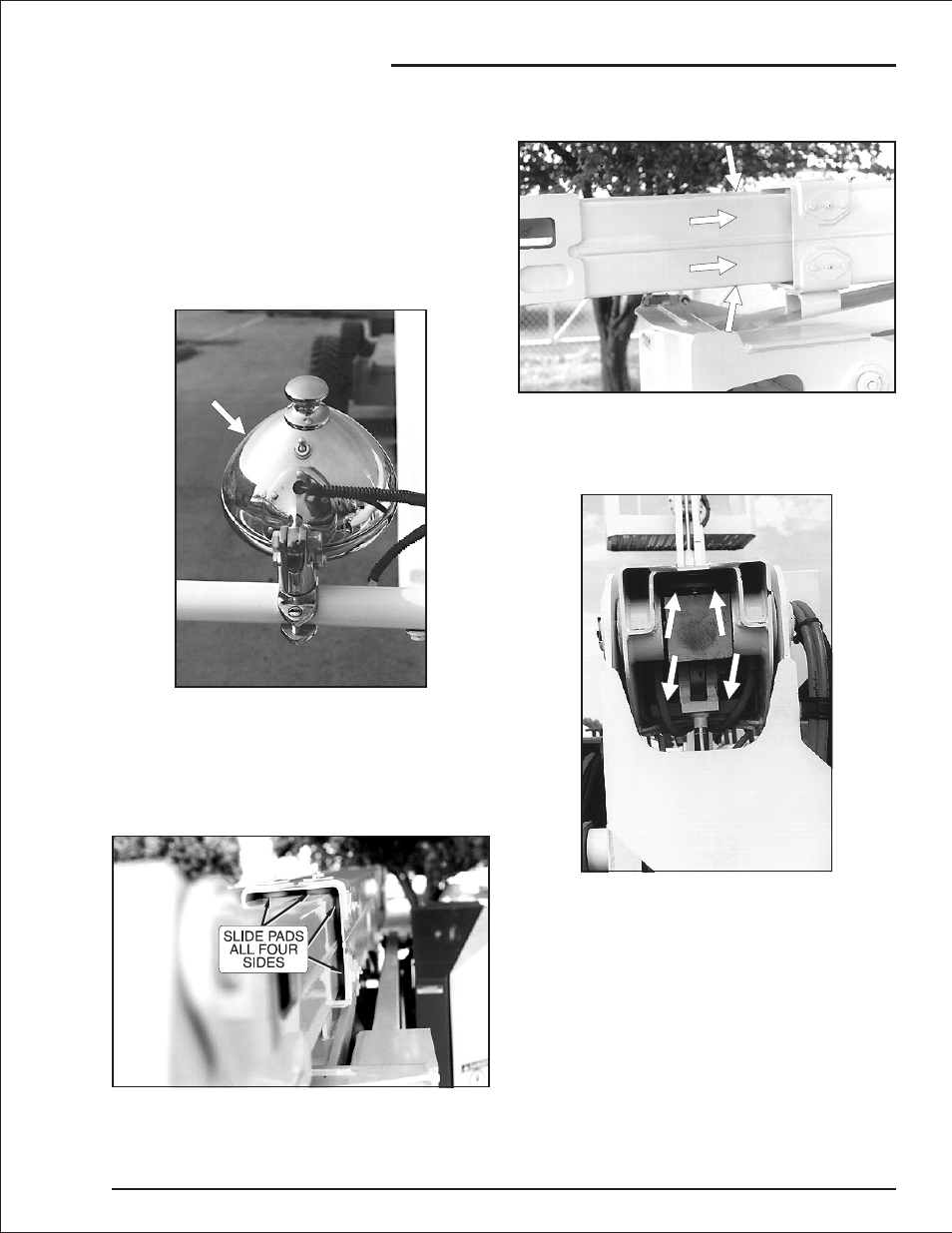

Platform Work Lights
To check the optional platform work lights, while
the engine is running, momentarily turn each
work light on (use the switch on the back of each
light) to see that they both work.
s
Slide Pads (ATB 50 Only)
With the engine running, use the ground control
box to extend the tip boom about 1 foot (30 cm).
Visually inspect to see that all the slide pads are
in place in the rear end of the base boom.
Look at the surface that slides on each slide pad.
The paint should still be in place and there should
not be any signs of bare metal gouging.
Check the slide pads and paint inside the front
end of the base boom similarly.
Completely retract the boom then turn the engine
OFF at the ground control box Master Key
Switch.
ATB 42/50 – 0161987EE
page 7 - 11
7. Daily Inspection and Maintenance
