DRIVE FORWARD: Slowly push the
Drive/Steer controller FORWARD and the
AB50J moves forward. The further forward
you push the controller the faster the AB50J
goes (max. 3.5 mph, 5.6 km/hr).
●
DRIVE REVERSE: Same as DRIVE
FORWARD except move the controller
backward, and the AB50J chassis moves
backward.
The smoother you move the controller the
smoother starts and stops will be.
●
STEER RIGHT: Slowly push the Drive/Steer
controller to the right and the front wheels
move in the direction for a right hand turn.
The longer you hold the controller to the right
the further the wheels turn.
●
STEER LEFT: Works the same as STEER
RIGHT only for a left hand turn.
The wheels stay the direction you turn them,
they do not automatically return to center the
way automobile wheels do.
AB50J – 0163189
page 6 - 5
6. Controls

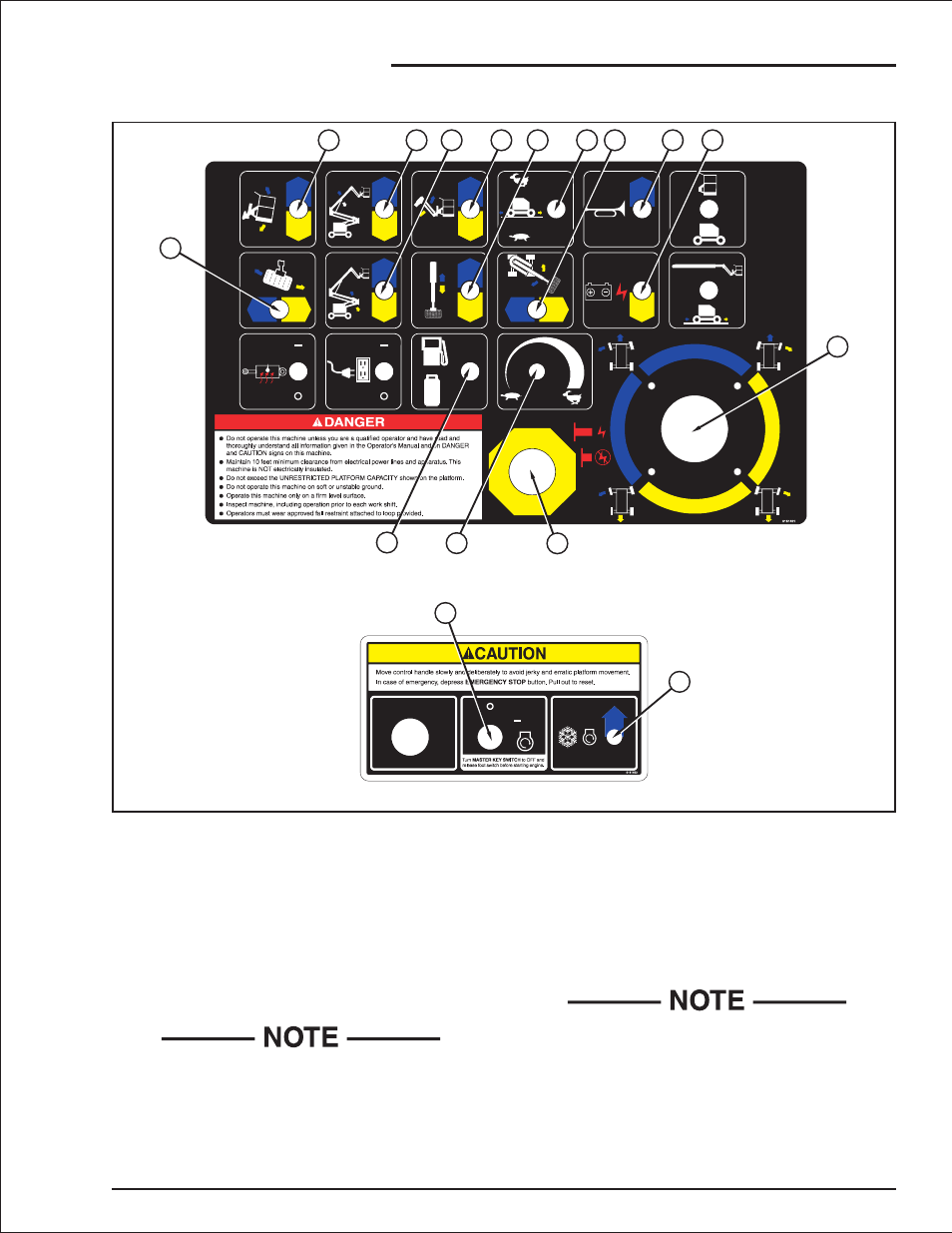

Platform Control Box Front
2
3
Platform Control Box Top
1
15
4
5
6
7
8
9
10
11
12
13
14
16
❑
Platform Control Box Controls
