Date:

8-4-2010

Revision: 0

Form:

2396

(Figure 34). The normal reset curve is shown in
green and the time of day is red.

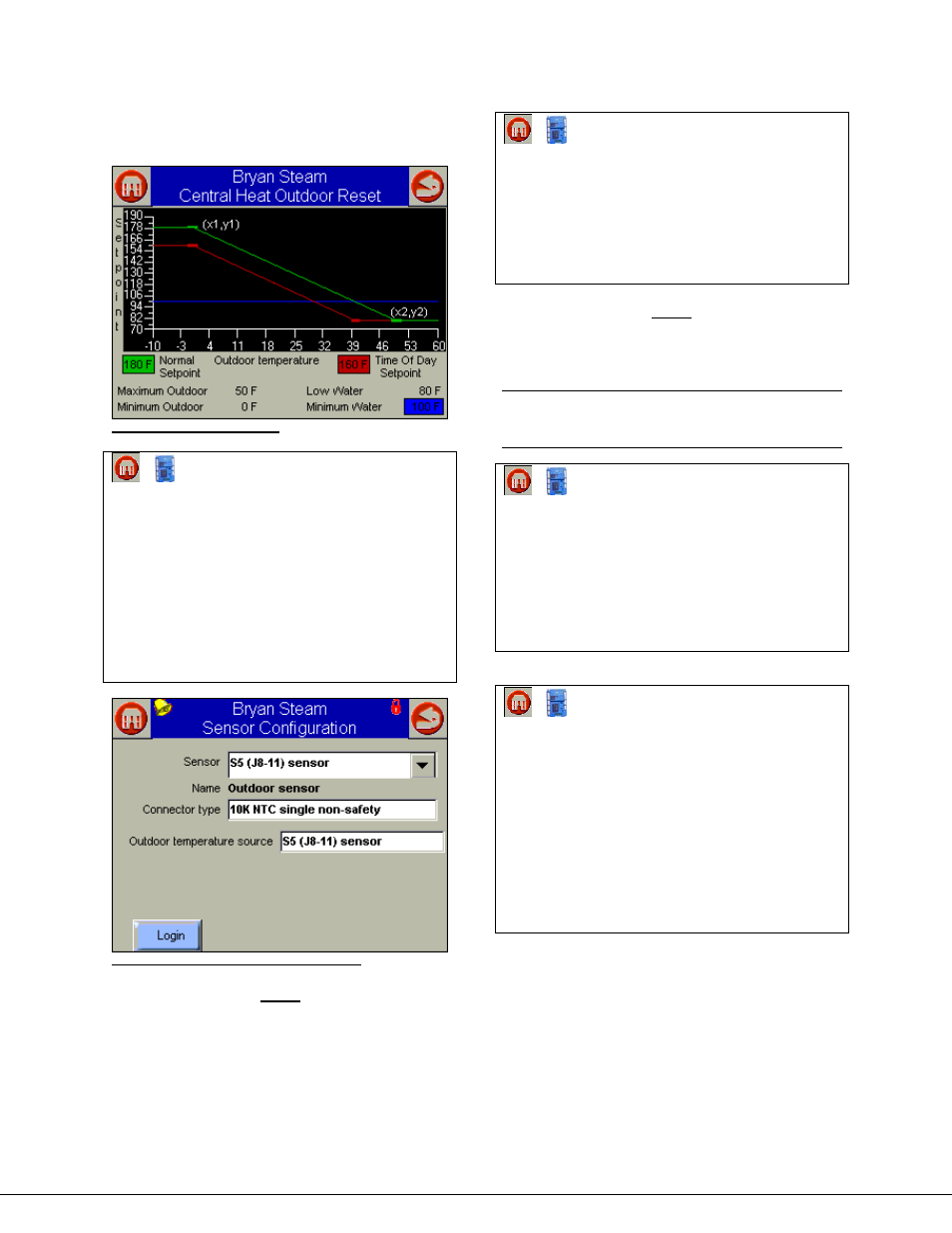

Figure 34 Outdoor Reset Curve

► ► CONFIGURE

► SENSOR CONFIGURATION

► (Sensor) S5 (J8-11) sensor

► (Connector type) 10K NTC single
non-safety

► (Outdoor temperature source) S5
(J8-11) sensor

Figure 35 Outdoor Reset Sensor Configuration

Note:

Update the sensor name to ‘Outdoor Sensor’ by
selecting a different sensor then reselecting the
S5 (J8-11) sensor.

► ► CONFIGURE

► CH - CENTRAL HEAT
CONFIGURATION

► (page) CENTRAL HEAT

► (Outdoor Reset) ENABLED

Note:

y1 is the maximum water setpoint value found in
‘CH – Central heat Configuration’ on the
‘Setpoint’ page.

2.2.20 R

EMOTE

S

ETPOINT

(4 – 20

M

A)

► ► CONFIGURE

► SENSOR CONFIGURATION

► (Sensor) S2 (J8-6) sensor

► (Connector type) 4-20mA

► SAFETY VERIFICATION 2.2.9

► ► CONFIGURE

► CH - CENTRAL HEAT
CONFIGURATION

► (page) SETPOINT

► (Setpoint Source) S2 (J8-6) 4-20mA

► (4 mA water temperature) MIN

► (20 mA water temperature) MAX

26
