Date:

8-4-2010

Revision: 0

Form:

2396

button turns red (Figure 22). On all other pages
and when the user is looking at a different boiler,
a notification dialog box displays indicating
which boiler just locked out.

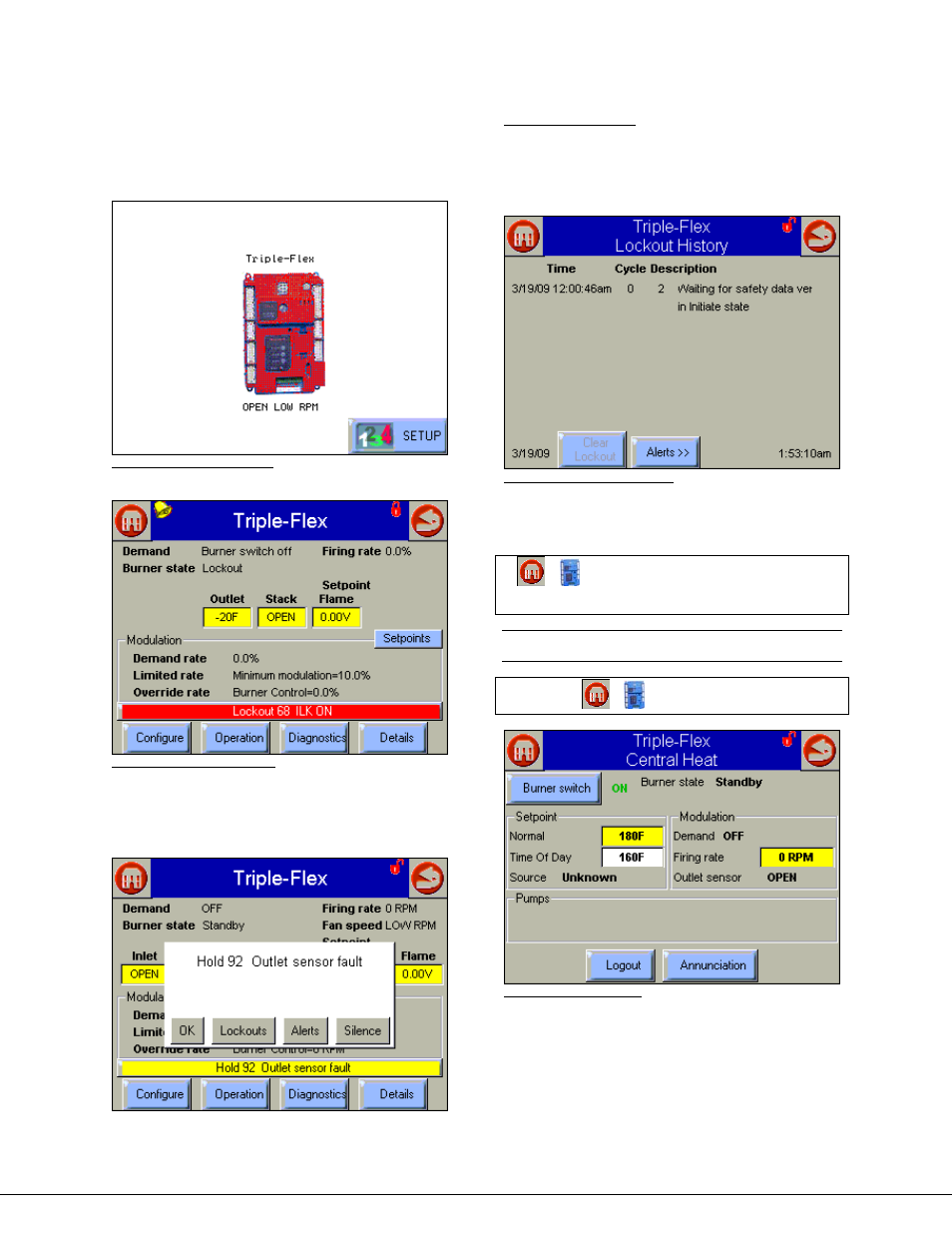

Figure 21 Home Page Lockout

Figure 22 Status Page Lockout


Selecting the info bar will display the history
dialog. If none of the buttons are selected the
dialog box closes after 30 seconds.

Figure 23 History Dialog


The lockout history can be displayed for each
boiler. The state information about each lockout
is displayed along with the date/time that the
lockout occurred.

Figure 24 Lockout History Page


Use the following to clear a lockout and reset the
boiler.

► ► INFO BAR ► LOCKOUTS ►

CLEAR LOCKOUT

2.2.11 O

PERATION

P

AGE

► ►OPERATION

Figure 25 Operation Page

22

The operation page displays the boiler running
operation, including set point and firing rate
values expressed in rpm. From this page the
user can change set points, manually control the
boiler’s firing rate, manually turn pumps on, view
