Date:

8-4-2010

Revision: 0

Form:

2396

calibrated. When the screen is touched in a
spot and unexpected results occur this is a good
indication that the display needs to be
calibrated. To calibrate the touch screen select
the ‘Calibrate’ button and follow the on screen
directions. Try using a stylus of some kind if the
problem persists. The eraser end of a pencil or
the blunt end of a pen can be used as a good
stylus.

2.2.18 R

ESET

/ R

EBOOT

D

ISPLAY

► 1234 SETUP

► ADVANCED SETUP

► DISPLAY RESET

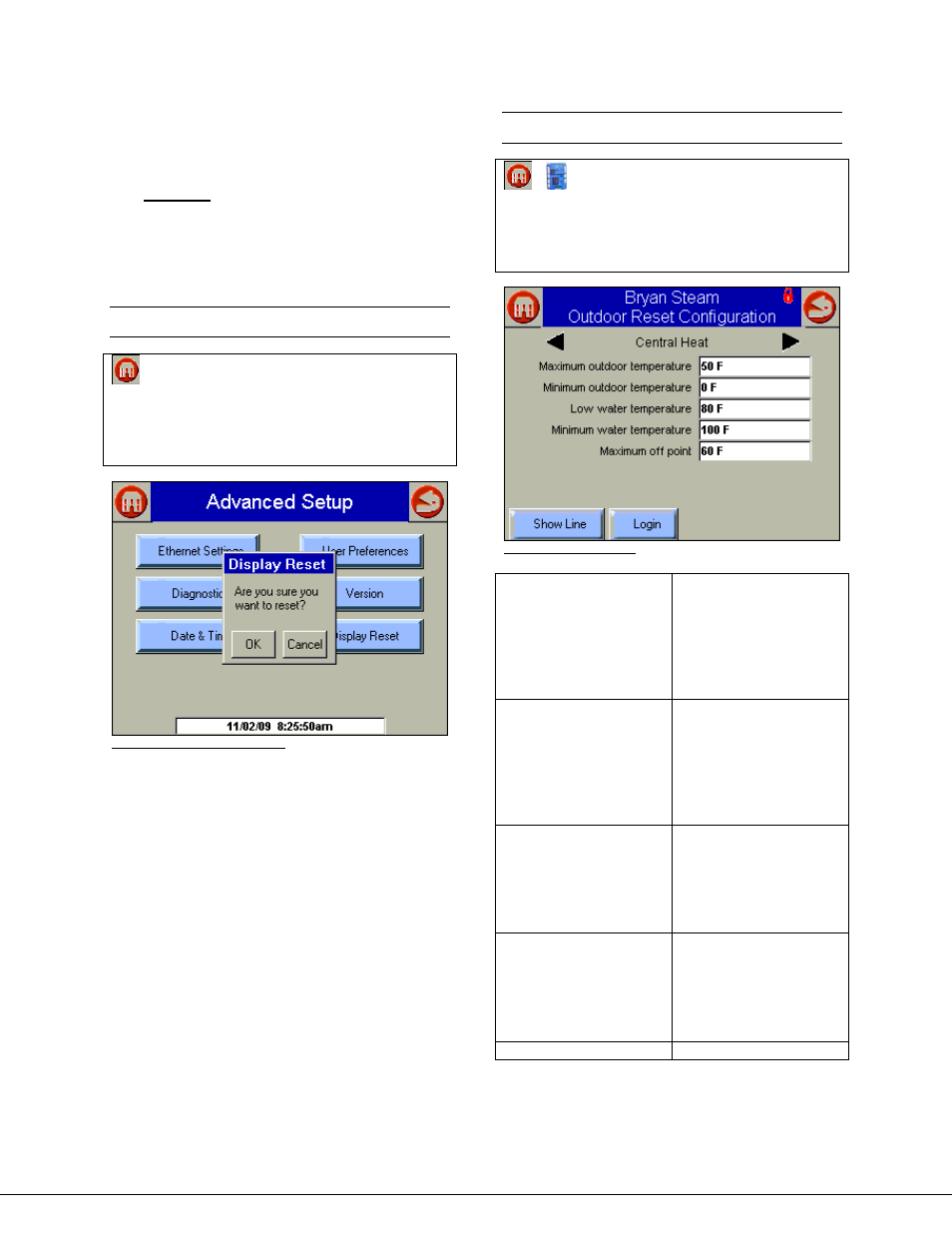

Figure 32 Reset / Reboot Display


The display can be reset or rebooted without
powering down the boiler. Select the ‘OK’
button and the display will reboot as shown in
paragraph Power-up Validation 2.2.1.

2.2.19 O

UTDOOR

R

ESET

► ► CONFIGURE

► OUTDOOR RESET

► (page) CENTRAL HEAT

Figure 33 Outdoor Reset

Max outdoor temp

(x

2

)

When the outdoor

temperature is equal

or greater than this

value the boiler

setpoint will be set to

the low water

temperature.

Min outdoor temp

(x

1

)

When the outdoor

temperature is equal

or less than this value

the boiler setpoint will

be set to the Central

Heat Setpoint value

(y

2

) see 2.2.21.

Low water temp

(y

2

)

This value represents

the water temperature

setpoint when the

maximum outdoor

temperature is

reached.

Min water temp

This value is used to

override the low water

temperature of the

curve created with the

above points without

changing the slope.

Max off point

Undefined / Not Used

25

Select the ‘Show Line’ button to display a
graphical representation for the inputted data
