Installation Instructions:
(Part # SB76880)
XRC Armor Front Fender Kit
Revised 02.08.11
Step 22: While holding the inner fender liner into place install the rest of the plastic retain-
ers.
NOTE: The bottom portion of the inner fender liner will be sandwiched between the
body and fender.
Step 23: Reinstall the hood catch to the new fenders using the previously removed OE hard-
ware. (Fig. I)
Step 24: Reinstall the windshield braces to the vehicle using the previously removed OE
hardware. (Fig. A)
Step 25: Repeat the previous steps on the remaining side of the vehicle.
Step 26: reinstall the factory wiper cowl panel using the previously removed OE hardware.
Step 27: Reinstall the windshield wipers.
Step 28: Torque all OE hardware according to manufacturers specifications or the supplied
hardware according to the torque chart below. Installation is now complete.

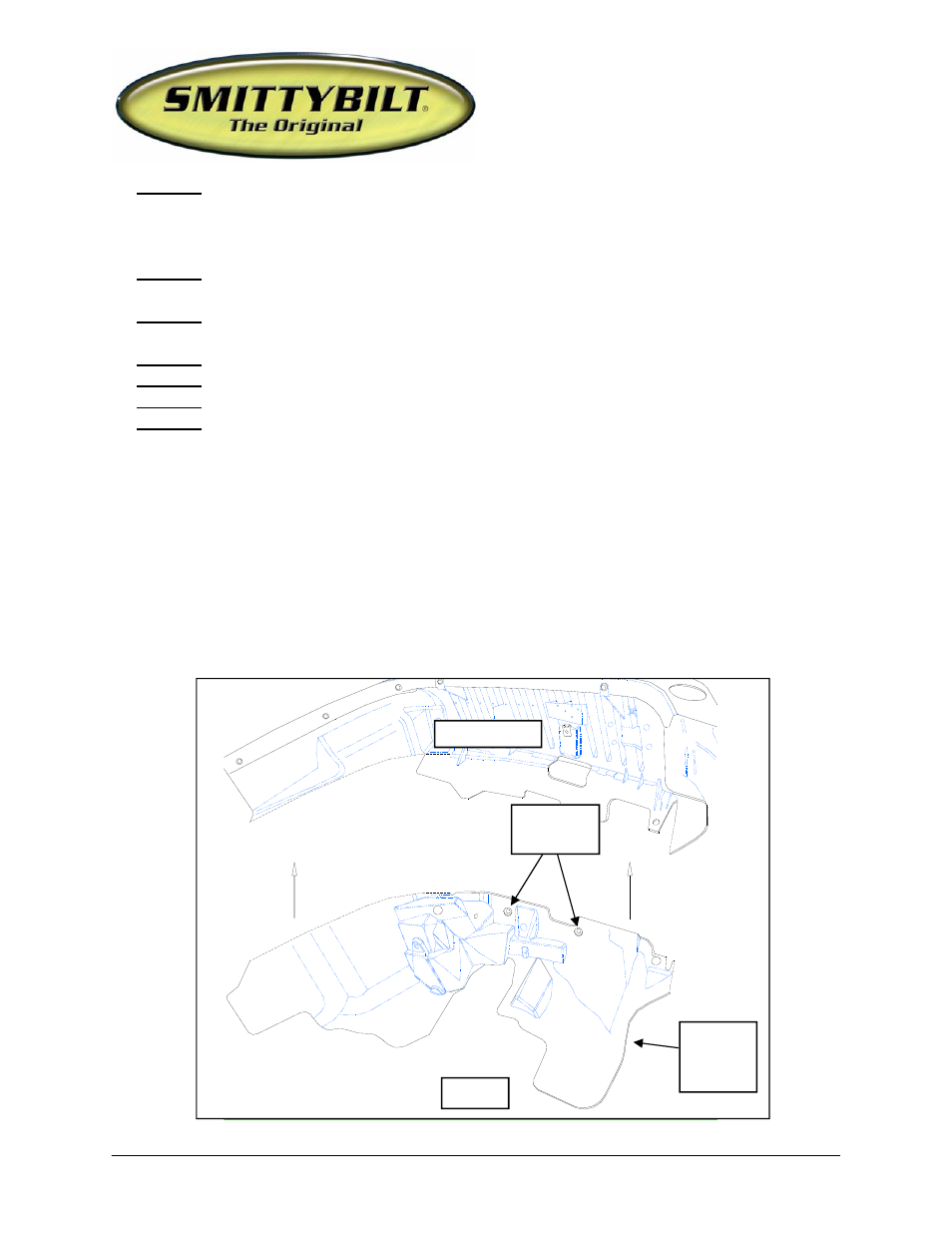

(Fig H)
Cut Off Piece
(2) OE Bolt
Holes
OE Inner
Fender
Liner
