Installation Instructions:
(Part # SB76880)
XRC Armor Front Fender Kit
Revised 02.08.11
the antenna wiring. (Fig. G)
Step 20: The factory inner fender liners will need to be trimmed in order for the Smittybilt
inner fender liners (90-4275 drvr and 90-4276 pass) to provide complete coverage. Trim
the inner fender liner so it has approximately 1” of material sticking out past the front inner
fender structure. This is only a starting point and further trimming may be necessary for a
perfect fit. (Fig. H)
Step 21: Align the (2) large bolt holes in the OE inner fender liner and the supplied inner
fender liner (90-4275 drvr and 90-4276 pass) and install into the inner fender structure using
the (2) previously removed OE bolts. Install the plastic retainers into the outer edge of the
inner fender liner starting from the middle of the fender working outward. (Fig. H)

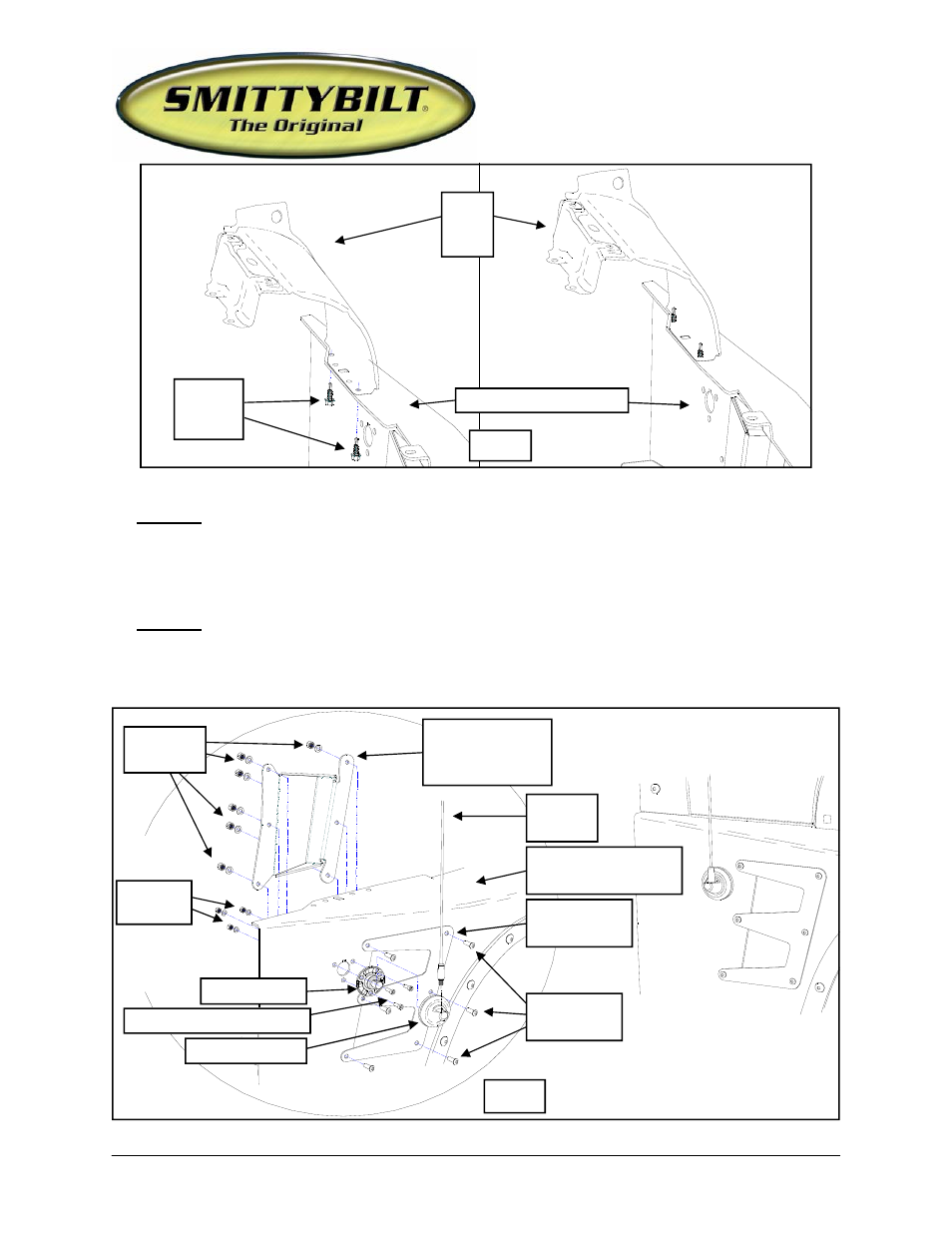

93-5924 drvr and
93-5925 pass Inner
Duct
93-5923 Outer
Duct
(6) 1/4”-20
Hardware
Antenna
Mast
(3) 10-24
Hardware
(3) 10-24 Allen Head Bolts
Antenna Base
Plastic Base Cap
(6) 1/4”-20” X
3/4” SS Bolts
(Fig G)
Fenders 93-5909 drvr
and 93-5917 pass
3/16” Self
Tapping
Screws
(Fig F)
Inner Fender Structure
Side
Cowl
Panel
