Smittybilt SB76880 XRC Armor Front Fender Kit - Manual (Page 4)

For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 W Artesia, Compton, CA 90220
Installation Instructions:
(Part # SB76880)
XRC Armor Front Fender Kit
Revised 02.08.11

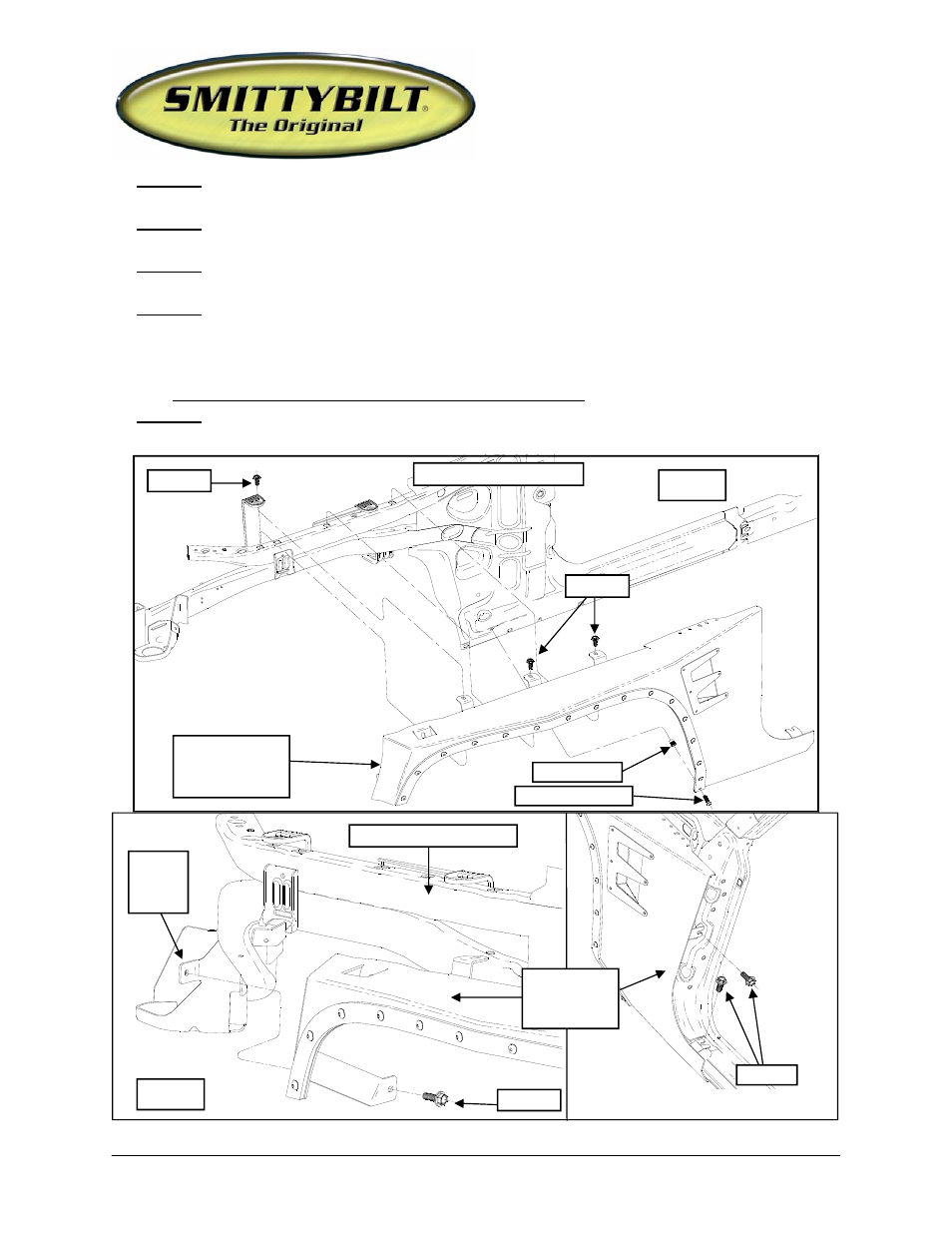

Step 15: Reinstall the fenders (93-5909 drvr and 93-5917 pass) and secure using the previ-
ously removed OE hardware. (Fig. E)
Step 16: Reinstall the previously removed side cowl panel to the inner fender structure us-
ing the supplied 3/16” X 1” self tapping screws. (Fig. F)
Step 17: Install the outer duct (93-5923) and the inner duct (93-5924 drvr and 93-5925
pass) to the fender using the 1/4”-20 X 3/4” stainless button head bolts. (Fig. G)
Step 18: Install the fender lip guard (93-5921 drvr and 93-5922 pass) to the outside of the
wheel well using the supplied 3/8” X 1” stainless button head bolts. (Fig. D)
NOTE: The bottom fender lip guard bolt will align and install into the previously in-
stalled nutcert.
NOTE: Step 19 is for the passenger side fender Only!:
Step 19: Bolt the antenna base to the passenger side fender using the supplied (3) 10-24 X
1” socket head bolts. Reinstall the plastic base cap, reattach the antenna mast and reconnect
OE Bolt
OE Bolt
Fenders 93-
5909 drvr and
93-5917 pass
Inner Fender Structure
OE
Fender
Bracket
(Fig E)
Inner Fender Structure
OE Bolt
OE Bolt
Fenders 93-5909
drvr and 93-5917
pass
3/8” X 1” SS Bolt
3/8” Nutcert
(Fig E)
