For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 W Artesia, Compton, CA 90220
Installation Instructions:
(Part # SB76880)
XRC Armor Front Fender Kit
Revised 02.08.11
Step 14: Drill out the previously drilled hole in the inner fender structure from 3/8” to 1/2.”
Install the 3/8” nutcert into the 1/2” hole. (Fig. D)
NOTE: If you do not have a professional nutcert installation tool, use the 2 1/2” X
3/8” socket head bolt, 3/8” nut and washer. Install the nutcert into the 1/2” hole on the
vehicle. Thread the nut up as far on the 3/8” bolt as it will go and then follow that with the
washer. Thread the bolt, nut, washer, nutcert tool (96-5951) and star washer assembly
into the nutcert. (Fig. D) While holding the 3/8” bolt with an Allen wrench, tighten the
nut and washer down against the nutcert. Use the nutcert tool and star washer to keep the
nutcert body from spinning while tightening the 3/8” bolt. Once the nutcert is properly
installed into the vehicle remove the 3/8” bolt, nut, washer, nutcert tool (96-5951) and star
washer .

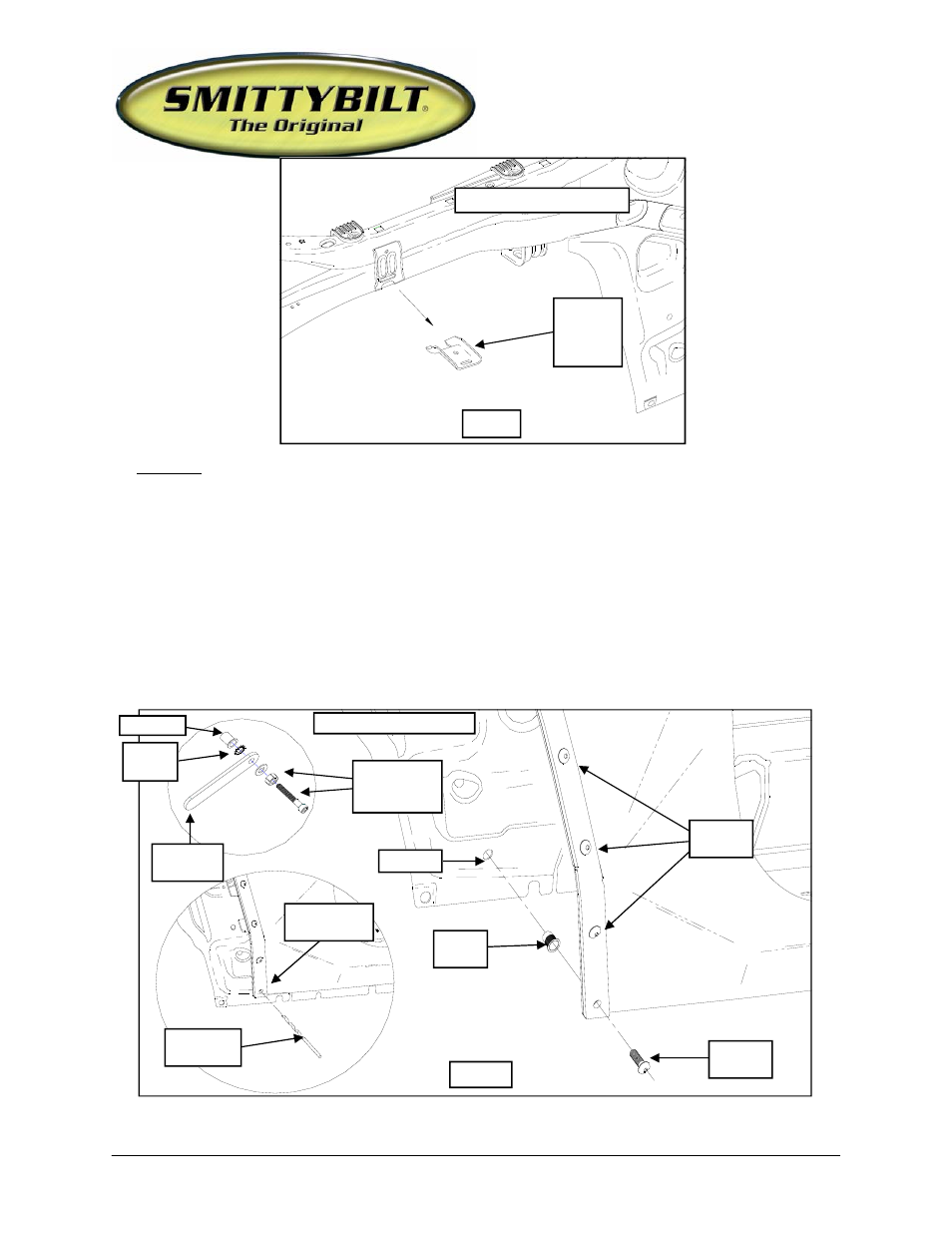

(Fig C)
Inner Fender Structure
OE
Fender
Bracket
3/8” &
Lowest
3/8” SS
3/8”
1/2”
(Fig D)
3/8” X
Inner Fender Struc- 3/8”
Rivet
Star
3/8” X 2 1/2”
bolt, 3/8”
