32

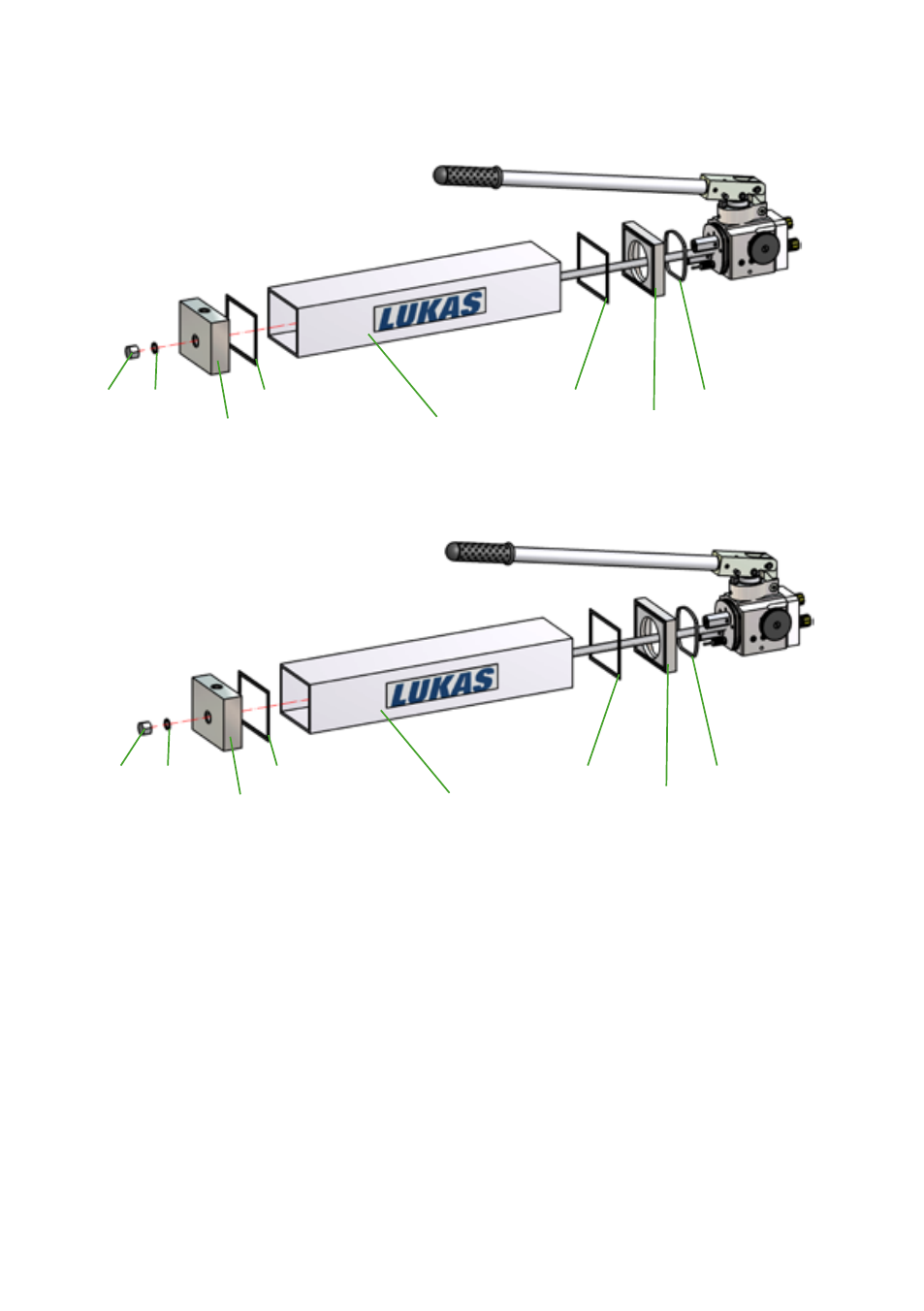

Hand pumps with a 1,8 l reservoir has to be disassembled like shown below:
nut (Pos. 16.1), sealing ring (Pos. 15.2), base plate, flat seal (Pos. 17.1), reservoir,
connecting plate and sealing (Pos. 15.1).
16.1 15.2
base plate
17.1
reservoir
17.1
connecting plate
15.1
Hand pumps with a 3,8 l reservoir has to be disassembled like shown below:
nut (Pos. 16.1), sealing ring (Pos. 15.2), base plate, flat seal (Pos. 18.1), reservoir,
connecting plate and sealing (Pos. 15.1).
5. The assembly is done in reverse order. Replace all damaged parts with new ones.
The tightening torque of the nut is 40 Nm.
base plate reservoir connecting plate
16.1 15.2 18.1 18.1 15.1
