15

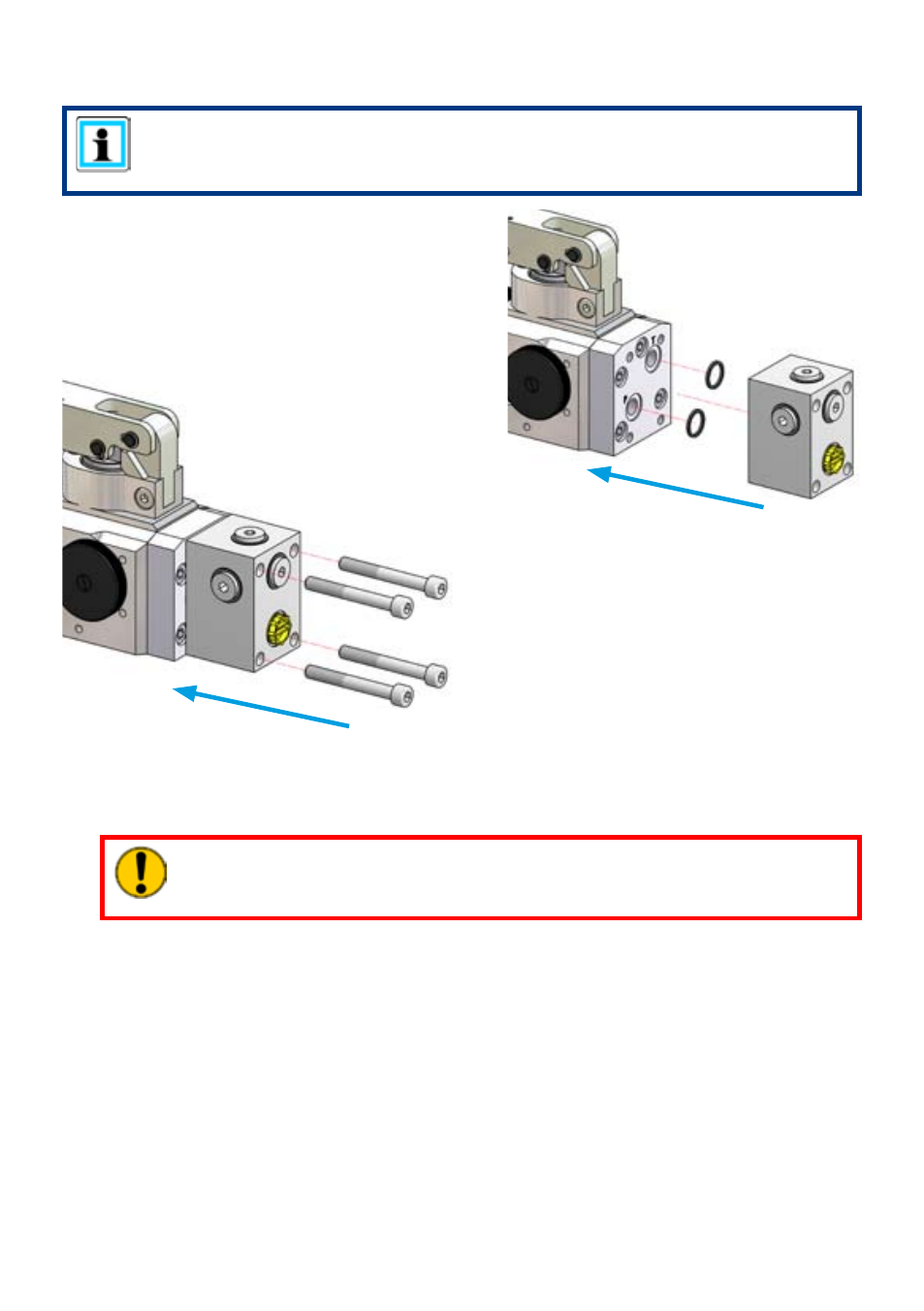

1. Put the oil distributor onto the base plate,
so that the borholes „T“ and „P“ of the oil
distributor matches with the ports of the base
plate / pump head.
Take care, that the surfaces are clean and
dust-free.
2. Put the 4 screws into the designated
boreholes and tighten them with a torque
of 32 Nm.
3. When you are connecting the hose assemblies directly to the hand pump, you will have
to mount appropriate designated couplings, fittings or closing screws to the ports “P” and
“T”. (tightening torque M
A
= 40 Nm)
6.5 Oil distributor with pressure gauge connection
ATTENTION!
After the end of the assembly close all hydraulic lines by using closing screws
and/or dust protection caps, to prevent the hand pump from impurities.
NOTE:
To mount the oil distributor, first the base plate without closing screws, fittings
and couplings has to be mounted.
