30 Chapter 3
For a Rack 29 to 36 Inches Deep

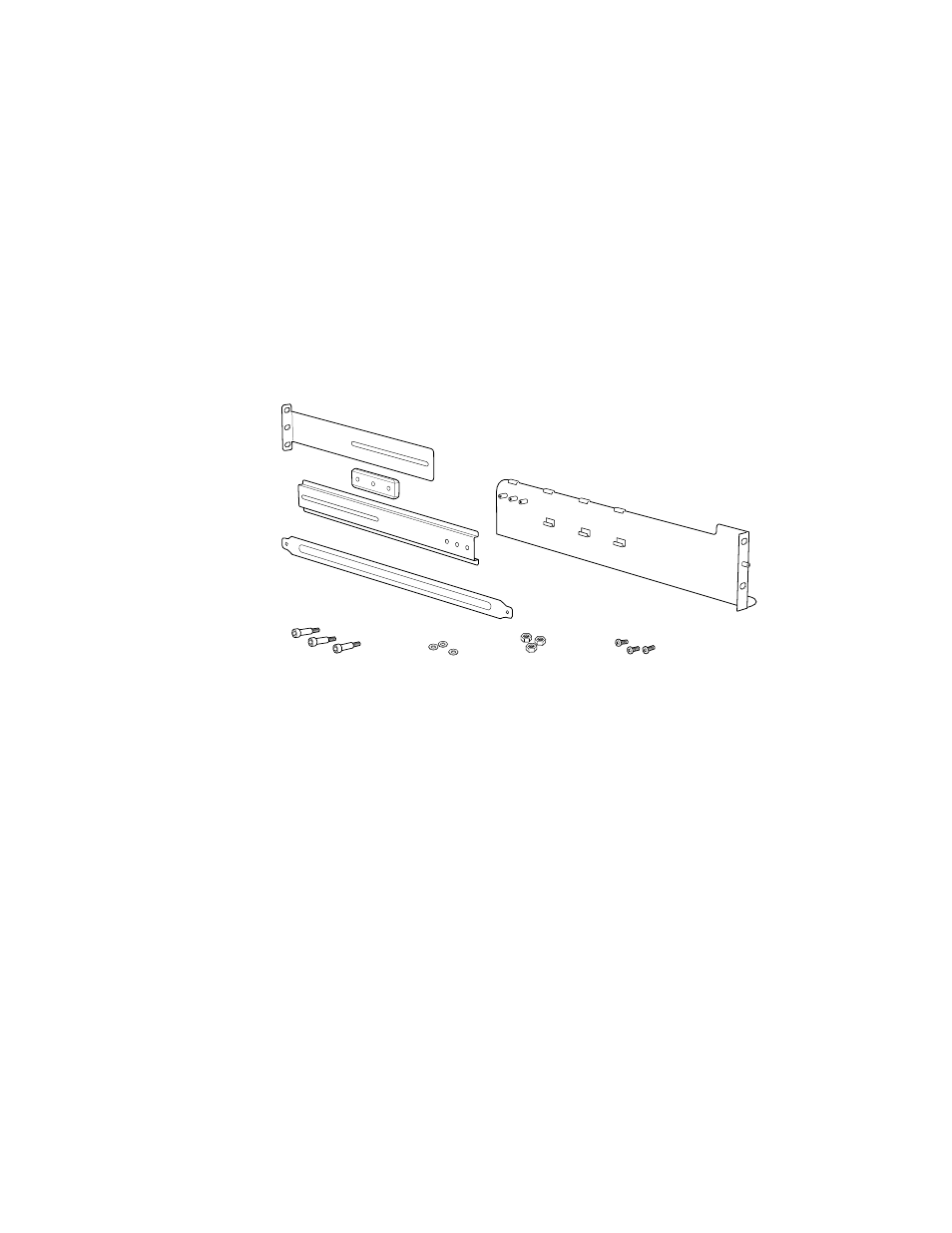

1 Gather the two brackets (A1 and A2), the two shorter extenders (item C in the illustration
below), the two flat pieces (item D in the illustration), the two solid bars (item E in the
illustration), and the necessary screws and nuts:
m six short screws for assembling two brackets and extenders
m six shoulder bolts, six washers, and six nuts for joining the brackets and extenders
m four long screws for securing the brackets to the rack
m two mounting screws for attaching the system to the rack
m the L-shaped hex key wrench supplied with the system (for connecting the extenders)
C
E
D
A1 and A2
Short screws Nuts Washers Shoulder bolts
Mounting template
