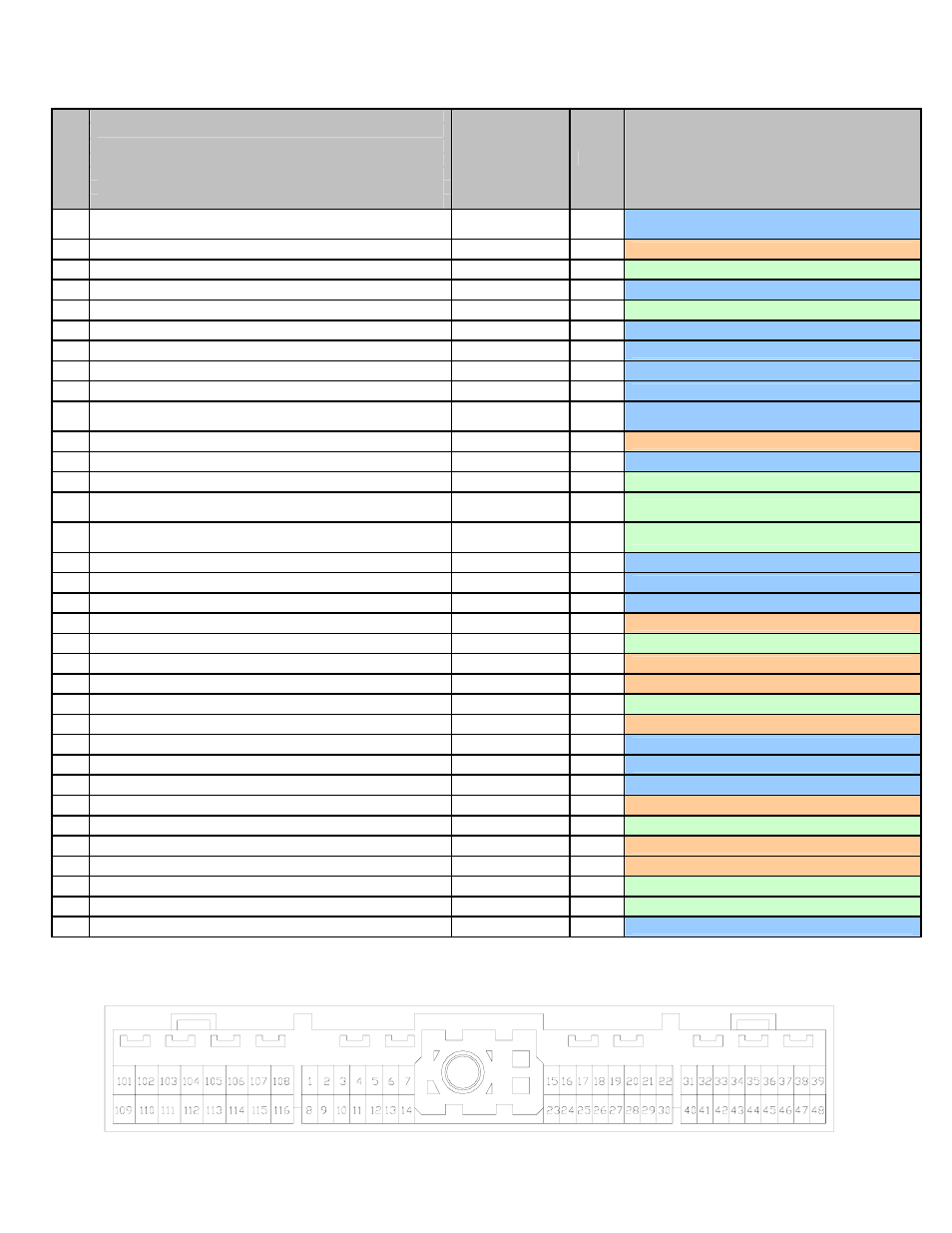

Connection Diagram for EMS P/N 30-6600
1989-1994 Nissan 240SX S14 KA24DE
1991-1994 Nissan Sentra B13 GA16DE
1990-1994 Nissan Pulsar GTi-R N14 SR20DET
1991-1993 Nissan NX B13 GA16DE
1993-1994 Nissan Altima U13 KA24DE
1989-1995 Nissan Bluebird U13 SR20DET
Pin
1991-1993 Infiniti G20 P10 SR20DE
AEM EMS 30-
6600
I/O Notes
31 Crankshaft Position Sensor Signal Crank Signal Input
Dedicated, must use AEM replacement trigger
disc. Connects to pin 40
32 Vehicle Speed Vehicle Speed Input PnP for Vehicle Speed Sensor
33 Idle Sw (89-90 240SX)/5 th Pos Sw (91-94 240SX) ADCR11 Input Available, 0-5 Volt Input
34 Start Signal +12V Switched Input Dedicated
35 Neutral Position Switch MAP Input Available, Manifold Pressure
36 Ignition Switch Main Relay (input) Input Dedicated, +12V activates Main Relay circuit
37 Throttle Position Sensor Power +5V Sensor Output Dedicated
38 Power Supply for ECM +12V Switched Input Dedicated, +12V power when ECCS Relay is on
39 ECCS Ground Power Ground Input Dedicated
40 Crankshaft Position Signal Crank Signal Input
Dedicated, must use AEM replacement trigger
disc. Connects to pin 31
41 Air Conditioner Switch Switch 6 Input PnP for A/C Switch
42 4 th Position Switch (91-94 240SX only) CAN1L Input Dedicated, CAN low side
43 Power Steering Oil Pressure Switch Switch 2 Input Available, Switched Input
44
Idle Switch Positive Side (89-90 240SX);
Rear window defogger (91-94 240SX)
EGT 3 Input Available, jumper set for 0-5V Input
45
Air Conditioner FICD (Except 2.0L);
Position Sw (89-90 240SX)
Low Side 2 Output Available, Switched Ground, 1.5A Max
46 Back-up Power Supply Permanent +12V Input Dedicated, used to store internal log
47 Power Supply for ECM +12V Switched Input Dedicated, +12V power when ECCS Relay is on
48 ECCS Ground Power Ground Input Dedicated
101 Injector 1 Injector 1 Output PnP for Injector 1 (Peak & Hold 4A/1A driver)
102 Pulse Secondary Air Inj (240SX & 91-93 2.0L only) Low Side 4 Output Available, Switched Ground, 1.5A max
103 Injector 3 Injector 3 Output PnP for Injector 3 (Peak & Hold 4A/1A driver)
104 Fuel Pump Relay control Low Side 11 Output PnP for Fuel Pump
105 EGR Control Solenoid Valve Injector 6 Output Available, Switched Ground, 1.5A max
106 Pressure Regulator Control Sol (89-90 240SX only) Low Side 9 Output PnP for Fuel Pump
107 ECCS Ground Power Ground Input Dedicated
108 ECCS Ground Power Ground Input Dedicated
109 Back-Up Power Supply Permanent +12V Input Dedicated, used to store internal log
110 Injector 2 Injector 2 Output PnP for Injector 2 (Peak & Hold 4A/1A driver)
111 O2 Sensor Heater (91-94 2.0L & 94 1.6L only) PW 2 Output Available, Switched Ground, 1.5 max
112 Injector 4 Injector 4 Output PnP for Injector 4 (Peak & Hold 4A/1A driver)
113 Idle Auxiliary Air Control Valve PW 1 Output PnP for Idle Air Control
114 --- Injector 8 Output Available, Switched Ground, 1.5A max
115 --- EGT 4 Input Available, jumper set for 0-5V Input
116 ECCS Ground Power Ground Input Dedicated
Wire View of AEM EMS
