AEM 30-6310 Series 2 Plug & Play EMS User Manual
Page 13
Page 13 of 15

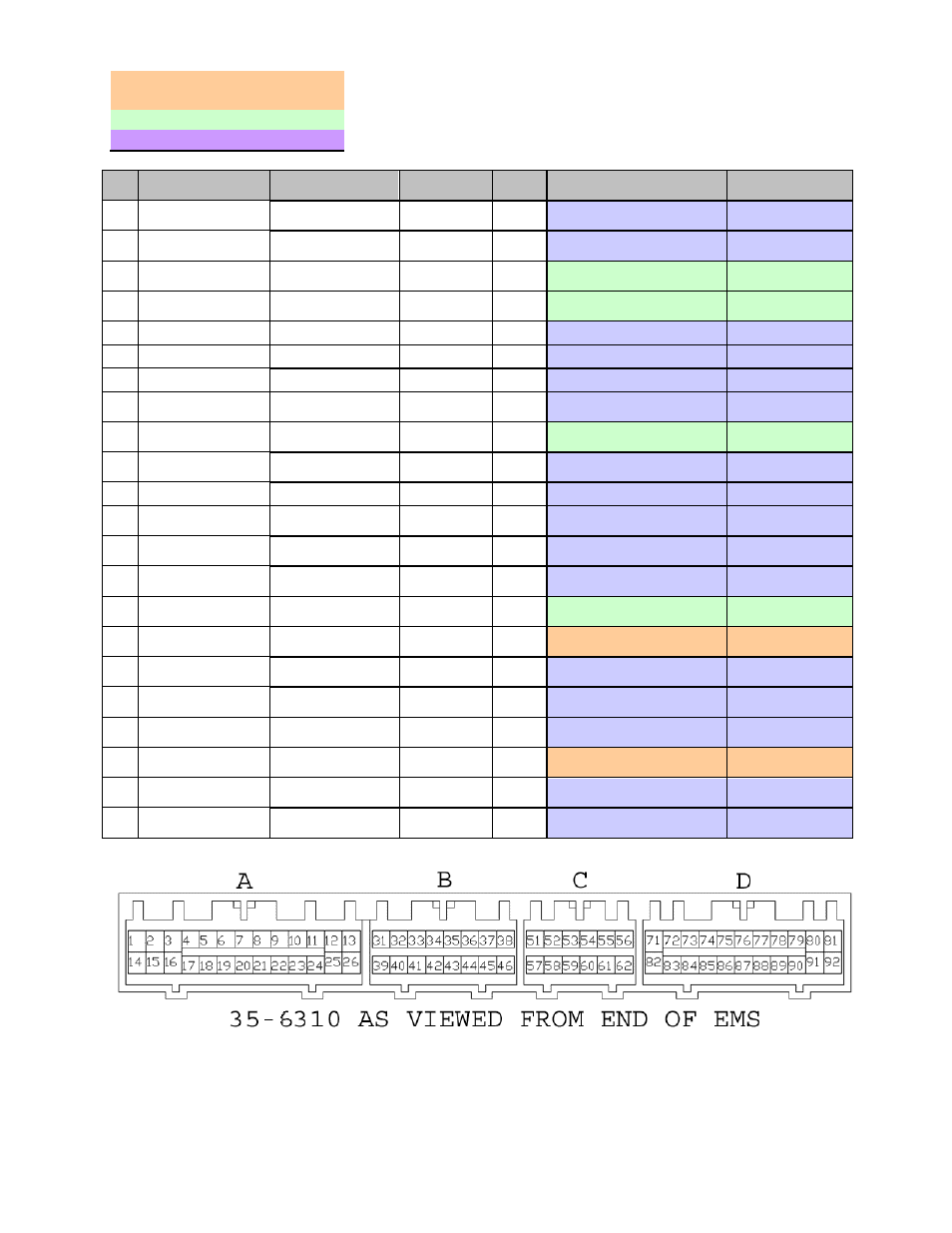

Connection Diagram for EMS P/N 30-6310
PnP
Means the Plug and Play system comes with this configured for proper operation of this
device. Is still available for reassignment by the end user.
Avail
Means the function is not currently allocated and is available for use
Dedicated
Means the location is fixed and cant be changed
Pin
95 - 99 Eclipse
Turbo / Talon Tsi
2003-2005 Evo VIII
AEM EMS
30-6310
I/O
95 - 99 Eclipse/Talon Notes
2003-2005 Evo VIII
Notes
71
Starter Signal
<--
Main Relay
(Start sw)
Input
Dedicated, activates Switch 1
input
<--
72
Intake Air Temp
Sensor
<--
AIT
Input
Dedicated, 2.2k ohm pull-up
to 5V
<--
73
Manifold Differential
Press. Sensor
<--
MAP
Input
Avail, 0-5V MAP sensor input
<--
74
---
Fuel Level In
EGT #1
Input
Avail, jumper set for 0-5V
Input
<--
75
O2 Sensor Rear
<--
O2 #2
Input
Dedicated, 0-5V signal
<--
76
O2 Sensor Front
<--
O2 #1
Input
Dedicated, 0-5V signal
<--
77
---
Fuel Temperature
CAN1L
---
Dedicated
<--
78
Knock Sensor
<--
Knock #1
Input
Dedicated, software knock
filter
<--
79
---
Data Link
Connector
MAF
Input
Available, 0-5V sensor input
<--
80
Battery Back Up
<--
Permanent
+12V
Input
Dedicated, used to store
internal log
<--
81
5V sensor supply
<--
+5V Sensor
Output
Dedicated, sensors only
<--
82
Ignition Switch
<--
Main Relay
(Ign sw)
Input
Dedicated, activates Switch 1
input
<--
83
Engine Coolant
Temp. Sensor
<--
Coolant
Input
Dedicated, 750 ohm pull-up
to 5V
<--
84
Throttle Position
Switch
<--
TPS
Input
Dedicated, 100k ohm pull-up
to 5V
<--
85
Atmospheric
Pressure Sensor
<--
Baro Volts
Input
Available, 0-5V sensor input
<--
86
Vehicle Speed
Sensor
<--
T3 (Vehicle
Speed)
Input
PnP for Vehicle Speed
Sensor
<--
87
Throttle Position
Switch
---
CAN1H
---
Dedicated
<--
88
Camshaft Position
Sensor
<--
Cam
Input
Dedicated, Camshaft sensor
<--
89
Crankshaft Position
Sensor
<--
Crank
Input
Dedicated, Crankshaft
sensor
<--
90
Volume Air Flow
Sensor
<--
T4 (Spare
Speed)
Input
PnP for frequency MAF input
<--
91
---
H2O Spray Manual
Sw
Ground
Output
Dedicated
<--
92
Sensor Ground
<--
Sensor
Ground
Output
Dedicated, sensors only
<--
