AEM 30-2860 Coil-On-Plug COP Conversion Kit User Manual
Page 6

Page 6
10-2860 B Series COP Instructions RevB 111117
B Series COP Harness
Lay the B Series COP harness over the cylinder head and connect the coil connectors
to the coils. See Figure 7 below. Make sure the connectors are fully seated and locked
into position.
Route the harness through the engine bay, away from any high heat sources and sharp
objects. The branch labeled “EMS” should be routed towards the ECU. The branch
labeled “Power” should be routed towards the power source.
Igniter
With the harness routed, find a suitable mounting location for the igniter and mount the
igniter. Two #6 screws are supplied for mounting the igniter to the firewall or engine
bay. Connect the two igniter connectors from the harness to the igniter. Make sure the
connectors are fully seated and locked into position. See Figure 8 below.

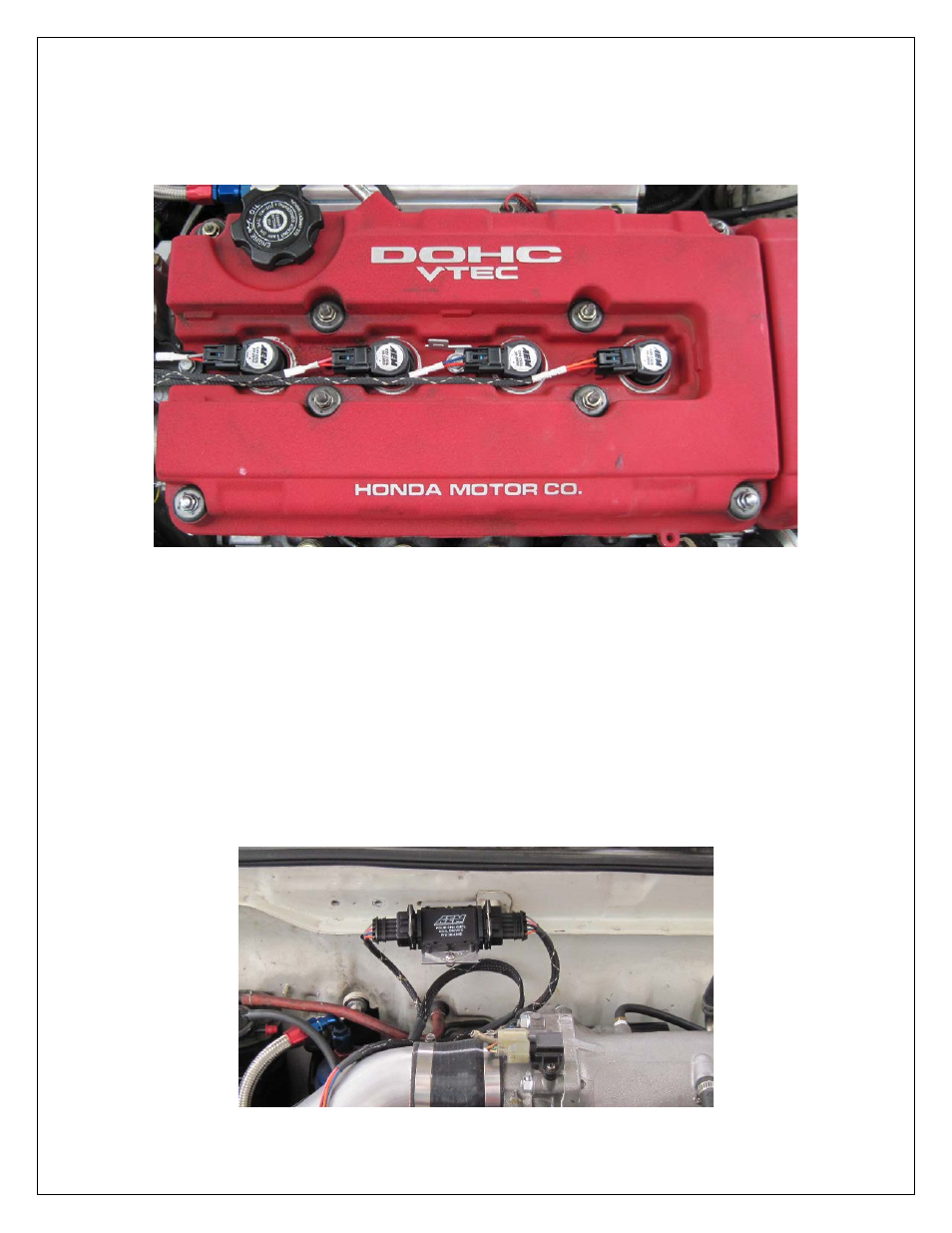

Figure 7. B Series COP Harness Connected to Coils
Figure 8. Igniter Mounted and Connected to B Series COP Harness
