AEM 30-2860 Coil-On-Plug COP Conversion Kit User Manual
Page 14
Page 14
10-2860 B Series COP Instructions RevB 111117
Remove the four screws and spacers that hold the two circuit boards together. The
screws are threaded into round nuts on the bottom of the boards. See Figures 19 and
20 below.
With the four screws and spacers removed, the circuit boards can be separated. Hold
the circuit boards as shown below in Figure 21.

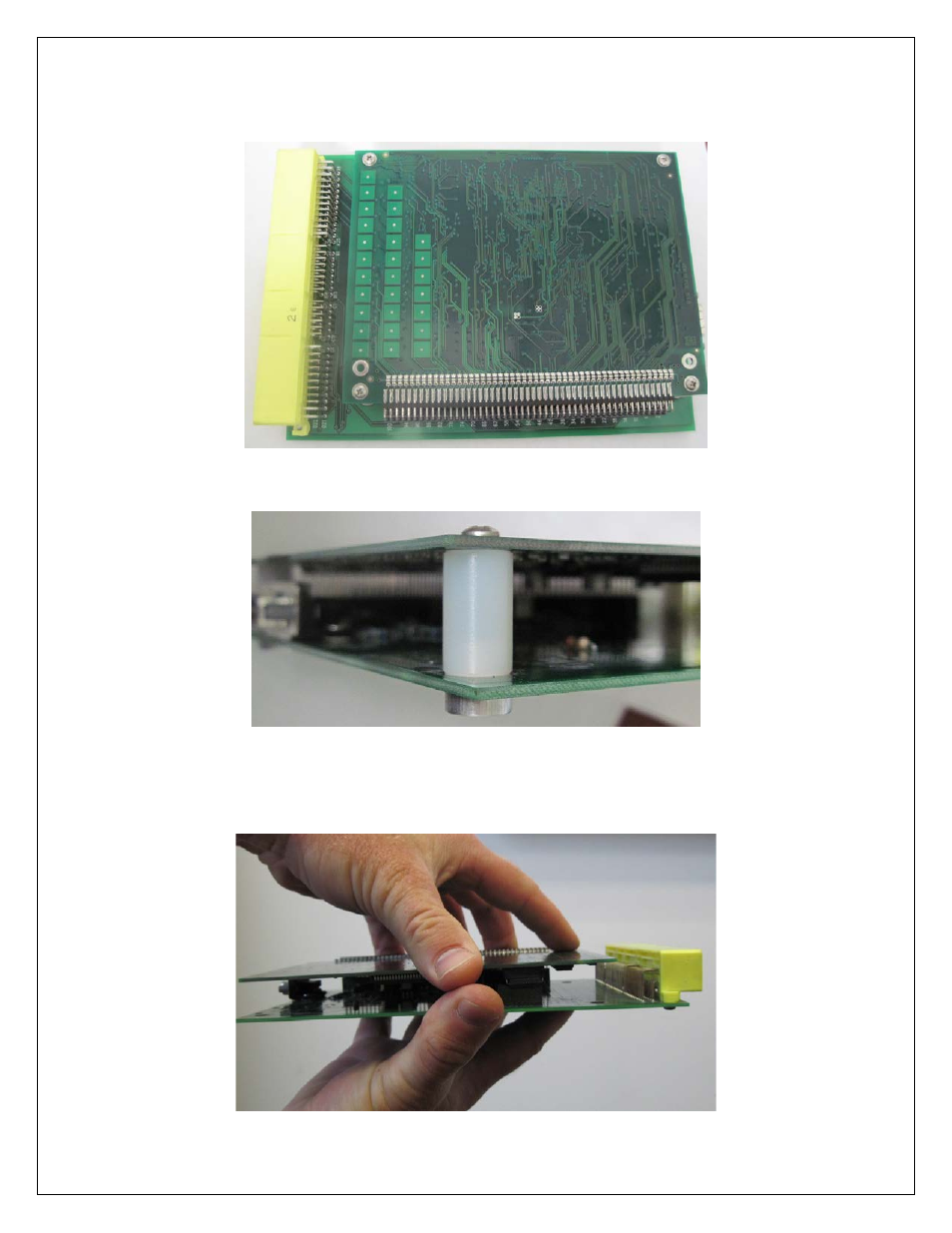

Figure 19. Top View of Circuit Boards Showing Four Mounting Screws
Figure 20. Circuit Board Screw, Spacer, and Nut
Figure 21. Holding Circuit Boards for Separation
