Software

Plot Data and Control

AEM supplied layout files will come pre-loaded with several “Plot Control” windows. (Users can
always add, delete or edit them as desired.) These are special controls that allow real time data
logging and playback. To begin a PC log, go to the Log menu and select Start recording or hit
the “CTRL + L” hot key. Select Stop recording or hit the “CTRL + L” hot key again to stop
logging. A dialog will ask if you want to save the data or not. If you select “Yes,” you will be
prompted to save the current session file. A session file contains all the current configuration and
calibration data along with a log file. If you open that session file again, the file will be loaded and
all plot controls will be populated with the recorded data.

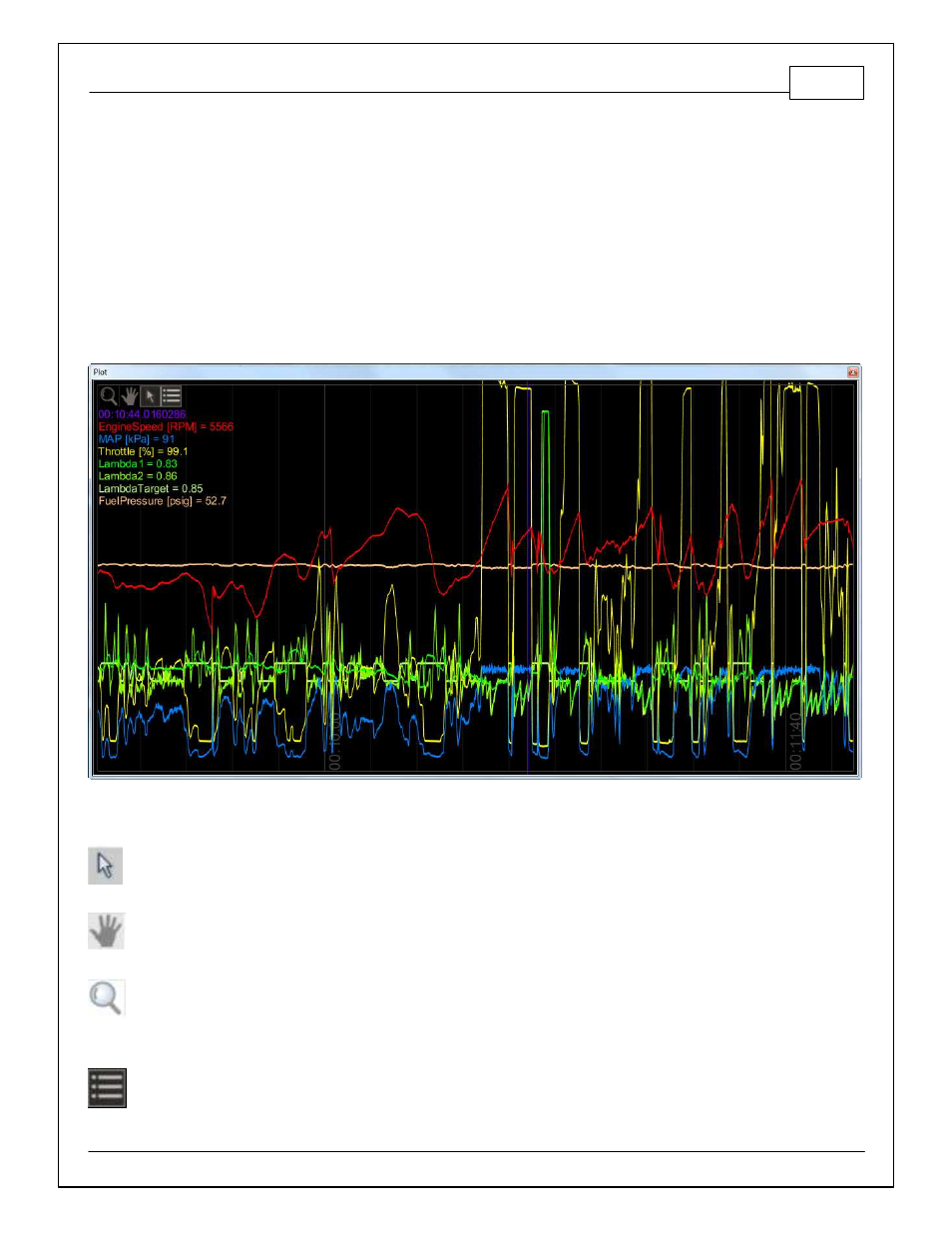

Plot Window Tools

Selection tool: Choose this icon by clicking on it then left click and drag through the plot

window to view current data values.

Pan tool: Choose this icon by clicking on it then left click and drag through the plot window

to pan the data left or right. Hot Key – Left/Right arrow

Zoom tool: Choose this icon by clicking on it then left click and drag up and down to zoom in

and out. Alternatively, a mouse scroll wheel can be used after selecting the zoom tool. Hot Key –
Up arrow/Page up, Down arrow/Page down

Show legend: Displays or hides the data legend.
