I NSTALLATION I NFRARED /R ADIANT C OMPACT B ROILER
P AGE 14 OF 24 I NSTALLATION & O PERATIONS M ANUAL 1186529 R EV 3 (12/06)
S
TEP
2
A
: M
OUNT ON
F
LUE
R
ISER OF
R
ANGE
The Infrared/Radiant Compact Broiler mounts over a range. A special flue riser is shipped with the broiler and range.
Depending on the shipping requirements, the broiler, flue-riser, and range base may already be partially or completely
assembled.
1. Attach the flue riser to the rear of the range using the installation procedure included in the range manual, but do
not attach the wall shield (the back of the flue riser) yet.
2. Lift the broiler (using two people is recommended) and hook the broiler-hook over the top-front edge of the flue
riser. If necessary, move the broiler left or right so that the holes in the top of the broiler hook line-up with the
holes in the top of the flue riser, then secure the broiler-hook to the flue riser using three #10 self tapping screws -
provided.
3. Secure the bottom of the broiler to the flue riser with the four ¼” self-tapping screws provided. The holes are
accessible from the rear of the unit behind the wall shield.
4. If the optional internal piping from the broiler to the range was ordered, connect the gas line now (as described in
Step 3), before attaching the wall shield.
5. Attach the wall shield, which forms the rear of the flue riser. The gas supply inlet extending out from the rear of
the broiler should be accessible through the corresponding hole on the back of the flue riser.
6. Go on to Step 3.

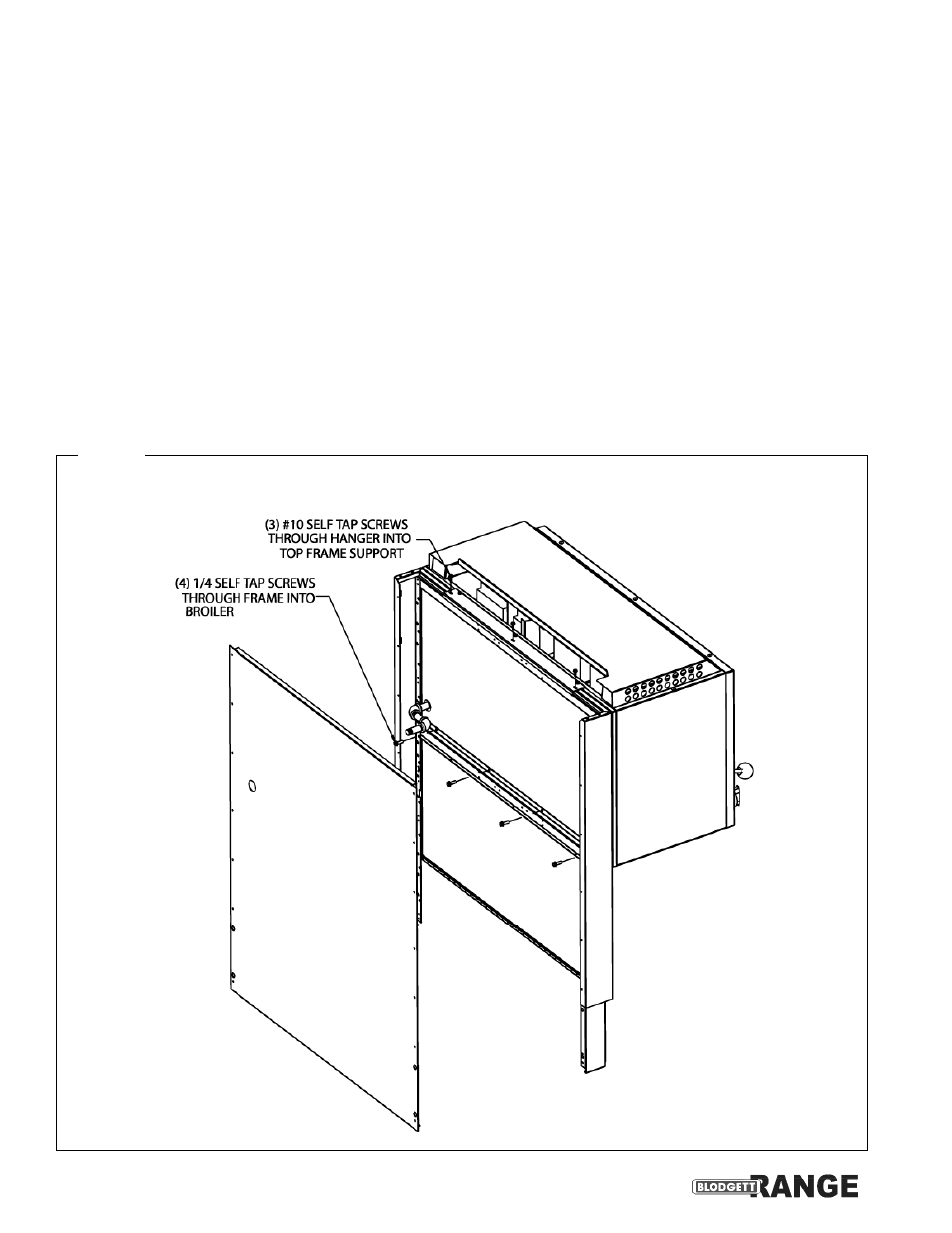

Figure 4
Mounting of Infrared/Radianr Compact Broiler on Flue-Riser
