Tighten 12mm bolt install 10mm bolt – GrimmSpeed Hood Struts User Manual
Page 7

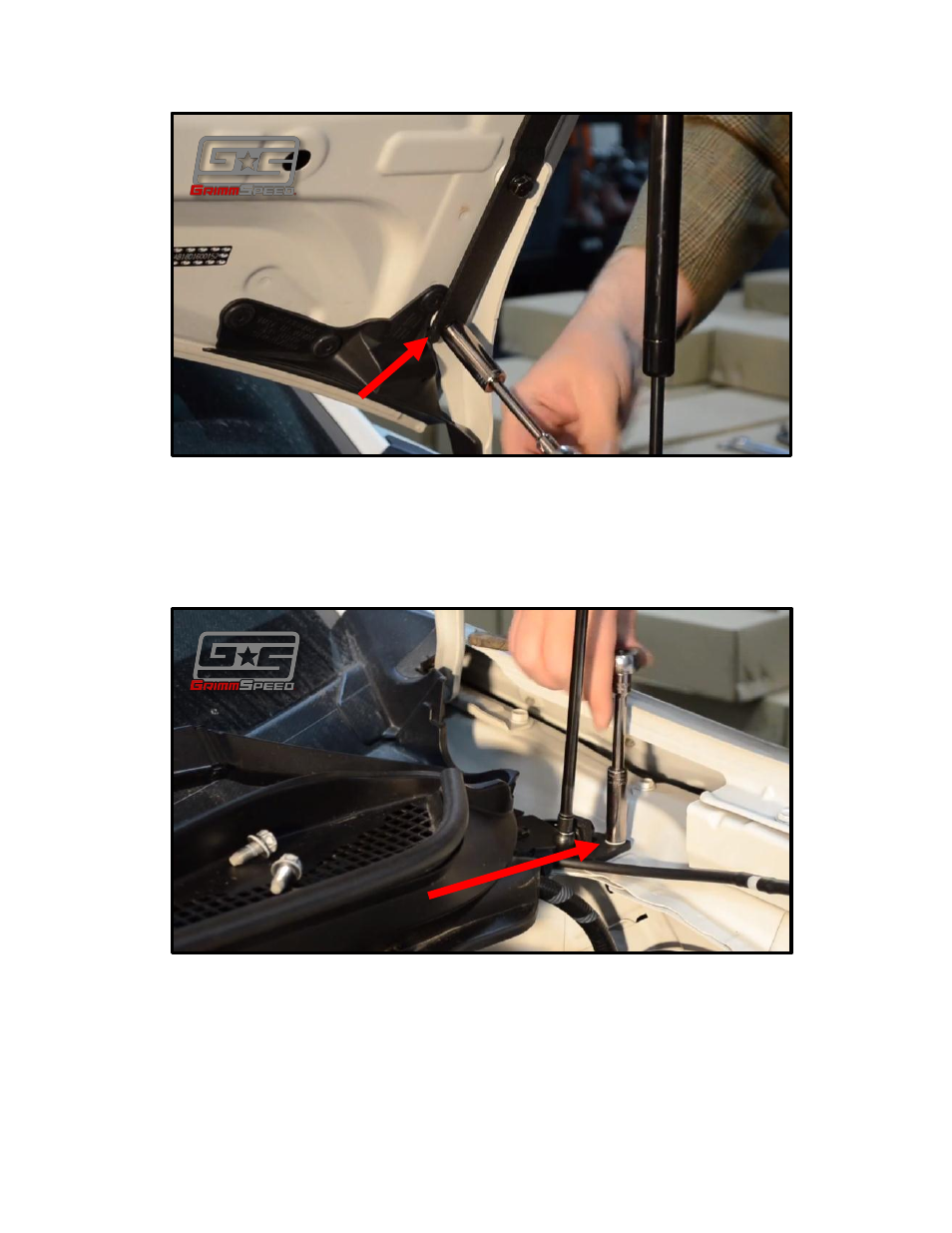

Figure 13: Loosen lower hood hinge bolt.
11. Next, maneuver the lower bracket into place. If you assembled things
correctly, the through hole should line up with the threaded chassis hole and
the tab should slip into a hole in the chassis. Reinstall the stock 10mm bolt as
shown.
Figure 14: Install lower bracket.
12. Repeat this process on the opposite side and you should be good to go!
That’s it! You should be all set to go.
Tighten 12mm bolt
Install 10mm bolt
