GrimmSpeed Hood Struts User Manual
Page 4

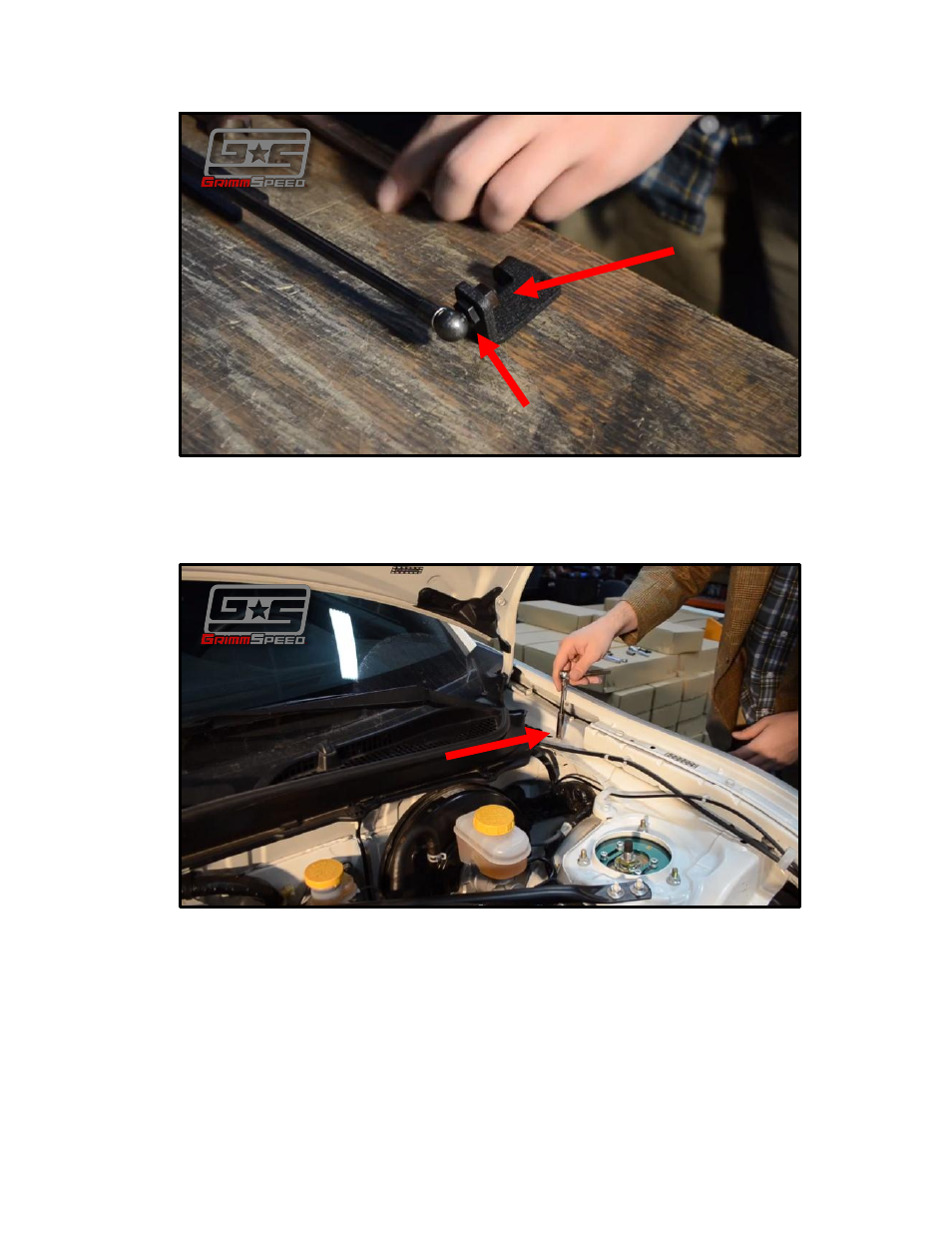

Figure 7: Attach lower bracket
7. Begin installation by removing the bolt for the lower bracket. Set it aside, as
we’ll be reusing it.
Figure 9: Remove lower bolt
8. We’ll install the upper bracket first. Remove the OEM bolt and replace it with
one of the bolts from our kit. Do not install it all the way, as you’ll need to slip
the bracket onto it.
Remove 10mm bolt
1/2in
13mm
