Install bumper 13mm 1/2in – GrimmSpeed Hood Struts User Manual
Page 3

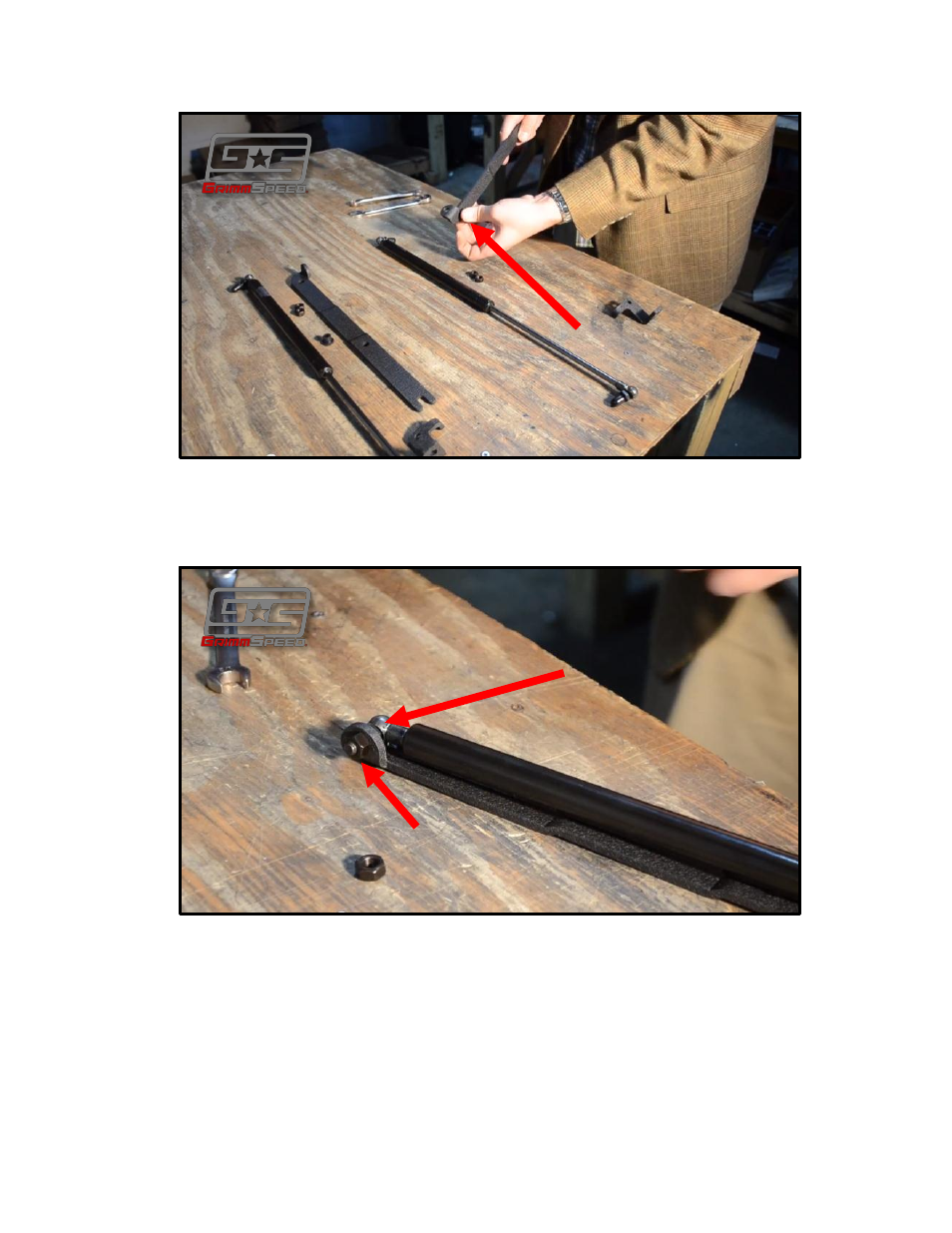

Figure 5: Installing rubber bumper
5. Now we’ll begin by bolting the strut itself to the upper bracket. Use a 13mm
wrench on the ball stud and a 1/2in wrench on the nut.
Figure 6: Attach upper bracket
6. Next, bolt the strut to the lower bracket. Take care to make sure that you’re
using the correct lower bracket. We matched them up properly in step 3.
Once again, use a 13mm wrench on the ball stud and a 1/2in wrench on the
nut.
Install bumper
13mm
1/2in
