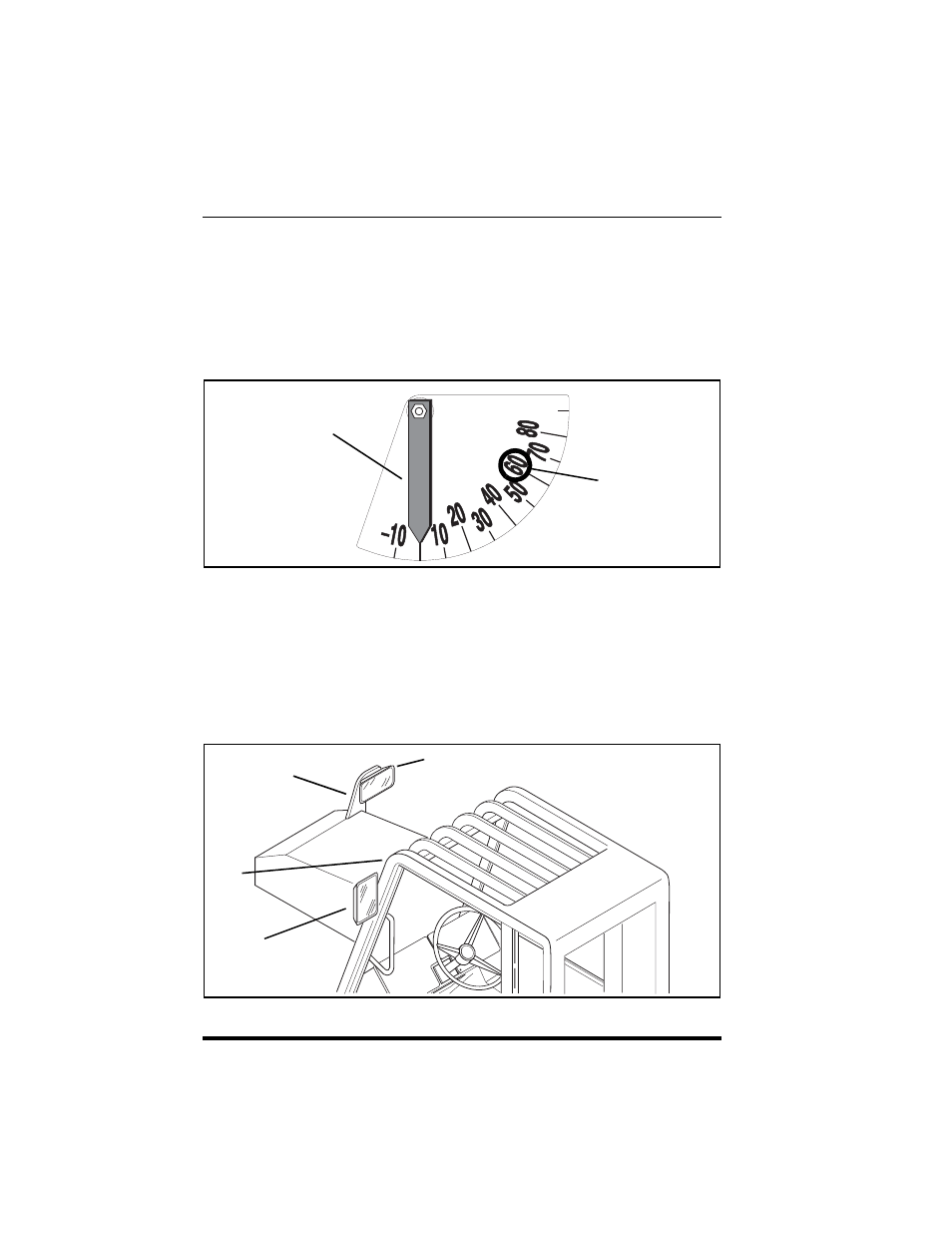

Boom Angle Indicator
(Figure 22)
The boom angle indicator is a plumb arrow (Figure 22, 1) with angular
graduations (2) from minus 10° to plus 80°. It is located on the left side of
the boom and is visible from the operator’s position. Use this indicator to
determine the boom angle when reading the capacity chart (see “Using The
Capacity Chart”).
Figure 22
Rear View Mirrors
(Figure 23)
Two rear view mirrors are provided to aid the operator's rear vision. A
rectangular flat lens mirror (Figure 23, 1) is mounted on the upper left of the
cab (2). A convex lens mirror (3) is mounted on the right side of the frame
(4). Both mirrors are adjustable to obtain the best rear view by the operator.
Figure 23
