General Maintenance
The fuses and relays in this vehicle protect the electrical system. The fuses
most often fail if there is a short or grounded wire in the applicable circuit.
The fuses will have to be replaced if they fail. If fuses continually fail, check
the system for shorts, grounds or defective electrical components.
The fuses and relays are mounted inside the right side console in the
operators cab. To gain access, remove the screws (Figure 93, 1) that secure
the access panel (2) in place. Refer to Figure 94 for the locations of fuses
and relays within the fuse block.

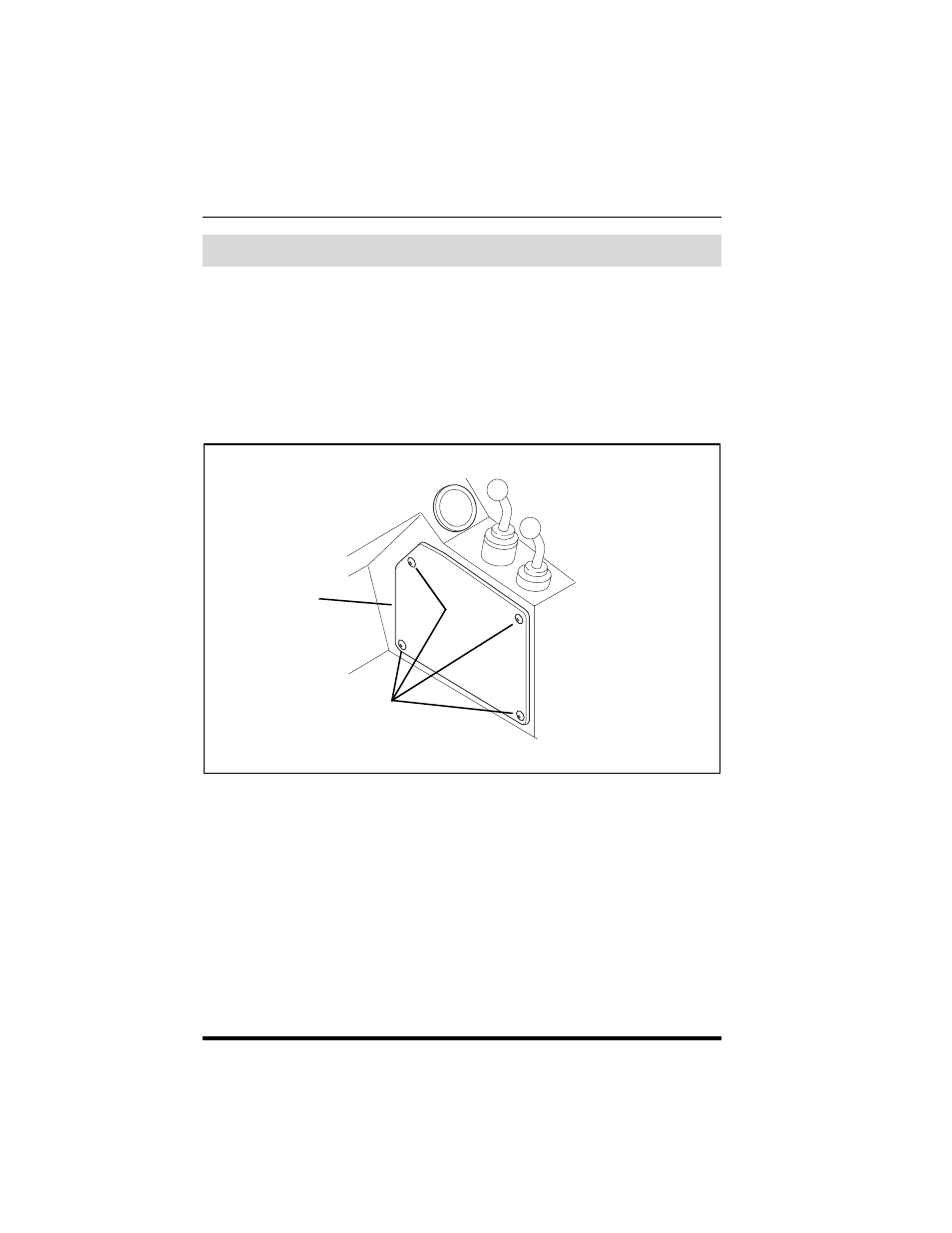

Figure 93
14. Fuse and Relay Replacement
OH2430
2
1
