4. Functional Overview

Terminals

q Data 2 in

Input socket for connecting computer output [ 5 BNC Type

( Red, Green, Blue, Horiz.sync., Vert.sync.)].

w Data 1 in

Input socket for connecting computer output (Analog HDB

15-pin type) or 21-pin Scart (RGB) output from video

equipment.

e Data 3 in / Data out (Switchable)

– Input socket for connecting computer output (Analog

HDB 15-pin)

– Output socket for connecting to a Data monitor.

r Audio 1 in / Audio 2 in

Input sockets for connecting audio output (stereo) from a

computer.

t Audio 3 in / out (Switchable)

– Input socket for connecting audio output (stereo) from a

computer.

– Output socket for connecting an external audio amplifier.

y Reset button

A microprocessor included in the projector may

occasionally malfunction and need to be reset. If

necessary, press this button with a sharp tool to restart the

unit. Do not use it excessively.

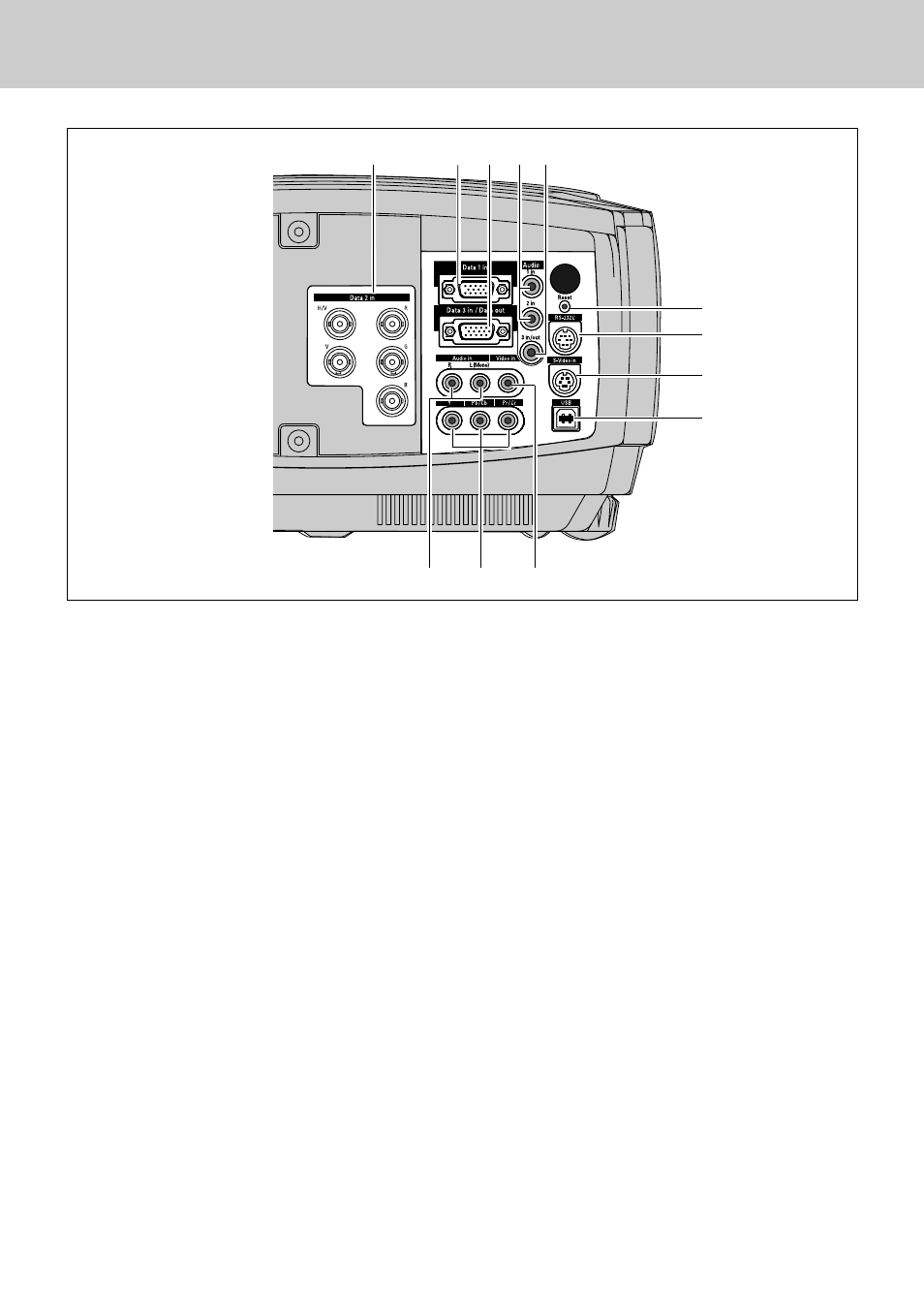

Terminals

q

w

e

r t

y

u

i

o

!0

!1

!2

u RS-232C port

For connecting to mouse port of a computer which is

controlled via the remote control of the projector.

i S-video in

Input socket for connecting S-video output from video

equipment.

o USB

For connecting a PC or Apple Macintosh computer

equipped with a USB downlink connection to control the

mouse cursor of your computer via the remote control unit.

!0 Video in

Input socket for connecting the composite video output

from video equipment.

!1 Component video input

Input socket for connecting the component video output

from video equipment.

!2 Audio in R / L

Input sockets for connecting to Audio out sockets of video

equipment.
