13

5. Set Up

Positioning the Projector

Positioning the Projector

This projector is designed to project on a flat projection

surface.

– The

projector can be focused from 4.1’ (1.2m) ~ 32.8’

(10.0m).

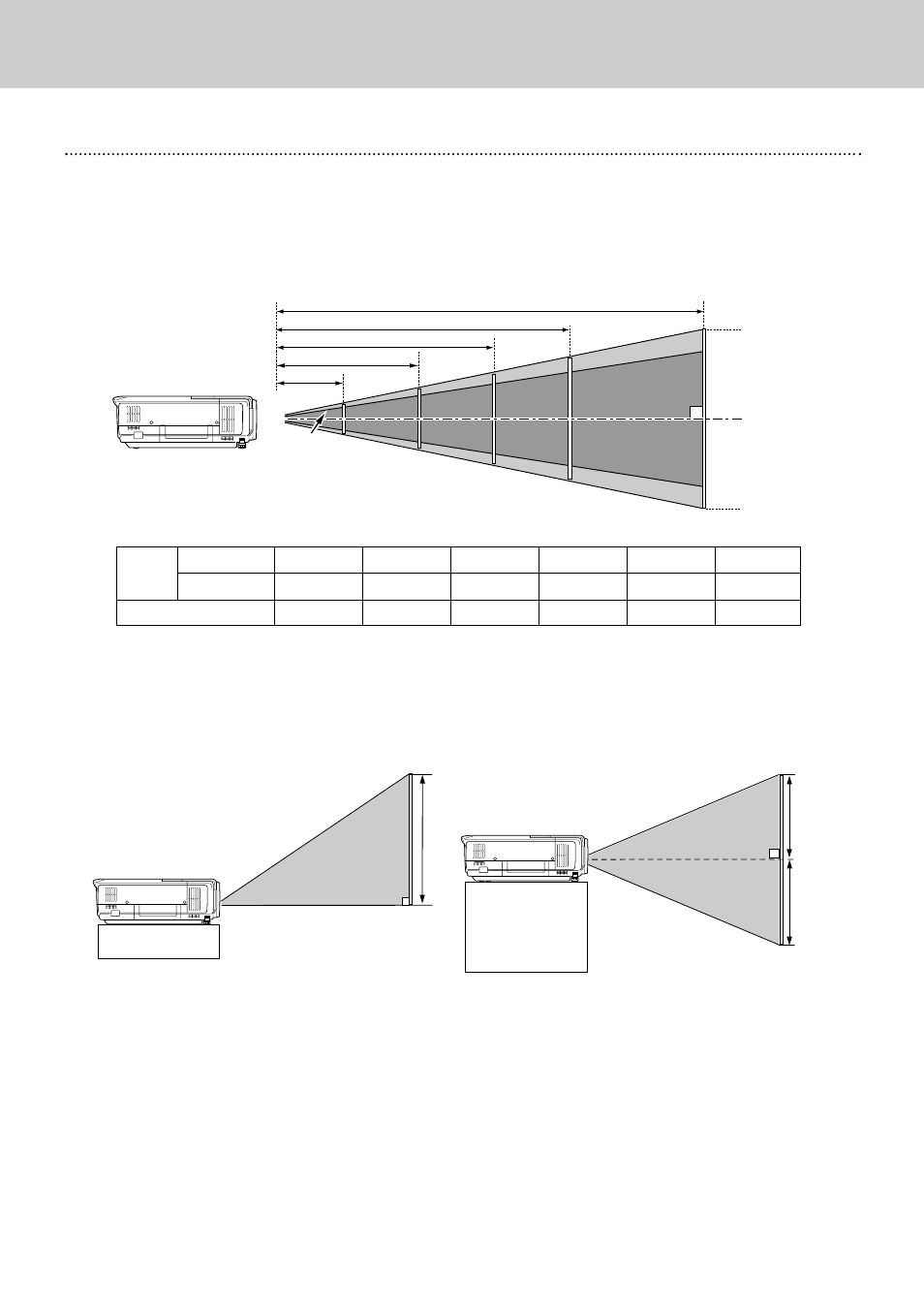

Refer to the figure below to adjust the screen size.

Screen

Size

Distance

39”

30”

4.1’ (1.2m)

39”

4.1’(1.2m)

10.8’(3.3m)

16.4’(5.0m)

22.0’(6.7m)

Max. Zoom

Min. Zoom

32.8’(10.0m)

100”

150”

200”

300”

231”

154”

115”

77”

30”

Min. Zoom

Max. Zoom

100”

77”

10.8’ (3.3m)

150”

115”

16.4’ (5.0m)

200”

154”

22.0’ (6.7m)

250”

192”

27.6’ (8.4m)

300”

231”

32.8’ (10.0m)

1

1

Lens Shift Adjustment

The Projection lens can be moved up and down with motorised lens shift function. This function makes it easy to
move up and down the projected image to an optimum position. Refer to page 21 for operation.

Note:

The brightness of a room has a great influence

on image quality. It is recommended to limit

ambient lighting to provide the best image.

The upper most lens shift.

The lower most lens shift.
