77

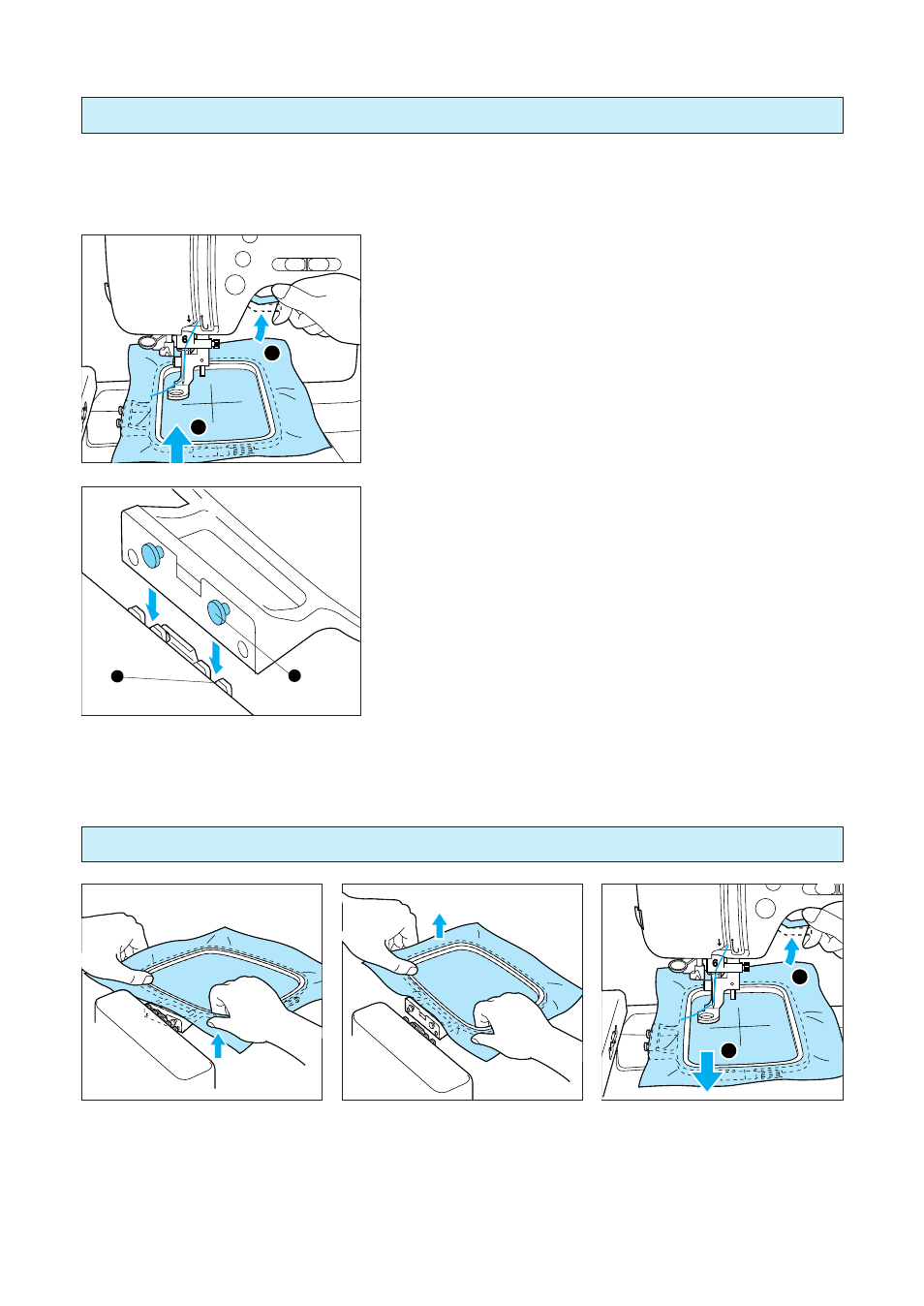

Fitting the embroidery frame to the embroidery unit
5
3
1
2
1. Raise the presser foot to its highest position. Then pass the
embroidery frame under the presser foot with the mounting
bracket on the left side and the fabric right side up.
2. Align the two pins on the embroidery unit frame holder with
the mounting bracket on the frame, and then press the frame
into the embroidery unit frame holder until a click is heard.
CAUTION
Always make sure to attach the hoop by both pins.
If the hoop is not firmly attached, it could mess up your
stitching.
1 Embroidery arm frame holder
2 Pins
CAUTION
Be sure to wait until the embroidery unit has finished initializing before fitting the embroidery
frame. (Refer to page 65.)
Removing the embroidery frame
5
3
1
2
1. While holding the frame with
both hands, pull the front of the
hoop up to lift it out of the front
pin.
2. Then pull the back of the hoop
up to lift it out of the back pin.
3. Raise the presser foot lever,
then pull frame out from under
foot.
