Alternate Setup Method

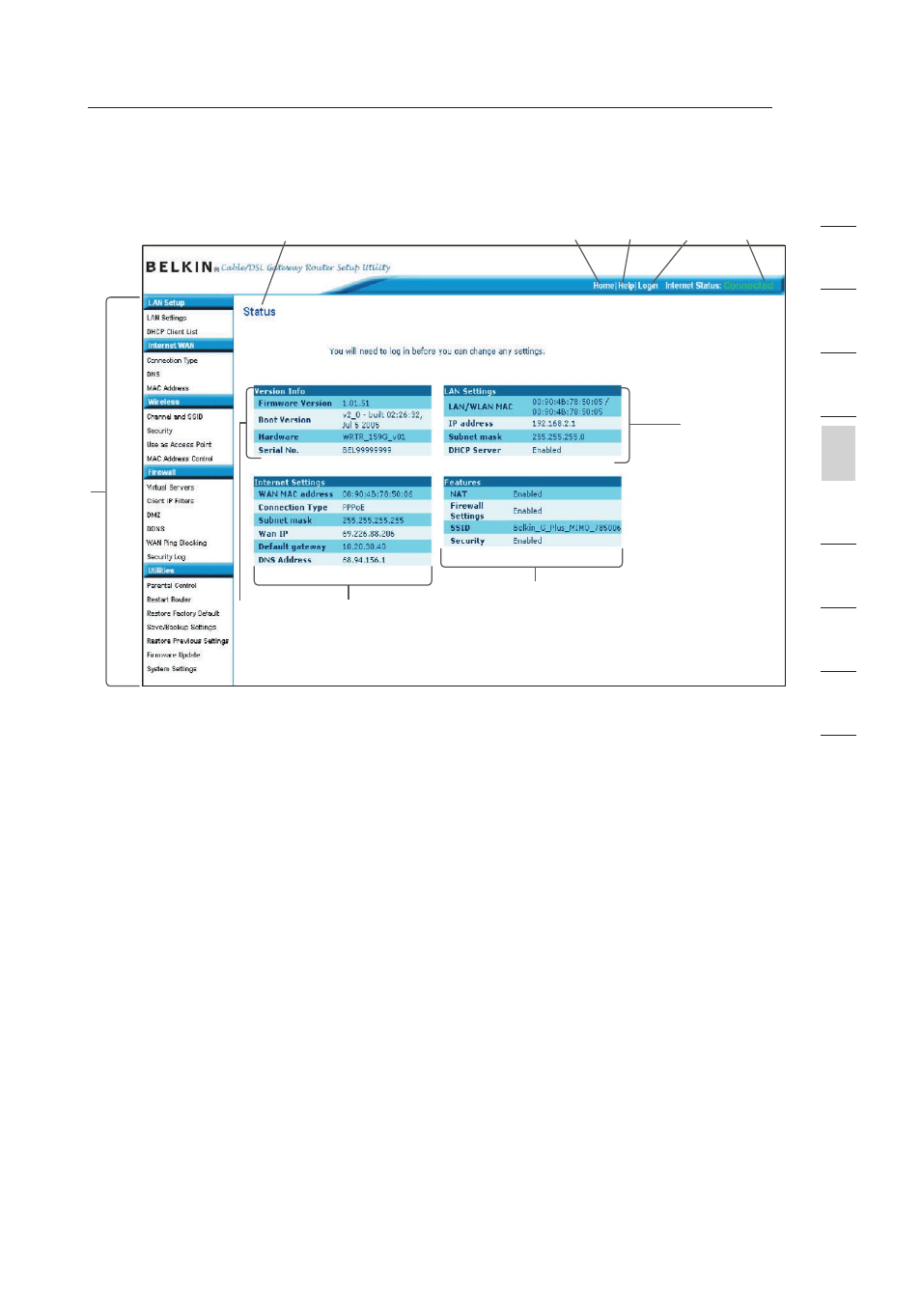

1. Quick-Navigation Links
You can go directly to any of the Router’s advanced UI pages by
clicking directly on these links. The links are divided into logical
categories and grouped by tabs to make finding a particular
setting easier to find. Clicking on the purple header of each tab
will show you a short description of the tab’s function.
2. Home Button
The home button is available in every page of the UI. Pressing this
button will take you back to the home page.
3. Internet Status Indicator
This indicator is visible in all pages of the Router, indicating
the connection status of the Router. When the indicator says
“Connection OK” in GREEN, the Router is connected to the
Internet. When the Router is not connected to the Internet, the
indicator will read “no connection” in RED. The indicator is
automatically updated when you make changes to the settings of
the Router.
