InTrODUCTIOn
1 .4 system diagram
The diagram below gives a brief outline of the OmniView IP 5000HQ
system setup. The “Understanding the System” section on page 5
explains the system setup in more detail.
1 .2 system components
The OmniView IP 5000HQ system comes with the following:
•
OmniView IP 5000HQ Manager appliance
•
IEC 10A–125V Power Cord
•
Rack-Mounting Kit
1 .3 Terminology
Below are some terms and their meanings used in this manual.
Term
Meaning
Targets
Computers/servers and other devices, e.g.,
printers, firewalls, PDUs, etc., that are accessed
remotely via the OmniView IP 5000HQ
Client
computer
The PC running a remote OmniView IP 5000HQ
session
remote session
The process of accessing and controlling
targets connected to a KVM-over-IP device from
a client computer

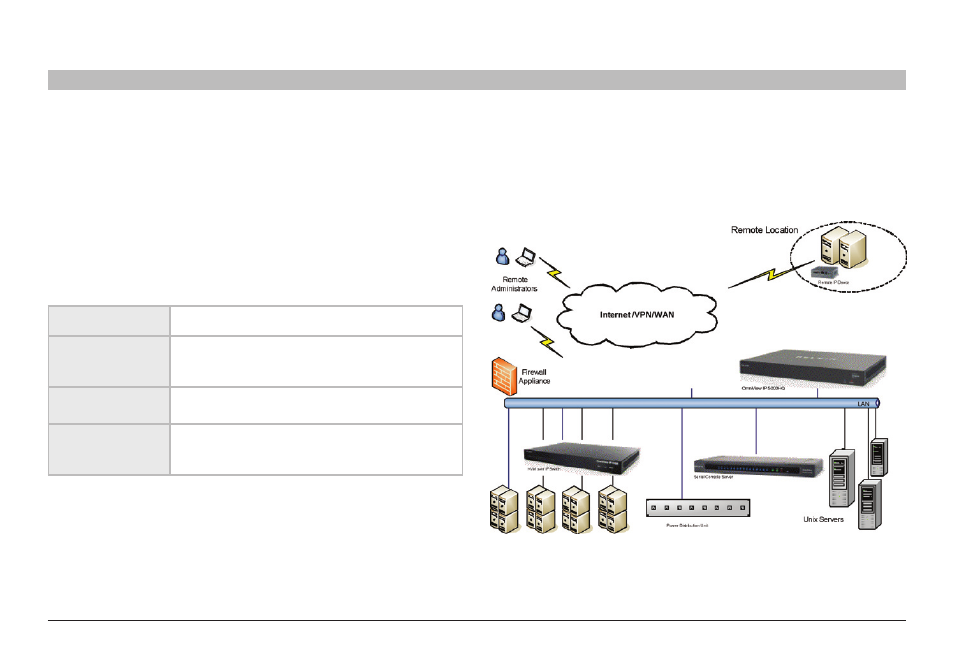

Figure 1
System diagram
