ManaGeMenT

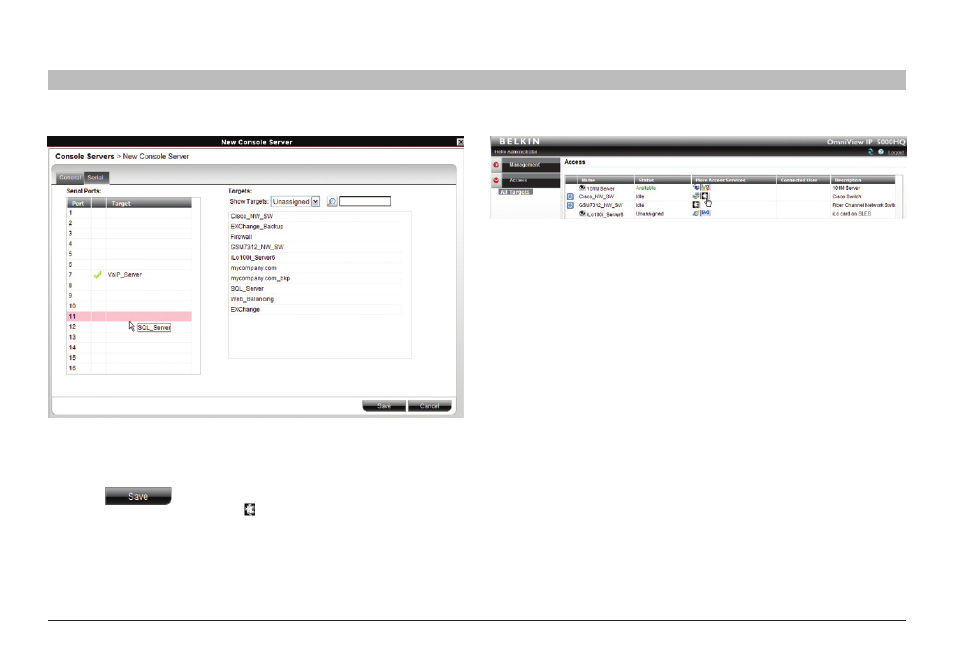

Figure 51 Adding new console servers – Serial tab
Drag the target name from the right side’s current targets list to the left
side’s corresponding serial port. Double-click on the target name on the
right side to remove the selection. Repeat for each power outlet,
and click
when you’re done. Your console server has been
configured and the console server ( ) becomes available from the
“Access” tab.
Figure 52 Using console servers
8 .3 setting each OmniView KVM-over-IP switch to be OmniView IP
5000HQ-enabled
In order to be managed by OmniView IP 5000HQ, all Belkin KVM IP devices
must be configured to be HQ. See the “Setting Up the System” section on
page 10.
Tip! Since KVM IP devices only appear in the “New Devices” list once they
are HQ-enabled, make each KVM IP device HQ-enabled in a certain order
with a suitable time gap, so that you can identify the unit’s location.
