LK3-B448E MARK II /BA-16
39
10. Adjustments
q
q
e
w
r
q
B
A

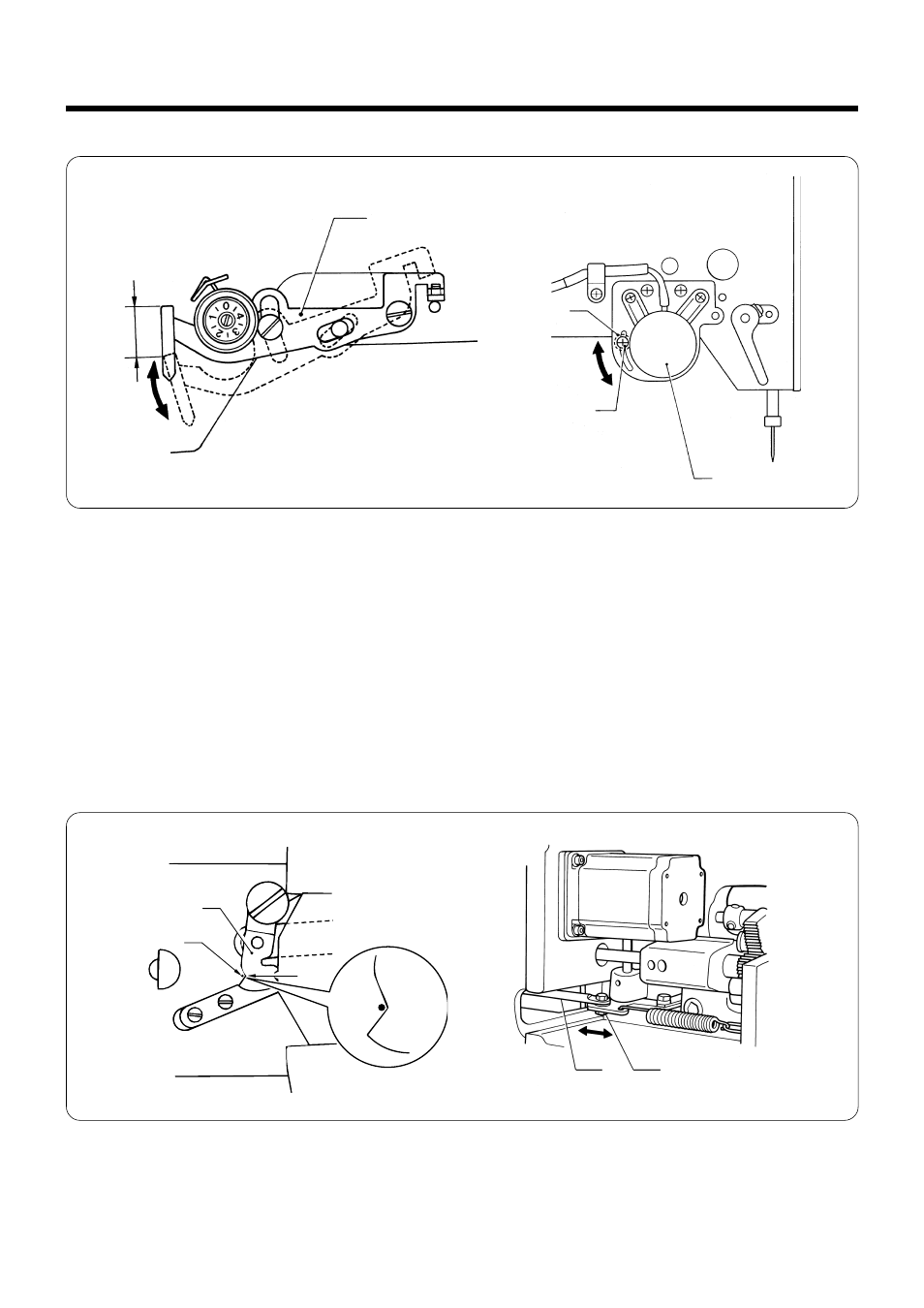

10-6.Adjusting the thread take-up amount
10-7 . Adjusting the movable knife
e w
Thread take-up amount (stroke)
Become less
Become greater
At the time of shipment from the factory, the thread take-up amount (stroke) of the thread take-up lever
q
is set to the
standard setting of 5 mm. You may need to adjust this setting depending on the sewing conditions to prevent the
thread from pulling out at the sewing start.
[Adjustment method]
Loosen the screw
w
and move the stopper (3.57 nut)
e
to adjust the operating angle of the thread take-up
solenoid
r
.
* To reduce the thread take-up amount, move the stopper e upward.
* To increase the thread take-up amount, move the stopper
e
downward.
NOTE:
Do not increase the stroke of the thread take-up lever any more than is necessary.
If the sub-thread tension is too high, the needle thread length may become too short and the thread may come out of the needle.
Furthermore, if the sub-thread tension is too weak, the needle thread length may become too long and the underside of the
article being sewn may become untidy.
Loosen the nut w and move the connecting rod lever e to the left or right to adjust so that the V section A is aligned
with the index bark B on the needle plate when the sewing machine in the stopped position and the movable knife
q
is moved toward the index mark.
