Page 24

LK3-B448E MARK
II
/BA-16
17
3. Installation

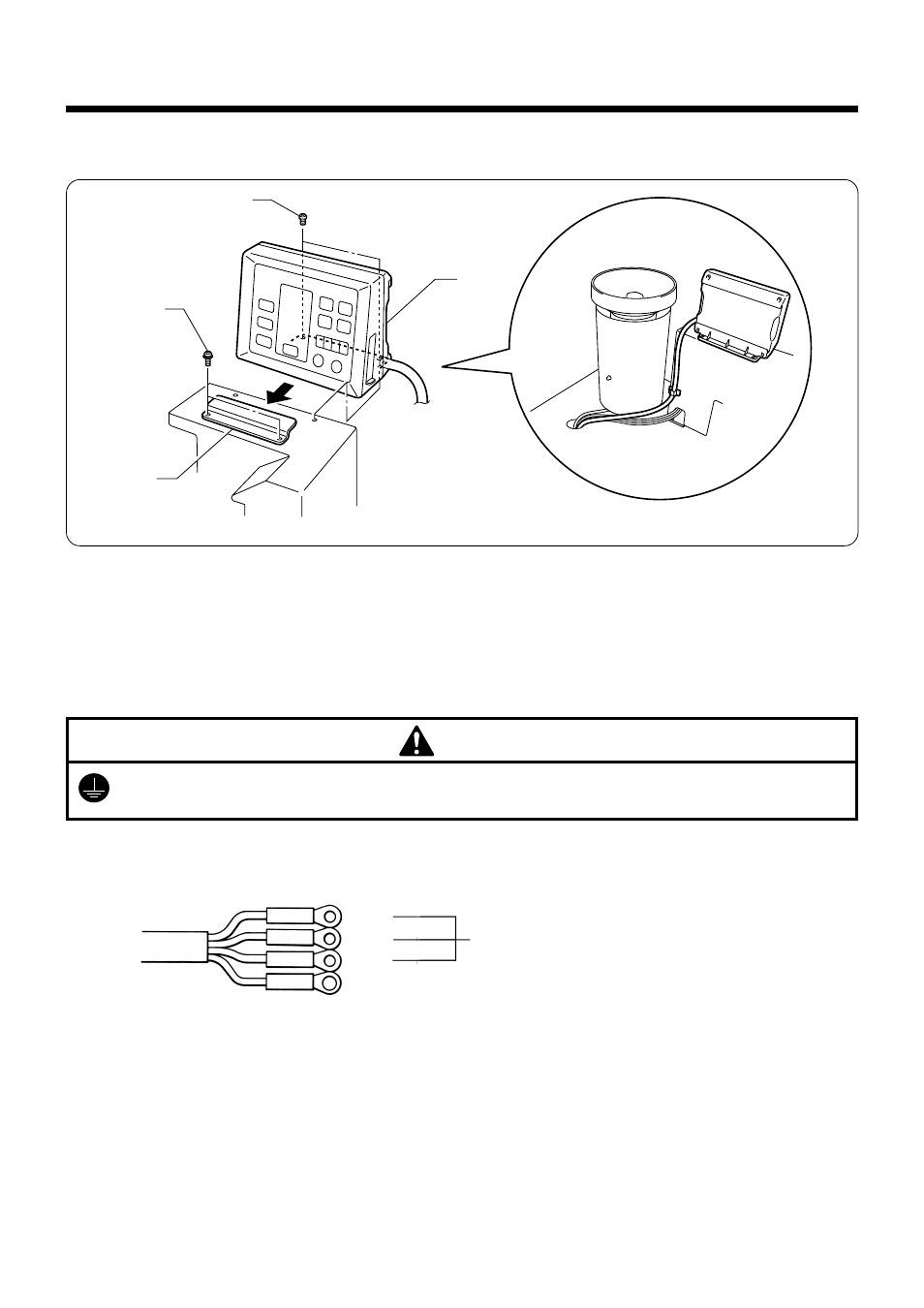

3-16. Installing the operation panel
The operation panel can be installed to either the top or bottom of the work table.
3-17. Connecting the ground wire
CAUTION
Be sure to connect the ground. If the ground connection is not secure, you run the risk of receiving a
serious electric shock, and problems with correct operation may also occur.
1. Install the operation panel presser plate
q
to the top of the button feeder cover with the two screws
w
.
2. Insert the panel
e
into the operation panel presser plate
q
, and then secure it with the two screws
r
.
3. Insert the connector cord
t
into the control box through the hole at the side of the box. Refer to “3-13. Connecting
the cords” for details on connecting the cord.
Red
White
Black
Yellow/Green ....... Connect to ground
Connect to the power switch. However, the
black wire is insulated to the inside of the
box and is not used.
r
w
q
e
