3. Installation
LK3-B448E MARK II /BA-16

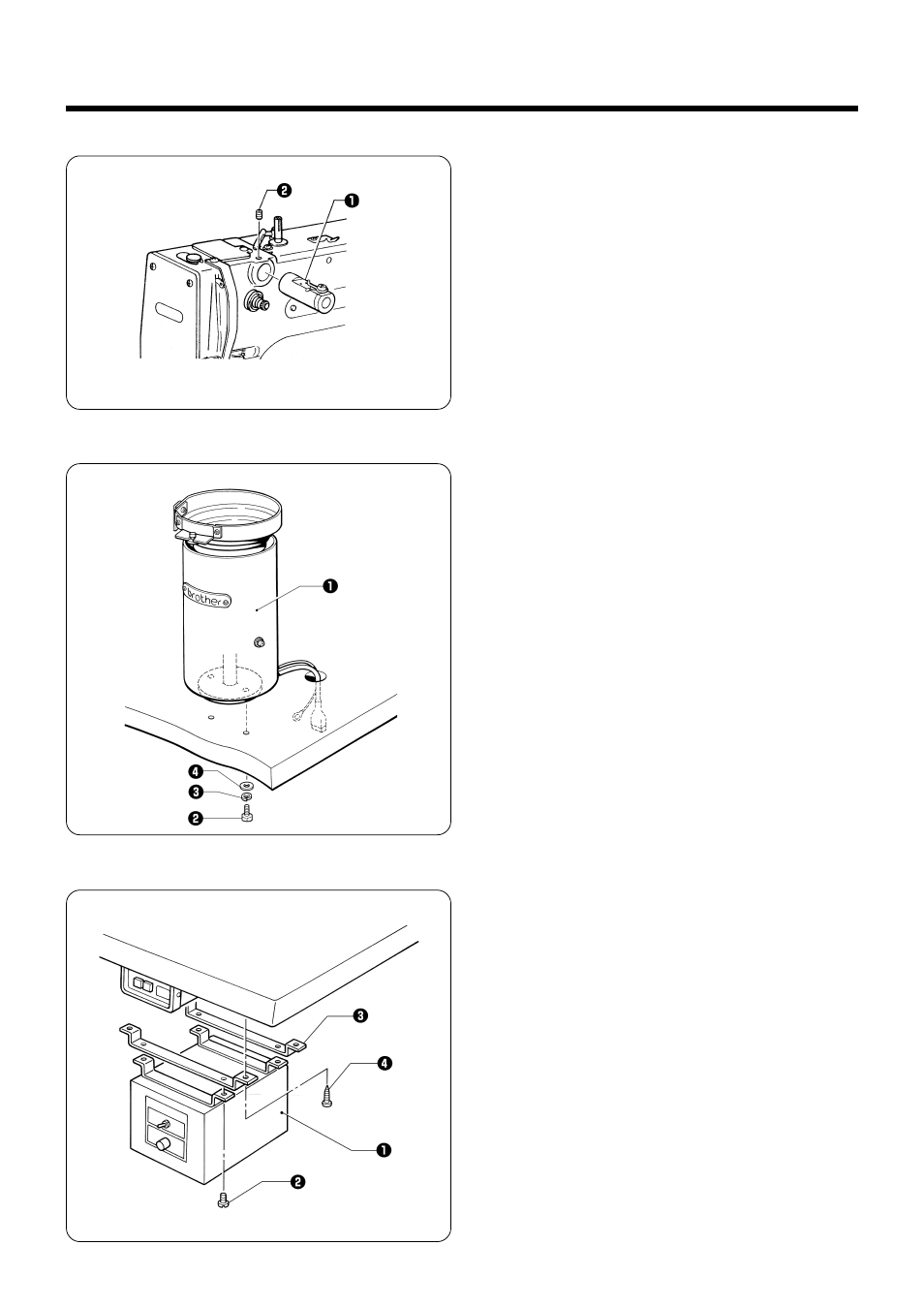

3-9. Installing the liquid cooling tank, optional
1. Install the vibration bowl
q
with bolts
w
, spring wash-
ers
e
, and washers
r
.
2. Pass the wires from the vibration bowl
q
through the
hole in the table.
1. Mount the control box
q
to the bottom of the box stay
e
with screws
w
.
2. Mount the control box stay e to the bottom of the work
table with wood screws
r
.
3-11. Installing the control box (for vibrating bowl)
3-10. Installing the vibrating bowl
1. Remove the rubber plug, and then push the liquid
cooling tank
q
.
2. Tighten it with the set screw
w
.
