Connecting the dynadock™ to the Computer

1. Plug the AC adaptor cord/cable into the DC-IN on the back of the

dynadock.

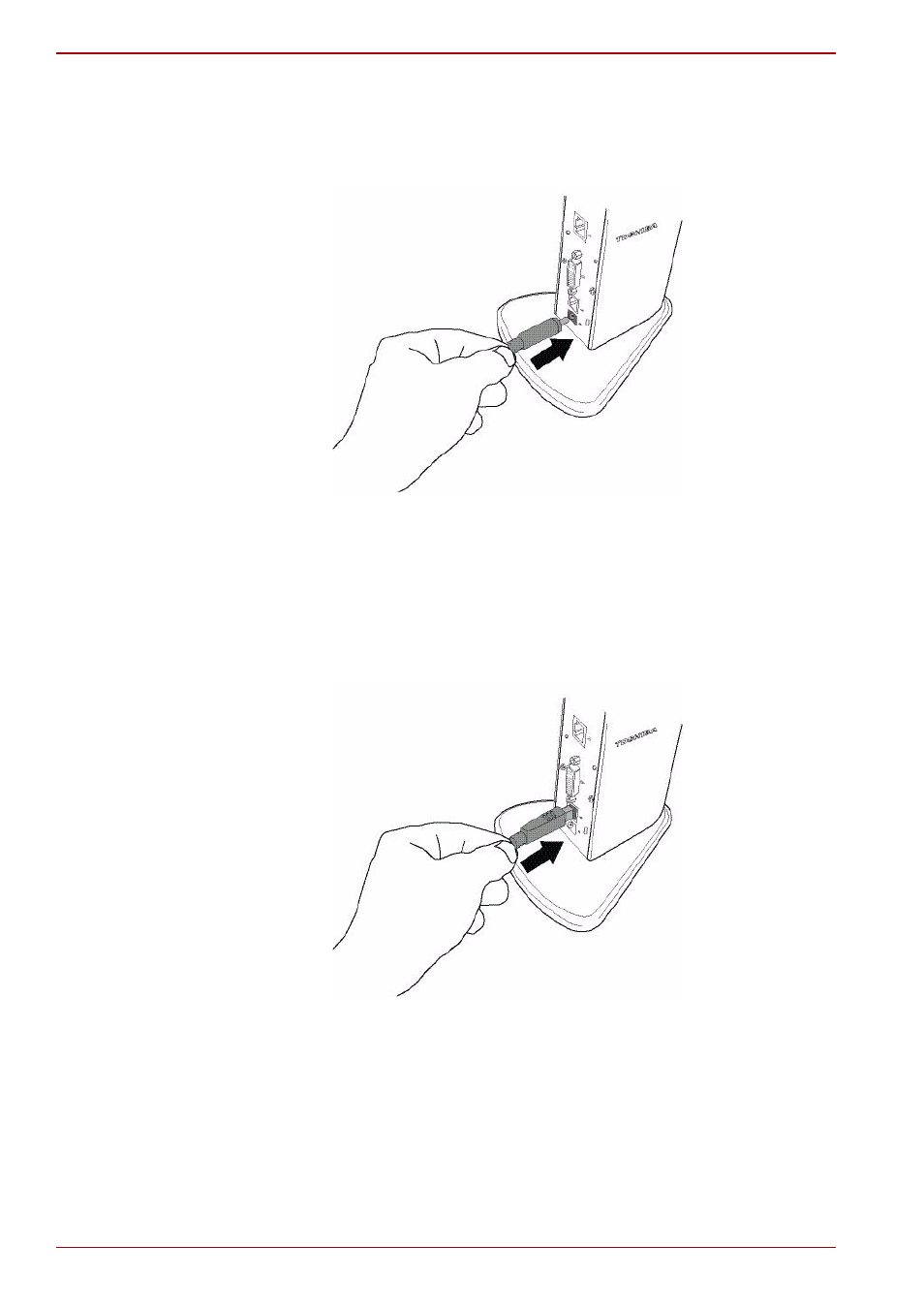

(Sample Illustration) Connecting the AC adaptor cord to the dynadock

2. Connect the AC Power Adaptor with the AC power cord/cable, and then

connect the AC power cord/cable to a live electrical outlet. The power

indicator on the front panel glows blue when the dynadock is

powered on.

3. Plug the square end of the USB cable into the USB upstream port on

the back of the dynadock.

(Sample Illustration) Connecting the USB cable to the dynadock
