Front panel

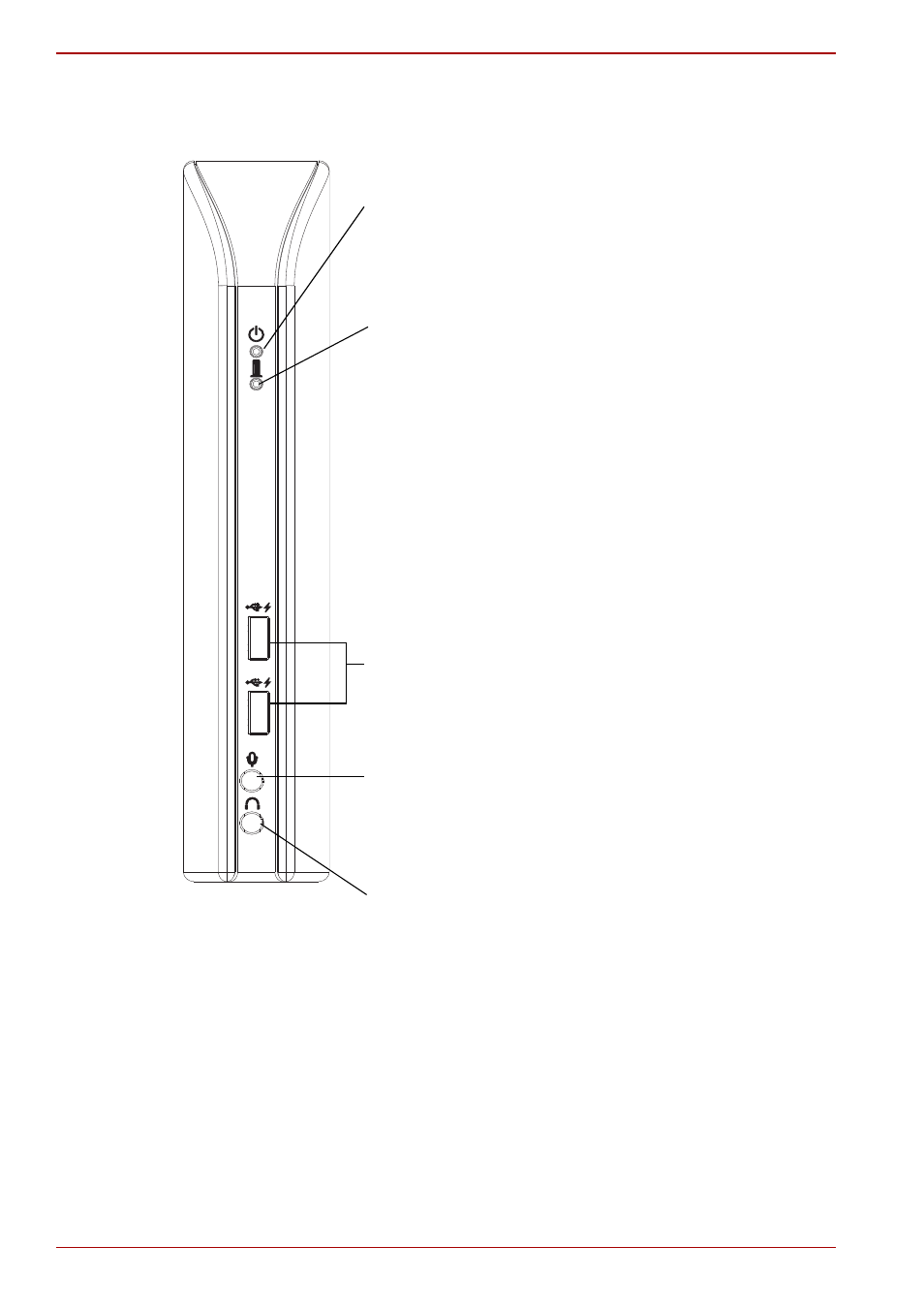

(Sample Illustration) Indicators and connectors on the front of the dynadock
DC-IN LED: Glows blue when power is being correctly
supplied from the AC power adaptor.
Status LED: Indicates the status of docking, undocking
and charging functions.
Docking: Flashes green during the docking process,
glows green when docked.
Undocking: Flashes orange during the undocking
process, stops flashing orange when undocked.
Charging: Glows orange when charging.
2 USB 2.0 powered ports: Connects and charges select
USB peripherals (for example, PDA, MP3 players and cell
phones) even when undocked.
3.5 mm mono microphone input port: For connection to
an external mono microphone.
3.5 mm stereo headphone output port: For connection
to stereo headphones.
