Removing the optical media drive

Inserting a module

Insert the Ultra Slim Bay HDD adaptor as described below.
1. Insert the Ultra Slim Bay HDD adaptor in the computer as shown below

and press until the ejector clicks.

2. If you want to lock the Ultra Slim Bay HDD adaptor, set the Ultra Slim

Bay lock screw in the hole for the lock position (

➁). The lock screw is

inserted in the unlock position (

➀) at the time of purchasing.

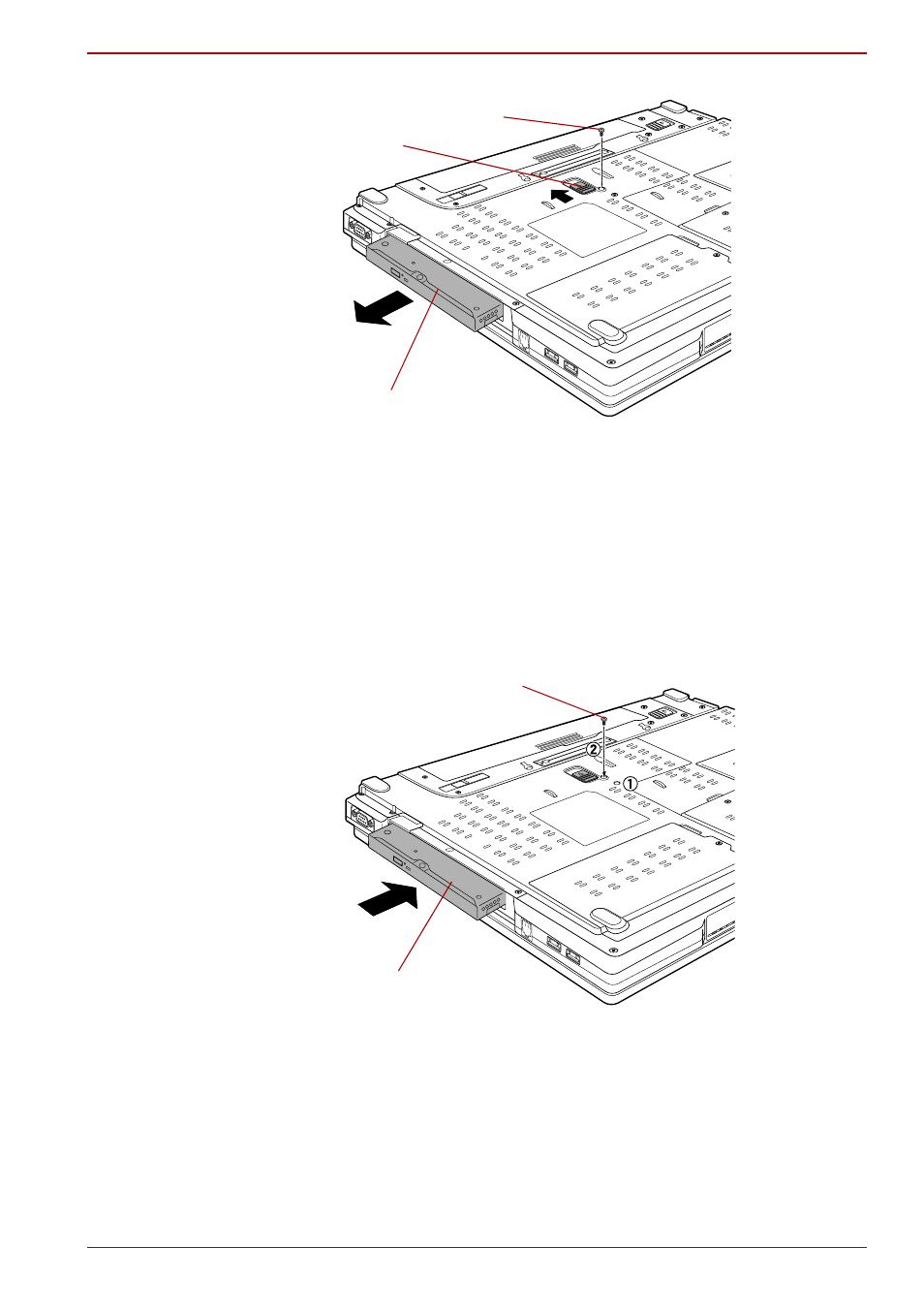

Inserting the Ultra Slim Bay HDD adaptor

Lock screw

Optical media drive

Ultra Slim Bay latch

Ultra Slim Bay HDD adaptor

Lock screw
