Left side

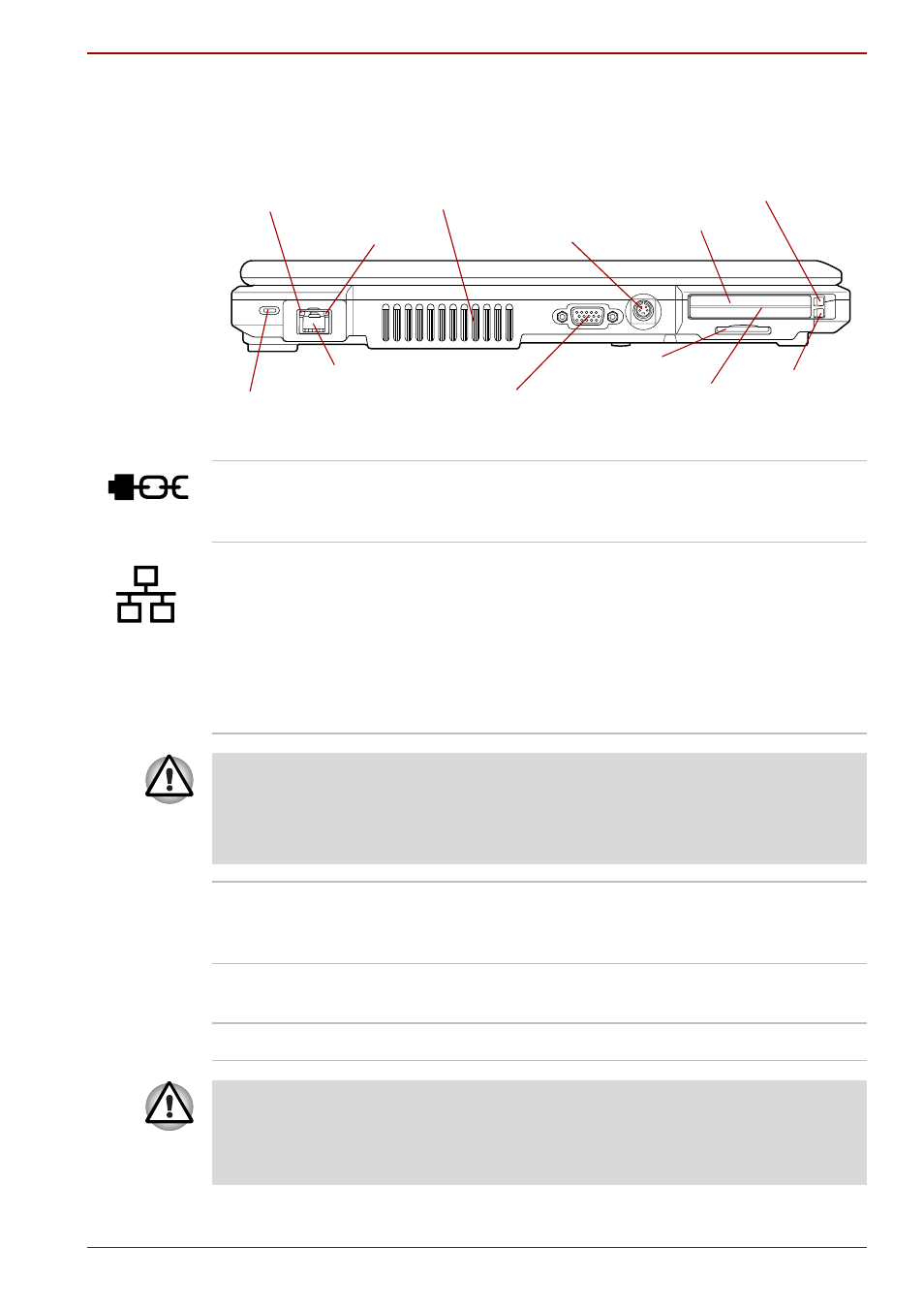

The following figure shows the computer’s left side.
The left side of the computer
Cooling vents
Security lock slot
PC card slot
SD card slot
PC card eject
button
LAN active indicator
(orange)
LAN jack
Link indicator (green)
ExpressCard slot
ExpressCard eject button
Video-out jack
External monitor port
Security lock slot An optional security cable attaches to this slot.
The security cable anchors your computer to a
desk or other large object to deter theft.
LAN jack This jack lets you connect to a LAN. The adaptor
has built-in support for Ethernet LAN
(10 megabits per second, 10BASE-T), Fast
Ethernet LAN (100 megabits per second,
100BASE-TX) and Gigabit Ethernet LAN
(1000 megabits per second, 1000BASE-T).
The LAN has two indicators. Refer to Chapter 4,
Operating Basics , for details.
■ Do not connect any cable other than a LAN cable to the LAN jack.
It could cause damage or malfunction.
■ Do not connect the LAN cable to a power supply. It could cause
damage or malfunction.
Link indicator
(green)
This indicator glows green when the computer is
connected to a LAN and the LAN is functioning
properly.
LAN active indicator
(orange)
This indicator glows orange when data is being
exchanged between the computer and the LAN.
Cooling vents Cooling vents help CPU keep from overheating.
Do not block the cooling vents. Never allow metal objects, such as screws,
staples and paper clips, to enter the PC or keyboard. Foreign metal objects
can create a short circuit, which can cause PC damage and fire, possibly
resulting in serious injury.
