Switch Characteristics
1

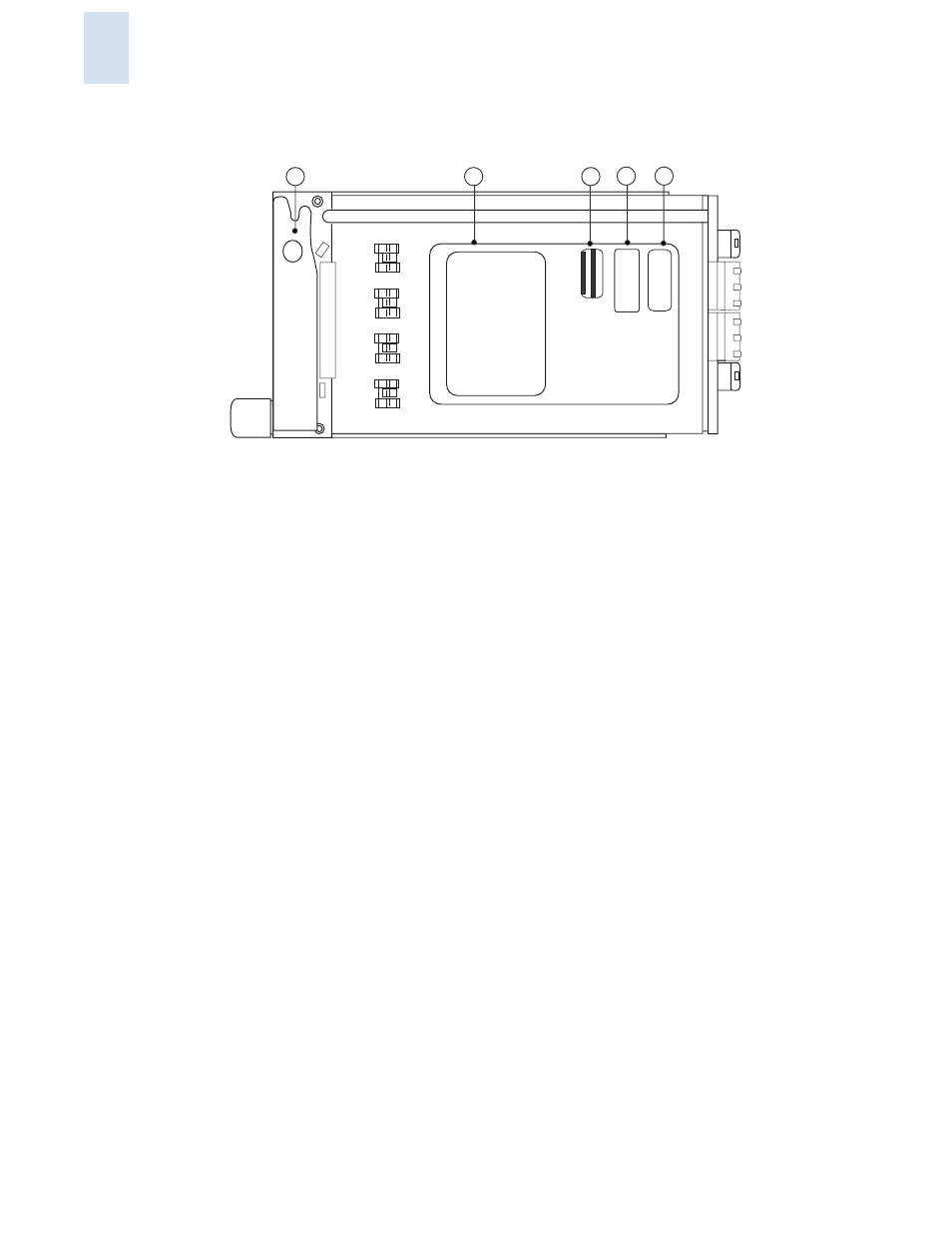

Figure 1-4 Insertion Arm Label
Figure 1-5 Detail, Labeling
1 Supplier serial label (under insertion arm)
2 Compliance label
3 Service tag
4 PPID label
5 Service tag and PPID label
SFPs
The SilkWorm 4016 was designed to work with small form-factor pluggable (SFP) optical modules and
ships with up to six SWL SFPs. SFPs provide optical connections to external devices for both SWL and
LWL connections. SFPs are replaced using a new pluggable unit rather than having to replace the
switch. Refer to the manufacturer’s instructions when installing SFPs.
“Removing and Replacing the SilkWorm 4016” on page 4-5 provides details about removing SFPs from
the SilkWorm 4016.
For a complete list of SFPs and other interoperable hardware, visit the Brocade Connect Web site at:
http://www.brocadeconnect.com
and follow the links to the latest compatibility matrix. From the main page, select Technical Resource
Center, then Documentation Library. Finally, choose Compatibility and Scalability Information.
