BT DF450 - Manual (Page 2)

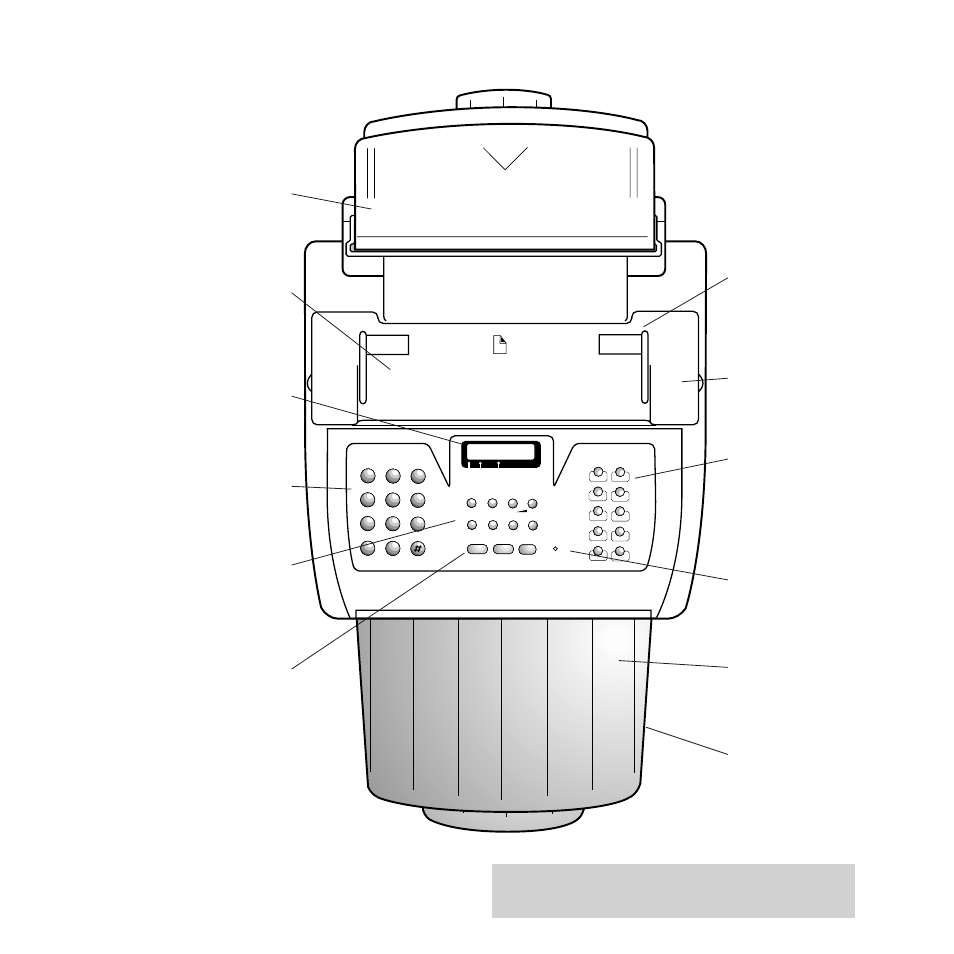

Top view
❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍
❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍
❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍
A4 I
STD FINE HALF TONE 1 2 3
4 5 6
7 8 9
0 ✱
P - TB SYMBOLS
FUNCTION
QUICKDIAL
CLEAR
LAST TX
RX MODE RESOL. CONTRAST
ᮤ ᮣ
- +
EXTERNAL HOLD
A - a REDIAL PAUSE 2. TONE
MONITOR START STOP
1
ABC DEF
GHI JKL MNO
PRS TUV WXY
QZ
2
3 4
5 6
7 8
9 10 ERROR
DF 450
Adjustable paper
guide
. Place documents
face down to ensure
straight feeding into the
machine for fax
transmission.
Printer cover . Open to
install the print cartridge.
One touch memory
buttons
. Use to dial your
most frequently used
numbers with one touch.
Error indication light .
Comes on when there is a
fault in fax transmission
or reception.
Sent document tray .
Holds the original copies
of documents that have
been faxed or copied.
Received document
tray
(beneath sent
document tray). Holds
received faxes and copies
of documents.
Automatic sheet
feeder
. Holds up to 70
A4 sheets of plain paper
for copies and incoming
faxes.
Automatic document
feeder
. Holds up to 10
sheets to be faxed or
copied.
LCD display . Shows
dialled numbers, time
and date and function
information.
Keypad . Press to dial fax
or phone numbers and to
input names and numbers
into the memory.
Control panel . Use to
access the features of the
DF450. Seven buttons
have dual functions.
Monitor button . Use for
making telephone calls
when you have a
telephone connected.
