Pioneer VSX-820-K - Manual (Page 25)

Connecting your equipment 03
25
En
English
Français
Deutsch
Nederlands
Italiano
Español

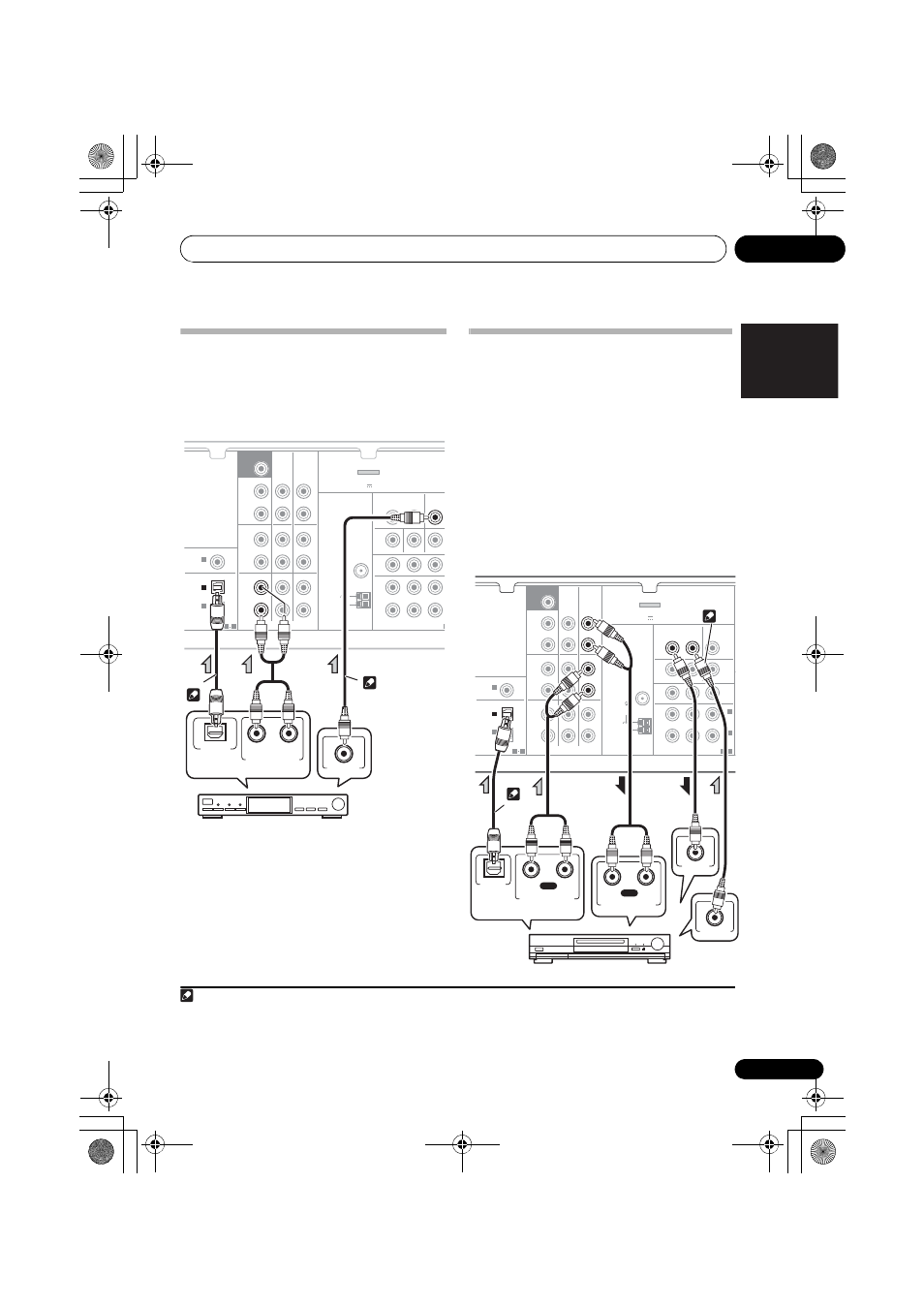

Connecting a satellite receiver
or other digital set-top box
Satellite and cable receivers, and terrestrial
digital TV tuners are all examples of so-called
‘set-top boxes’.
12
Connecting an HDD/DVD
recorder, VCR and other video
sources
This receiver has audio/video inputs and
outputs suitable for connecting analog or
digital video recorders, including HDD/DVD
recorders and VCRs.
• Only the signals that are input to the
VIDEO IN terminal can be output from the
VIDEO OUT terminal.
• Audio signals that are input through the
digital terminal will not be output from the
analog terminal.
Note
1 If the connection was made using an optical cable, you’ll need to tell the receiver which digital input you connected the set-
top box or video component to (see Choosing the input signal on page 41).
2 If the set-top box or video component also has an HDMI or a component video output, you can connect this too. See Connecting
using HDMI on page 23 or Using the component video jacks on page 26 for more on this.
SURR BACK /
FRONT
HEIGHT
L
(Single)
R
R
L
IN
R
L
IN
IN
OUT
IN
CD
TV/SAT DVD BD
DVR/VCR
MONITOR OUT
P R P B Y
DVD IN BD IN
M
COMPONENT VIDEO
TV/SAT
IN
DVR/VCR
OUT IN
CD-R/TAPE
DVR/VCR CD-R/TAPE
PRE OUT
COAXIAL
OPTICAL
(CD)
IN
ASSIGNABLE
ASSIGNABLE
1
(CD-R/TAPE)
IN
AUDIO
ADAPTER PORT
VIDEO
(OUTPUT 5 V 100 mA MAX)
1
1 2
ASSIGNA
IN 2
SUBWOOFER
PRE OUT
ANTENNA
FM
UNBAL
75
AM
LOOP
DIGITAL AUDIO OUT
OPTICAL R L
ANALOG AUDIO OUT
VIDEO OUT Select one
STB
2
1
MONITOR
OUT
SURR BACK /
FRONT
HEIGHT
L
(Single)
R
R
L
IN
R
L
IN
IN
OUT
IN
CD
TV/SAT DVD BD
DVR/VCR
MONITOR OUT
P R P B Y
DVD IN BD IN
OUT
MONITOR
COMPONENT VIDEO
TV/SAT
IN
DVR/VCR
OUT IN
CD-R/TAPE
DVR/VCR CD-R/TAPE
PRE OUT
COAXIAL
OPTICAL
(CD)
IN
ASSIGNABLE
ASSIGNABLE
1
(CD-R/TAPE)
IN
AUDIO
ADAPTER PORT
VIDEO
(OUTPUT 5 V 100 mA MAX)
1
(BD)
IN 1
(DVD)
IN 2
1 2
ASSIGNABLE
1 2
IN 2
SUBWOOFER
PRE OUT
ANTENNA
FM
UNBAL
75
AM
LOOP
PLAY R L
DIGITAL
AUDIO OUT ANALOG AUDIO OUT
R L
ANALOG AUDIO IN
OPTICAL
VIDEO OUT
VIDEO IN
REC
Select one
DVR, VCR, LD player, etc.
1
2
