Connecting your equipment
03
22
En
Component video cables
Use component video cables to get the best
possible color reproduction of your video
source. The color signal of the TV is divided into
the luminance (
Y) signal and the color (P
B
and
P
R
) signals and then output. In this way,
interference between the signals is avoided.

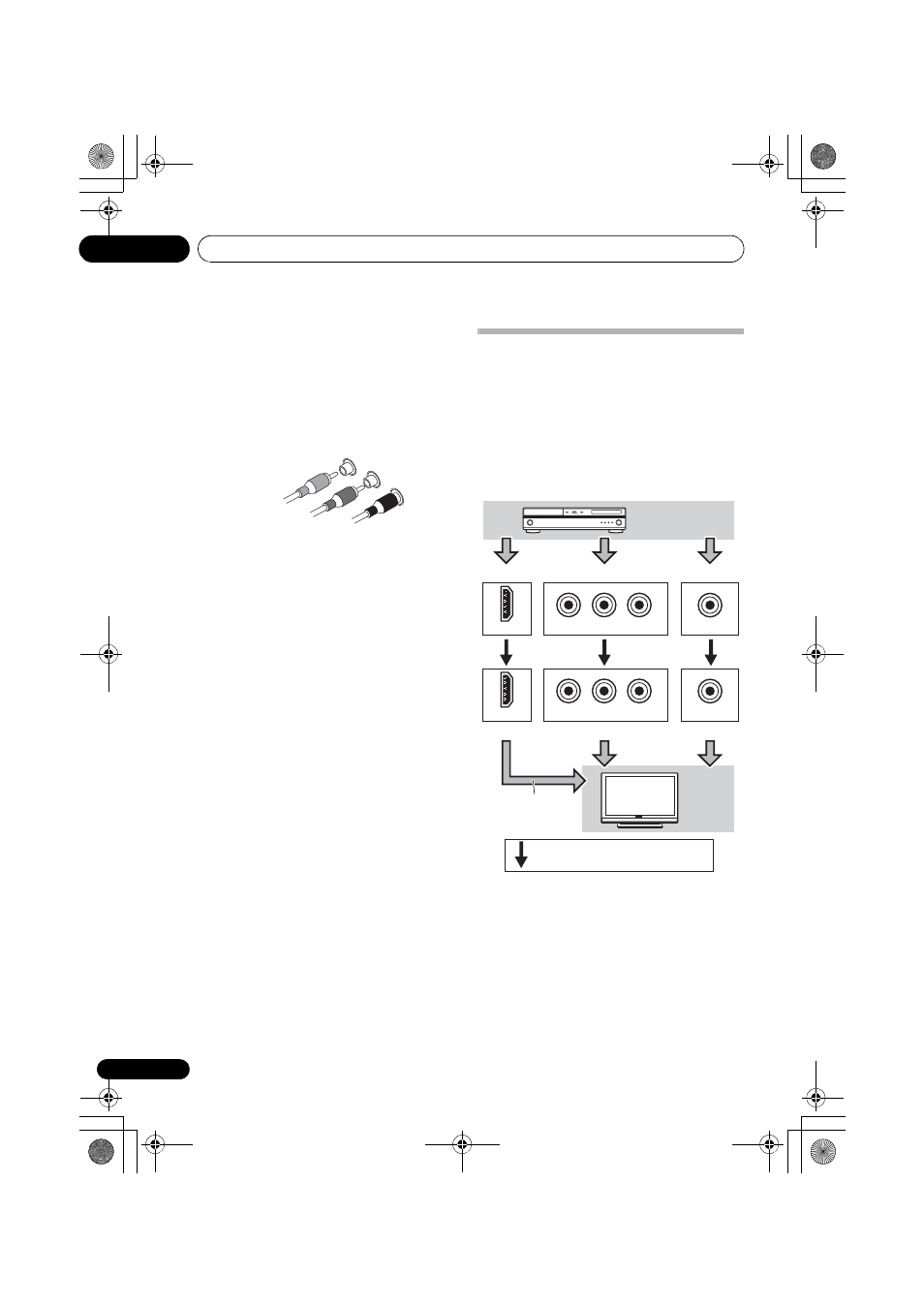

About video outputs connection
This receiver is not loaded with a video
converter. When you use component video
cables or HDMI cables for connecting to the
input device, the same cables should be used
for connecting to the TV.
The signals input from the analog (composite
and component) video inputs of this unit will
not be output from the
HDMI OUT.
Green (Y)
Blue (P
B
)
Red (P
R
)
Component video cables
VIDEO IN
P
R
P
B
Y
COMPONENT VIDEO IN
HDMI IN
MONITOR OUT
P
R
P
B
Y
HDMI OUT
COMPONENT VIDEO MONITOR OUT
Terminal for connection with source device
Terminal for connection with TV monitor
Playback
component
TV
The OSD will not
appear.
Video signals can be output.
