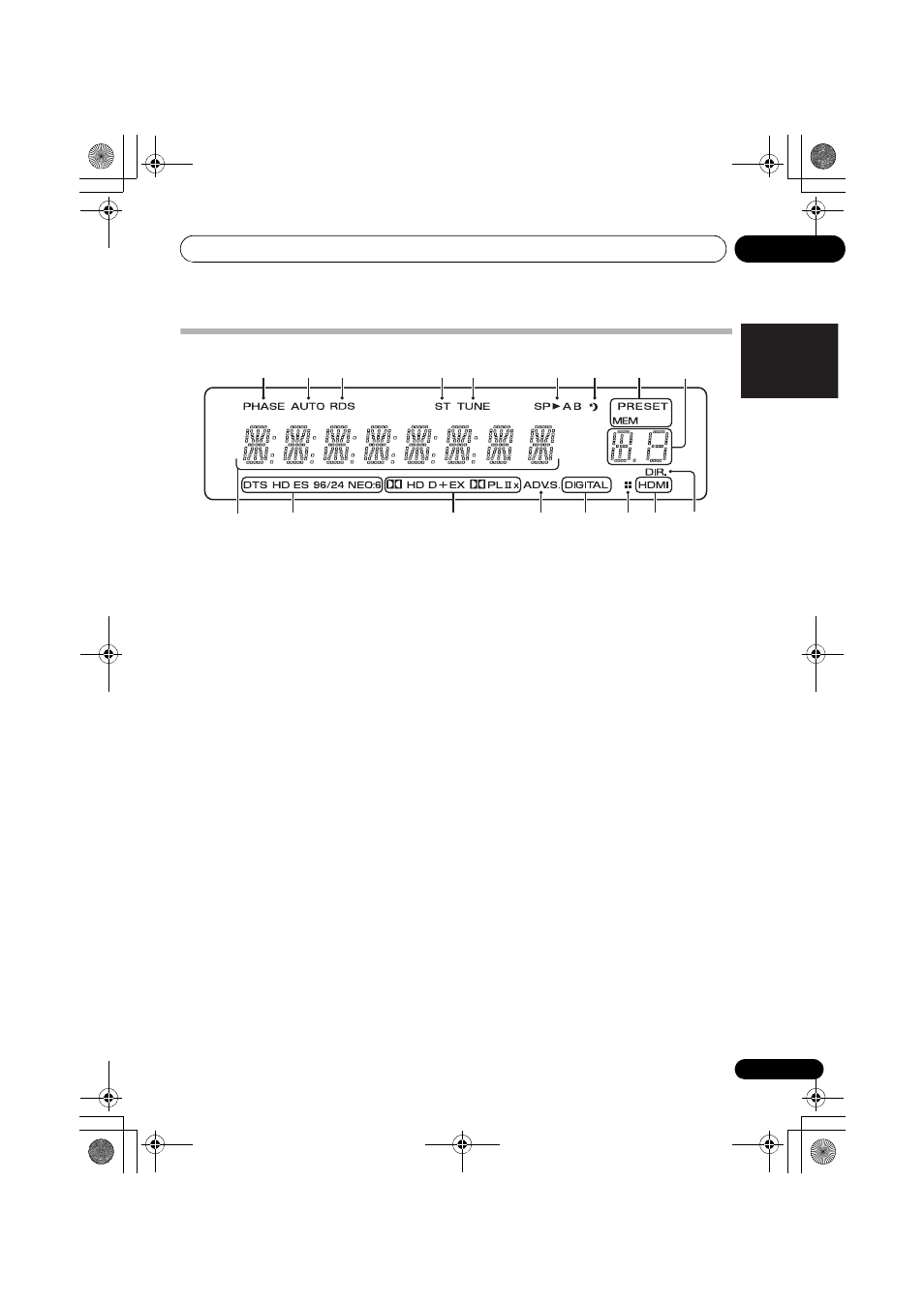

Display
1 PHASE
Lights when the Phase Control is switched on
(page 36).
2 AUTO
Lights when the Auto Surround feature is
switched on (see Auto playback on page 33).
3 RDS
Lights when an RDS broadcast is received
(page 50).
4 ST
Lights when a stereo FM broadcast is being
received in auto stereo mode.
5 TUNE
Lights when a normal broadcast channel is
being received.
6 Speaker indicators
Lights to indicate the current speaker system,
A and/or B (page 20).
7 Sleep timer indicator
Lights when the receiver is in sleep mode
(page 13).
8 Tuner preset indicators
PRESET
Shows when a preset radio station is
registered or called.
MEM
Blinks when a radio station is registered.
9 PRESET information or input signal
indicator
Shows the preset number of the tuner or the
input signal type, etc.
10 Character display
Displays various system information.
11 DTS indicators
DTS
Lights when a source with DTS encoded
audio signals is detected.
HD
Lights when a source with DTS-EXPRESS
or DTS-HD encoded audio signals is
detected.
ES
Lights to indicate DTS-ES decoding.
96/24
Lights when a source with DTS 96/24
encoded audio signals is detected.
NEO:6
When one of the NEO:6 modes of the
receiver is on, this lights to indicate NEO:6
processing (page 33).
12 Dolby Digital indicators
2D
Lights when a Dolby Digital encoded signal
is detected.
