Operating Pioneer Flat Screen TV and TVs
First, refer to Setting up the remote to control your TV on page 49 for
information about setting up your TV’s presets. Note that certain
buttons may not work with some TVs.
TELETEXT-related buttons can only be used with Pioneer Flat Screen
TVs.

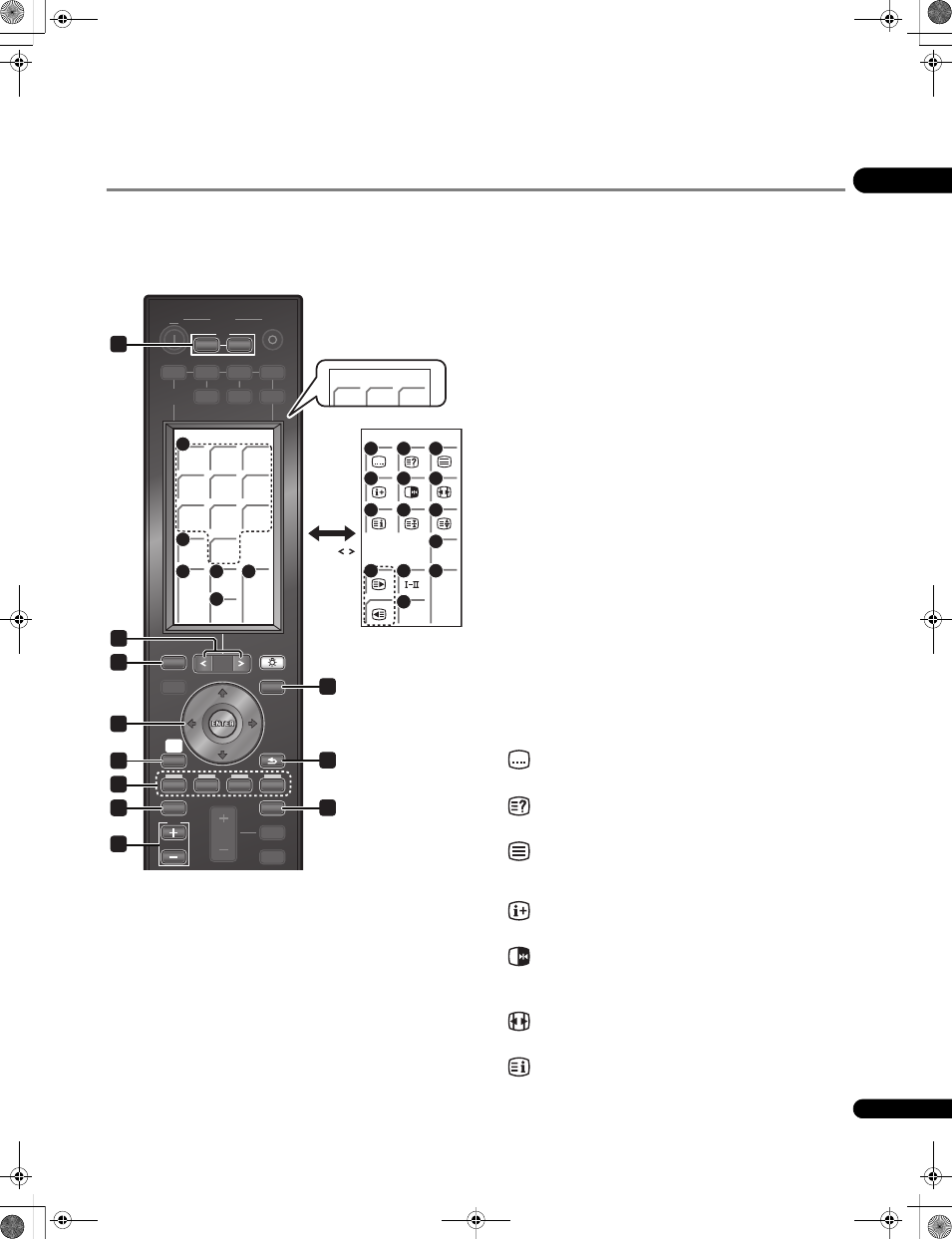

1 TV INPUT
Select an input source of the TV.
TV 
Switches the TV to On/Standby.
2 PAGE
Switch between pages on the LCD touch screen when multiple
pages are present.
3 DISPLAY
Displays the channel information.
4 TOOLS
Displays the TOOLS Menu.
5 /// (cursor buttons) and ENTER
Selects a desired item on the setting screen. Press ENTER to
executes a command.
6 HOME MENU
Displays the HOME MENU screen.
7 RETURN
Restores the previous menu screen.
8 Color (RED/GREEN/YELLOW/BLUE) buttons
Controls a BD player for HDMI Control functions only.
9 GUIDE
Displays the Electronic Program Guide in DTV/SAT (Satellite) input
mode.
10 INFO
Displays the channel information.
11 TV VOL +/–
Use to adjust the volume of the TV.
 LCD touch screen
12 Number buttons
TV/External input mode: Selects a channel.
Teletext mode: Selects a page.
13 TV/DTV (For Pioneer Flat Screen TV only)
Switches the mode among TV and DTV.
14 P +/–
TV/External input mode: Selects a channel.
15 INPUT
Selects an input source of the Flat Screen TV.
16 MUTE
Mutes the sound.
17 TV VOL +/–
Sets the volume.
The following only apply to Pioneer Flat Screen TVs:
18
Jumps to Teletext subtitle page.
19
Displays hidden characters.
20
Selects the Teletext mode (all TV image, all TEXT image, TV/TEXT
image).
21
Displays the channel information.
22
TV/External input mode: Freezes a frame from a moving image.
Press again to cancel the function.
23
Selects the screen size.
24
Displays an Index page for the CEEFAX/FLOF format. Displays a TOP
Over View page for the TOP format.
ON SYSTEM
