Chapter 2
Connecting up

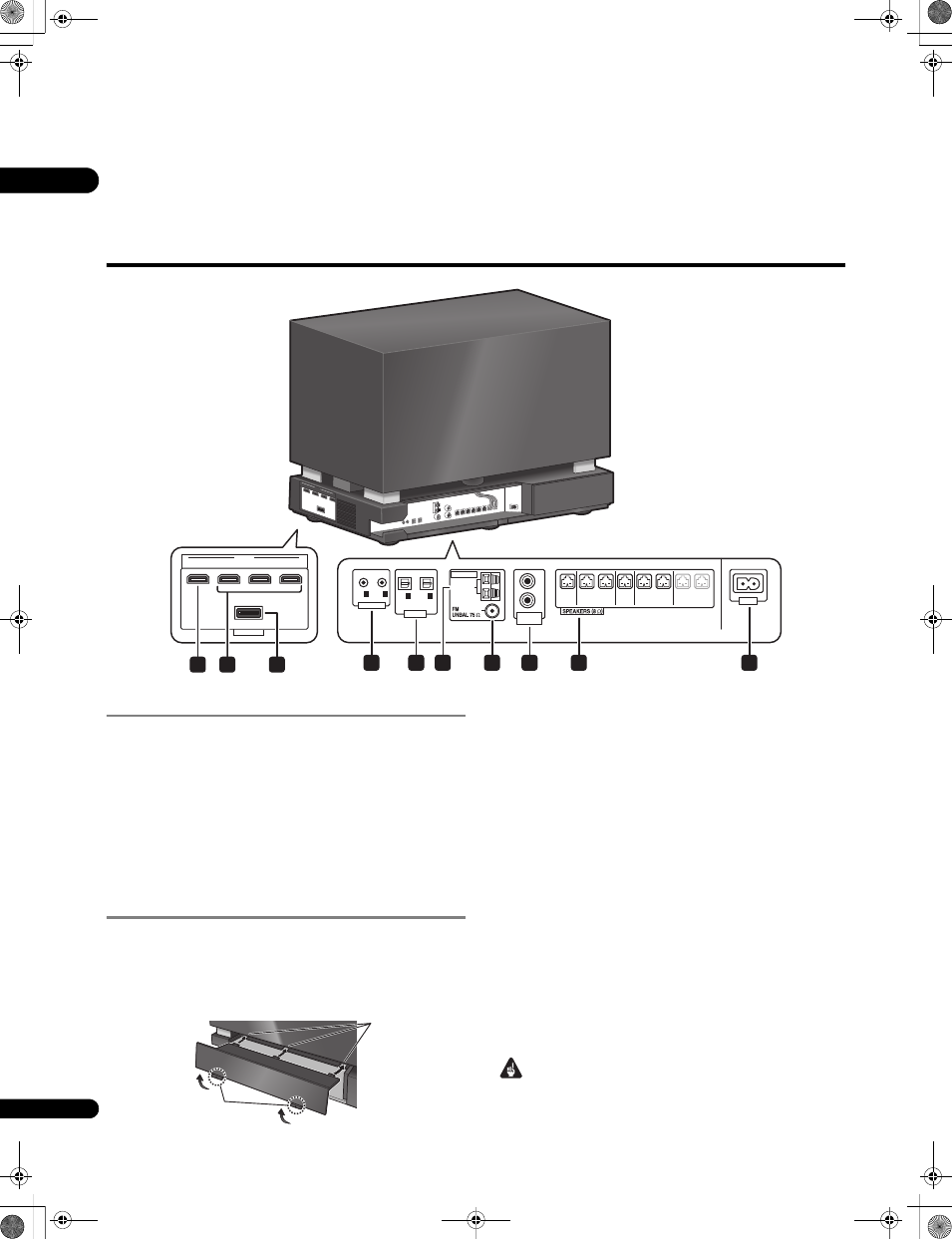

Receiver subwoofer
Rear panel
1 HDMI OUT terminal
Connect to a television that has an HDMI terminal.
2 HDMI IN terminals (x3)
Use high-quality audio/video connection with compatible HDMI
devices. Connect the included Blu-ray disc player to
HDMI IN 1.
To select this input, choose HDMI 1 to HDMI 3.
3 SYSTEM connector
Connect to the display unit.
Side panel
• There is a cover over the connectors on the side panel.
A. When making connections, lift the two hooks and remove the
cover.
B. Once connections are finished, line up the three positions
and place the cover back in its original position.
4 CONTROL OUT jacks (x2)
Connect the supplied Blu-ray disc player to the CONTROL OUT 1
jack with the supplied control cable. You can connect another
component to the other Control Out jack.
5 DIGITAL OPTICAL IN jacks (x2)
To listen to optical digital audio, change the input to Digital 1 or
Digital 2.
When the digital output jacks of your TV are connected to these
jacks, set ‘
TV Input’ (see page 40).
6 AM LOOP antenna terminal
7 FM antenna socket
8 ANALOG AUDIO IN jacks
Handle sound from an external component by using stereo audio
code. To listen to analog audio, change the input to
Analog.
When the analog output jacks of your TV are connected to these
jacks, set ‘
TV Input’ (see page 40).
9 SPEAKERS terminals
Match the colors of the speaker cords to their respective
connectors.
10 AC IN – Power inlet
Important
• You must connect the supplied Blu-ray disc player with a control
cable. If not, the Blu-ray disc player may not operate properly.
FRONT
R
R
L
R L L R L
AM LOOP
FRONT CENTER SURROUND SUBWOOFER OPTICAL
IN 1 IN 2 OUT 1 OUT 2
HDMI
OUT IN 3
SYSTEM
IN 2 IN 1
AC IN
ANALOG
AUDIO IN
ANTENNA
DIGITAL
CONTROL
1 4 5 8 9 10 7 6 3 2
HDMI OUT IN 3
SYSTEM
IN 2 IN 1
Rear panel
Side panel
A
B
