Displays & Controls
~ CHARACTER display
Shows the radio frequency or function (DVD/LD, CD,
etc.) receiver is using .
! 2 PRO LOGIC indicator
When the 2/DTS mode of the receiver is on, this
lights to indicate playback of a two channel source.
@ DNR indicator (VSX-D810S only)
Lights when the digital noise reduction is on. Use to
reduce extraneous noise. It can be used with any
sound mode.
# DSP indicator
Lights when any “Advanced Theater” or “DSP” mode
is selected.
$ MIDNIGHT indicator
Lights when MIDNIGHT listening mode is in use.
TV
TVFUNC
MENU
VOLUME
MASTER VOLUME
TV CONTROL
AV PRE-PROGRAMMED AND LEARNING
REMOTE CONTROL UNIT
CHANNEL
ENTER
DISC
MPX
DISPLAY
RF ATT
D.ACCESS
ST
TUNE
TUNE
ST
CLASS
ATT
BAND
/DTS
DSP
TEST TONE
CH SELECT
CH LEVEL
FUNCTION
SIGNAL SELECT
1
¡
4
¢
7
8
3
¶
EFFECT
DVD
VCR
CD-R
TV
RCV
TUN
TVC
CD
MIDNIGHT
LOUDNESS
MUTING
SETUP
FL DIMMER
MULTI CONTROL
5.1 / 7.1
RECEIVER
SOURCE
1
2
3
4
5
6
7
8
10
9
0
2
3
@
!
0
2
1
4
5
9
-
~
=
#
7
6
8
% LOUDNESS indicator
Lights when the LOUDNESS is on. Use to boost the
bass and treble at low volume.
^ TUNER indicators
MONO
:
Lights when the mono mode is set using the
MPX
button.
TUNED
:
Lights when a broadcast is being received.
STEREO
:
Lights when a stereo FM broadcast is being received
in auto stereo mode.
& MASTER VOLUME LEVEL
Shows the overall volume level. Volume level is
maintained even when the power is off. ---
dB
indicates the minimum level, and
0dB
indicates the
maximum level.

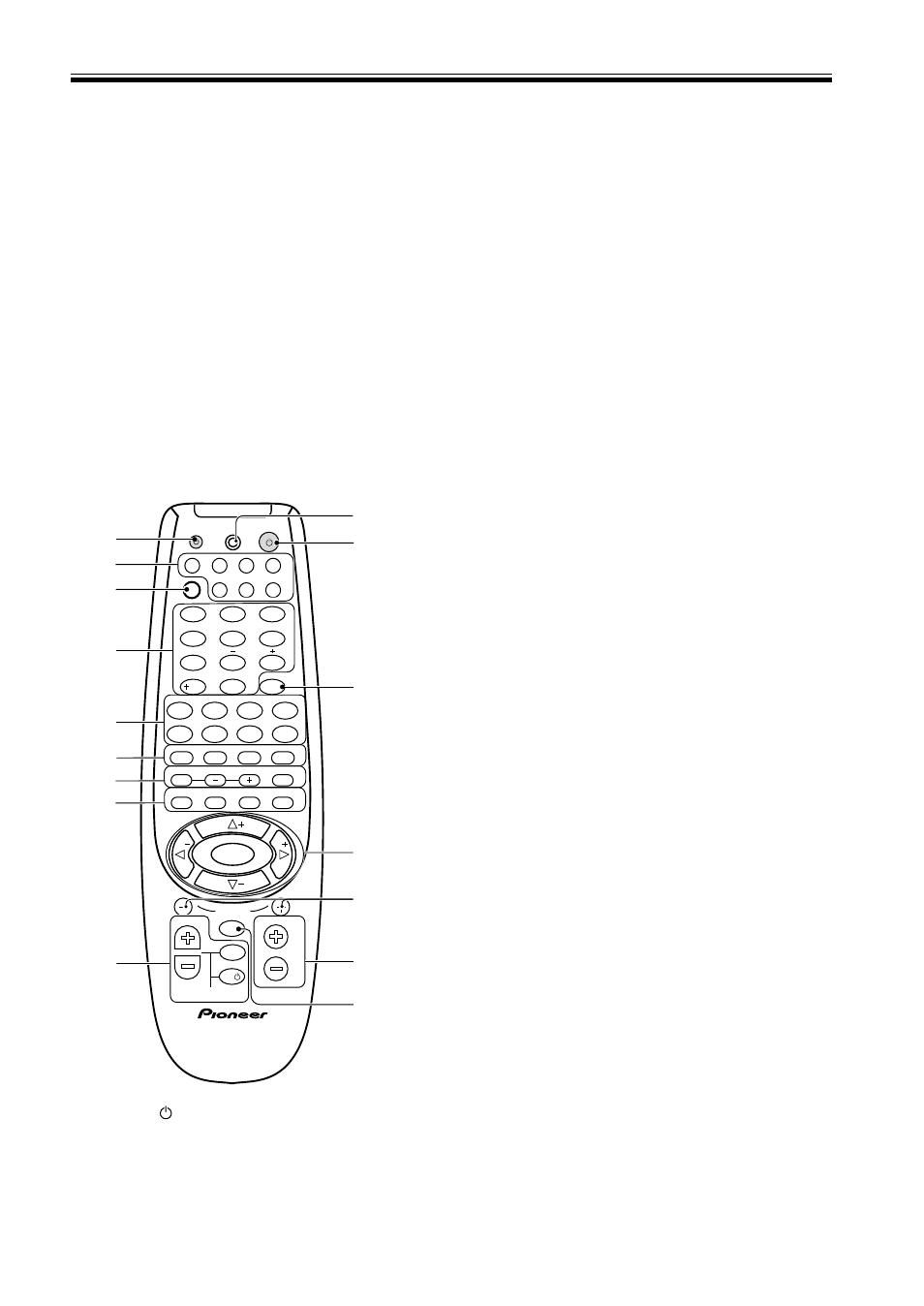

Remote Control
1 SOURCE button
Use to turn on/off other components connected to
the receiver.
2 MULTI CONTROL buttons
Use to put the receiver/remote control in the stated
mode.
For other equipment controls, see “Controlling the
Rest of Your System” on pages 37-42.
3 RCV button (see page 15)
Use this button when setting up the surround sound
for the receiver. Also press it if you want to use special
features attached to some of the number buttons, for
example MIDNIGHT, 5.1/7.1, EFFECT +/
− or ATT.
4 NUMBER/MODE buttons
Use the number buttons to select the radio frequency
in tuner DIRECT ACCESS (see page 31) mode or the
tracks in CD, DVD mode etc.
Also, buttons marked with the following names have
special functions. If you try to use one of these
functions but the display flashes it means that
function cannot be used in the current mode (for
example DSP modes cannot be used when 5.1 Ch
(VSX-D710S)/ 7.1 Ch (VSX-D810S) setting is on).
MIDNIGHT button (see page 29)
Use to put receiver in MIDNIGHT mode. To use first
press the
RCV
button then operate this button.
5.1/7.1 button (see page 29)
(VSX-D710S is 5.1 Ch/VSX-D810S is 7.1 Ch)
When the DVD/LD or DVD 5.1/7.1 Ch function is
selected each press switches the DVD/LD input
between DVD/LD and DVD 5.1/7.1 Ch. To use first
press the
RCV
button then operate this button.
ATT button
When the overload indicator lights use this button to
attenuate (lower) the level of an analog input signal
and prevent distortion. To use first press the
RCV
button then operate this button.
EFFECT +/– buttons (see page 28)
Use to add or subtract the amount of effect in
different DSP sound modes (except 6 Ch Stereo for
VSX-D810S only) or advanced listening modes.
To use first press the
RCV
button then operate these
buttons.
