Displays & Controls

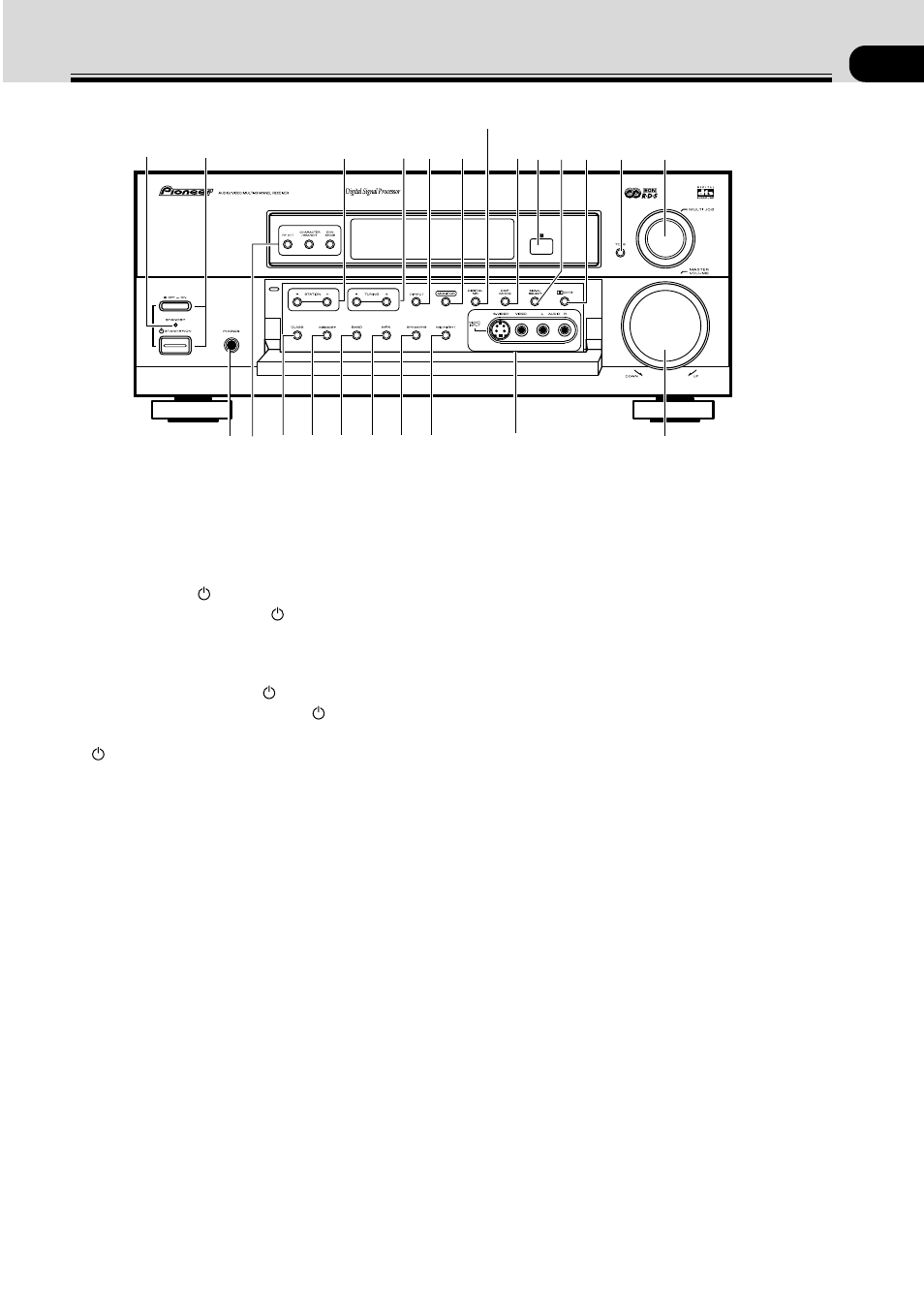

Front Panel
(VSX-D710S DVD5.1CH button)
1
N∫m-Û˘,?∫
# $ % ^ & * ( ) ! @
1 2 3 4 5
7
8 6 9 ~ = 0 -
1 STANDBY indicator
Lights when the receiver is in standby mode (note
that the receiver consumes a small amount of power
(1W) in standby mode).
2 — OFF/ _ ON (Main power) button
If the button is OFF (
—), the power of the receiver is
shut off and the STANDBY/ON button on the
receiver or the RECEIVER button on the remote
control do not function. Pressing the button again
will turn the receiver ON (
_) and the receiver enters
the standby mode. In the standby mode, you can
turn on the receiver using
STANDBY/ON button
on the receiver or the RECEIVER button on the
remote control.
STANDBY/ON button
Switches the receiver between on and standby (note
that the receiver consumes a small amount of power
(1W) in standby mode).
3 STATION (+/–) buttons (see pages 31-32)
Selects station memories when using the tuner.
4 TUNING (+/–) buttons (see pages 30-32)
Selects the frequency when using the tuner.
5 DIRECT button
Use to switch DIRECT playback on or off. This mode
bypasses the tone controls, channel levels, 2/DTS
and DSP modes for the most accurate reproduction of
a program source.
6 MONITOR button
Press to switch tape monitoring on/off.
7 DIGITAL NR button (VSX-D810S)
Switches the DIGITAL NR on or off. To reduce
extraneous noise switch on DIGITAL NR.
DVD5.1CH button (VSX-D710S) (see page 29)
On the VSX-D710S this button switche between
DVD5.1Ch input and regular DVD input.
8 DSP MODE button (see page 26, 28)
Use to switch between the various DSP modes available
(
HALL1, HALL 2, JAZZ, DANCE, THEATER1,
THEATER 2, 5/6CH STEREO [VSX-D810S only] ) and
DSP off . Use this button to create different surround
sound effects from any stereo source.
9 Remote sensor
Receives the signals from the remote control.
0 SIGNAL SELECT button (see page 27)
Use to select an analog or digital or AUTO (VSX-
D810S only) signal.
- 2/DTS button (see pages 25, 27)
Use to switch between the various 2/DTS surround
modes.
= TONE button
This button allows you to activate the BASS &
TREBLE controls. To adjust the BASS and/or TREBLE
use the MULTI JOG dial. Tone can only be used in 2
channel stereo sound mode. The tone controls have
no effect on the B speaker system.
~ MULTI JOG dial
You can use this dial for two purposes. Firstly, in
normal mode turn it to select a source component.
Secondly, use it to adjust the BASS and/or TREBLE
levels when the TONE button has been activated (as
explained above).
! MASTER VOLUME
Use to set the overall listening volume.
@ VIDEO INPUT jacks
Connect a video camera, video game system, etc. to
the
VIDEO INPUT jacks (refer to page 9).
# MIDNIGHT button (see page 29)
Use when listening to movie soundtracks at low volume.
This feature will enable you to hear quiet sounds and
not get jolted by loud or sudden sound effects.
$ SPEAKERS button
Use to switch the speaker system A
=
B
=
A+B
=
off . In B and A+B speaker modes you hear only 2 channel
stereo sound.
% MPX button (see page 30)
If there is interference or noise during a FM radio
broadcast, or the radio reception is weak, press the
MPX button to switch the receiver into mono
reception mode. This should improve the sound
quality and allow you to enjoy the broadcast.
^ BAND button (see page 30-32)
Press to select the AM or FM band.
